Datasheet J110 (ON Semiconductor) - 5

ManufacturerON Semiconductor
DescriptionJFET − General Purpose N−Channel − Depletion
Pages / Page5 / 5 — J110. PACKAGE DIMENSIONS. TO−92 (TO−226). X X. SECTION X−X. ON …
File Format / SizePDF / 111 Kb
Document LanguageEnglish

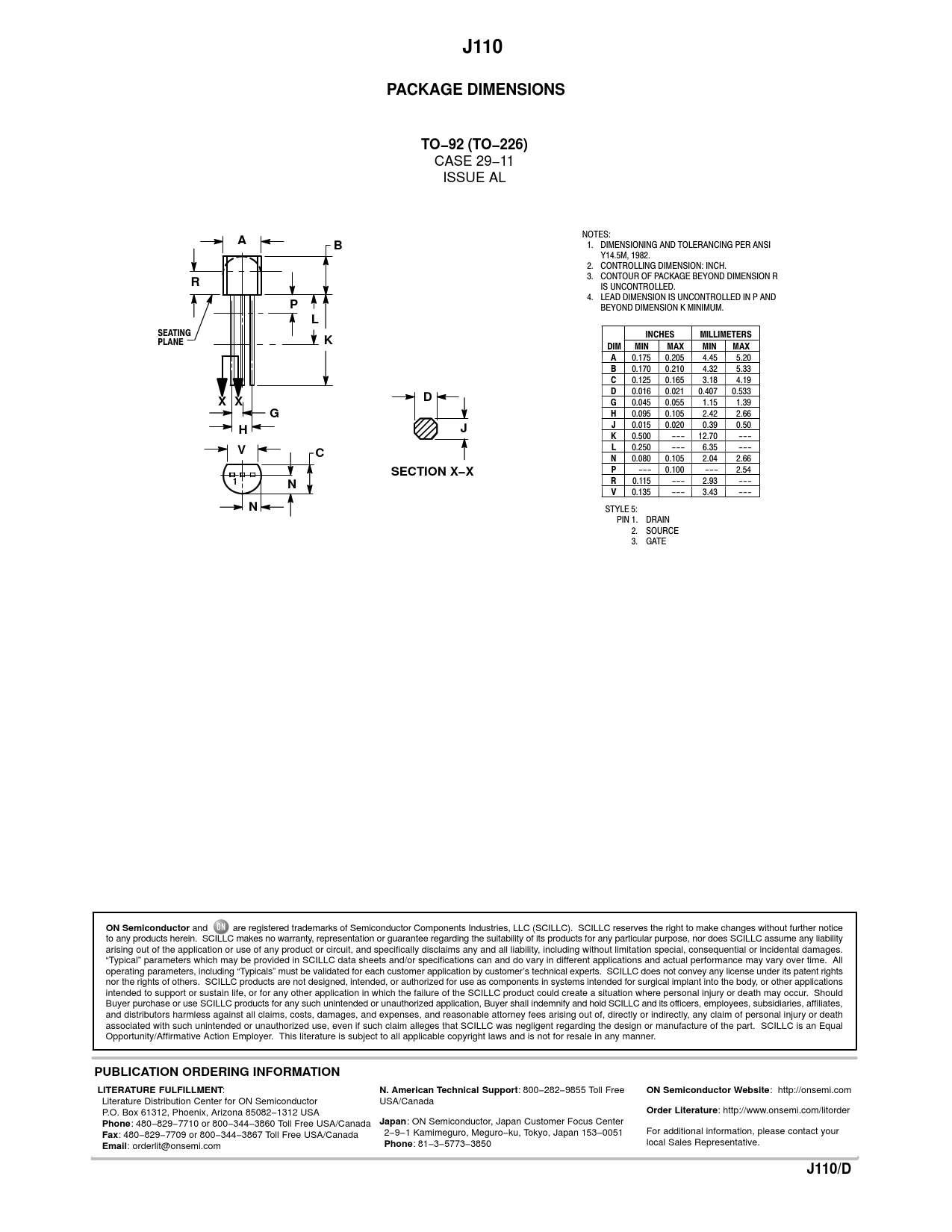

J110. PACKAGE DIMENSIONS. TO−92 (TO−226). X X. SECTION X−X. ON Semiconductor. PUBLICATION ORDERING INFORMATION

J110 PACKAGE DIMENSIONS TO−92 (TO−226) X X SECTION X−X ON Semiconductor PUBLICATION ORDERING INFORMATION

Model Line for this Datasheet

Text Version of Document

J110 PACKAGE DIMENSIONS TO−92 (TO−226)
CASE 29−11 ISSUE AL NOTES:
A B
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. CONTOUR OF PACKAGE BEYOND DIMENSION R
R
IS UNCONTROLLED. 4. LEAD DIMENSION IS UNCONTROLLED IN P AND
P
BEYOND DIMENSION K MINIMUM.
L
SEATING INCHES MILLIMETERS PLANE
K
DIM MIN MAX MIN MAX A 0.175 0.205 4.45 5.20 B 0.170 0.210 4.32 5.33 C 0.125 0.165 3.18 4.19 D 0.016 0.021 0.407 0.533
D X X
G 0.045 0.055 1.15 1.39
G
H 0.095 0.105 2.42 2.66 J 0.015 0.020 0.39 0.50
H J
K 0.500 −−− 12.70 −−−
V
L 0.250 −−− 6.35 −−−
C
N 0.080 0.105 2.04 2.66
SECTION X−X
P −−− 0.100 −−− 2.54 1
N
R 0.115 −−− 2.93 −−− V 0.135 −−− 3.43 −−−
N
STYLE 5: PIN 1. DRAIN 2. SOURCE 3. GATE
