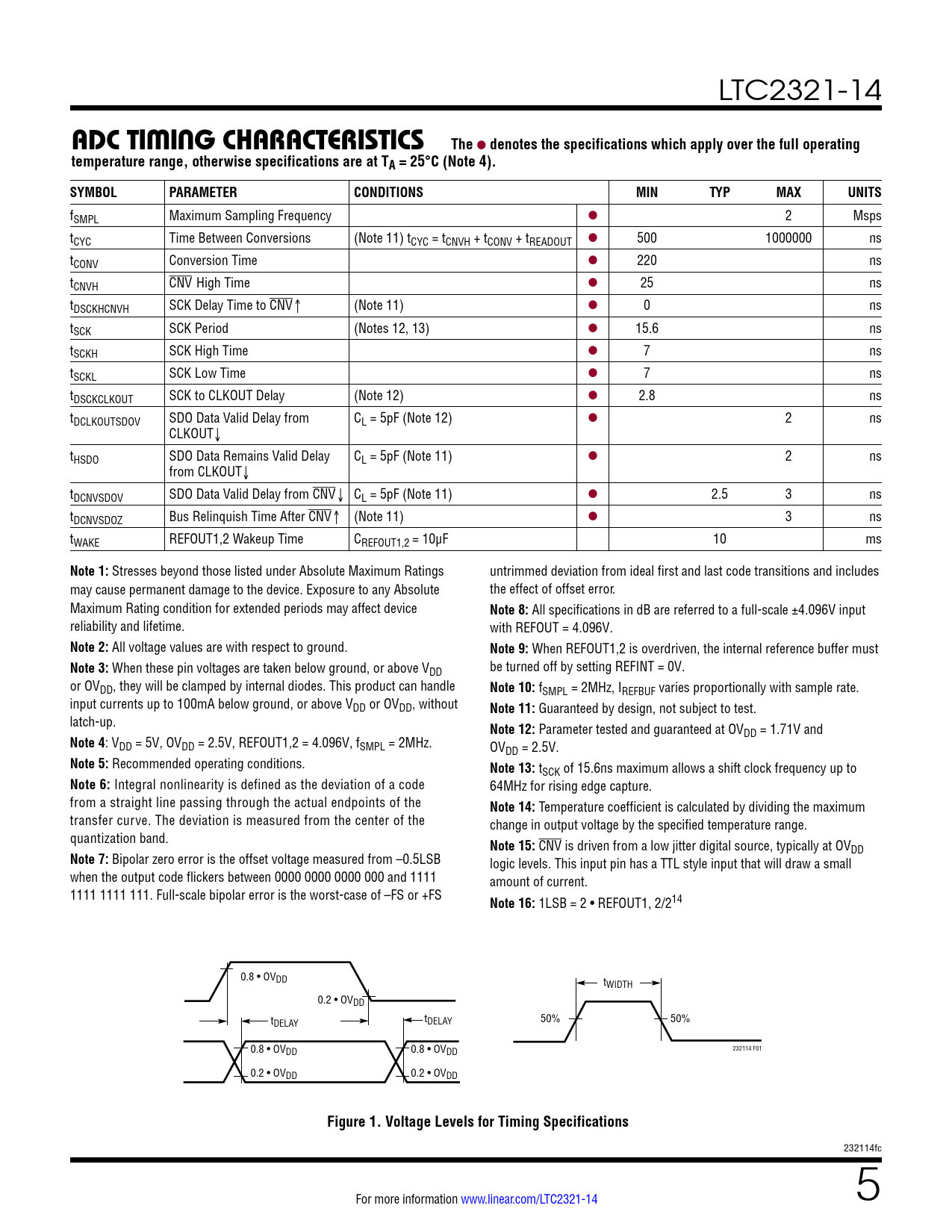

aDc TiMing characTerisTics. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC2321-14
aDc TiMing characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fSMPL Maximum Sampling Frequency l 2 Msps tCYC Time Between Conversions (Note 11) tCYC = tCNVH + tCONV + tREADOUT l 500 1000000 ns tCONV Conversion Time l 220 ns tCNVH CNV High Time l 25 ns tDSCKHCNVH SCK Delay Time to CNV↑ (Note 11) l 0 ns tSCK SCK Period (Notes 12, 13) l 15.6 ns tSCKH SCK High Time l 7 ns tSCKL SCK Low Time l 7 ns tDSCKCLKOUT SCK to CLKOUT Delay (Note 12) l 2.8 ns tDCLKOUTSDOV SDO Data Valid Delay from CL = 5pF (Note 12) l 2 ns CLKOUT↓ tHSDO SDO Data Remains Valid Delay CL = 5pF (Note 11) l 2 ns from CLKOUT↓ tDCNVSDOV SDO Data Valid Delay from CNV↓ CL = 5pF (Note 11) l 2.5 3 ns tDCNVSDOZ Bus Relinquish Time After CNV↑ (Note 11) l 3 ns tWAKE REFOUT1,2 Wakeup Time CREFOUT1,2 = 10μF 10 ms
