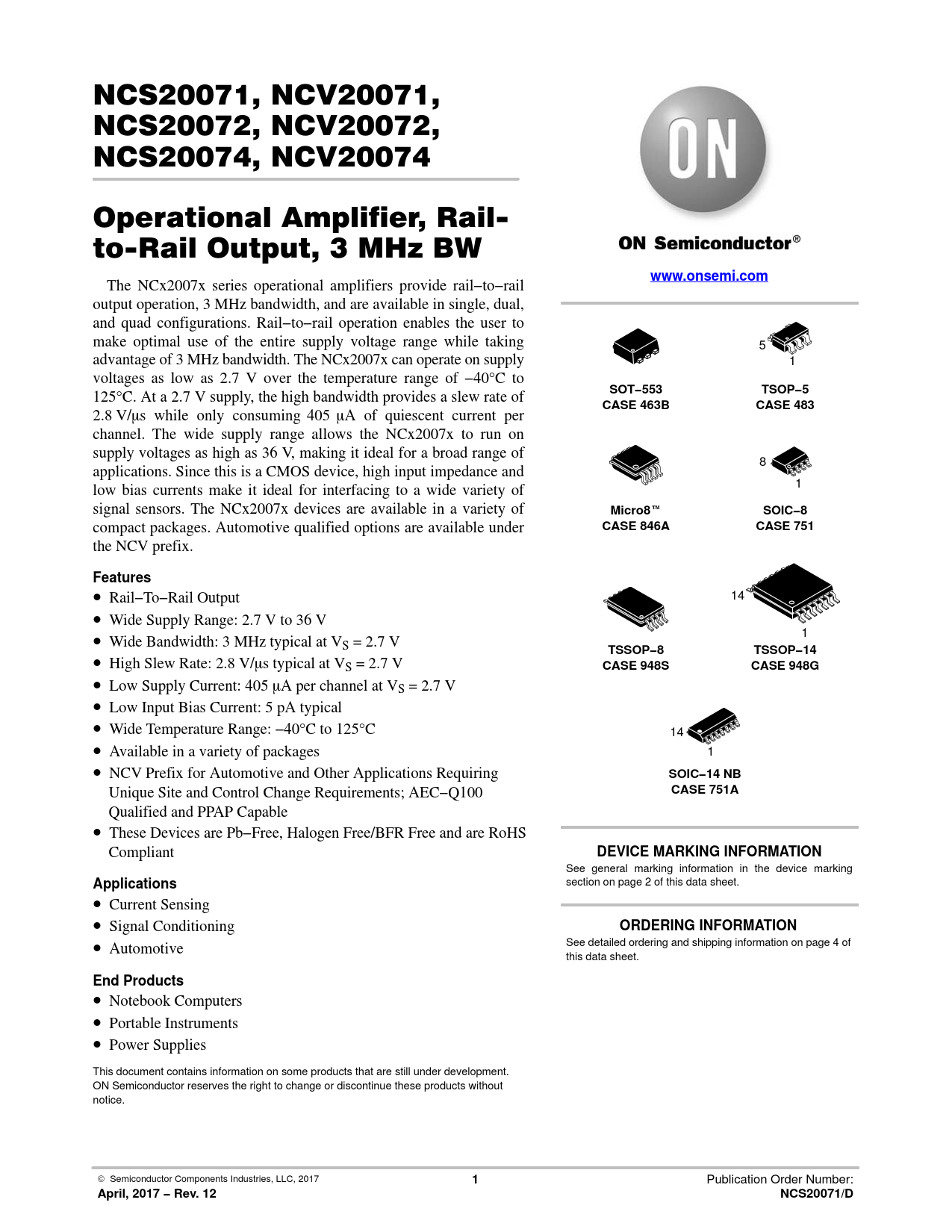

link to page 4 link to page 2 NCS20071, NCV20071, NCS20072, NCV20072, NCS20074, NCV20074 Operational Amplifier, Rail- to-Rail Output, 3 MHz BW
www.onsemi.com
The NCx2007x series operational amplifiers provide rail−to−rail output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations. Rail−to−rail operation enables the user to make optimal use of the entire supply voltage range while taking 5 advantage of 3 MHz bandwidth. The NCx2007x can operate on supply 1 voltages as low as 2.7 V over the temperature range of −40°C to
SOT−553 TSOP−5
125°C. At a 2.7 V supply, the high bandwidth provides a slew rate of
CASE 463B CASE 483
2.8 V/ms while only consuming 405 mA of quiescent current per channel. The wide supply range allows the NCx2007x to run on supply voltages as high as 36 V, making it ideal for a broad range of 8 applications. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of 1 signal sensors. The NCx2007x devices are available in a variety of
Micro8
]
SOIC−8
compact packages. Automotive qualified options are available under
CASE 846A CASE 751
the NCV prefix.
Features
• Rail−To−Rail Output 14 • Wide Supply Range: 2.7 V to 36 V • 1 Wide Bandwidth: 3 MHz typical at VS = 2.7 V •
TSSOP−8 TSSOP−14
High Slew Rate: 2.8 V/ms typical at VS = 2.7 V
CASE 948S CASE 948G
• Low Supply Current: 405 mA per channel at VS = 2.7 V • Low Input Bias Current: 5 pA typical • Wide Temperature Range: −40°C to 125°C 14 • Available in a variety of packages 1 • NCV Prefix for Automotive and Other Applications Requiring
SOIC−14 NB
Unique Site and Control Change Requirements; AEC−Q100
CASE 751A
Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
DEVICE MARKING INFORMATION
See general marking information in the device marking
Applications
section on page 2 of this data sheet. • Current Sensing • Signal Conditioning
ORDERING INFORMATION
• Automotive See detailed ordering and shipping information on page 4 of this data sheet.
End Products
• Notebook Computers • Portable Instruments • Power Supplies This document contains information on some products that are still under development. ON Semiconductor reserves the right to change or discontinue these products without notice. © Semiconductor Components Industries, LLC, 2017
1
Publication Order Number:
April, 2017 − Rev. 12 NCS20071/D
