XL6019. 180KHz 60V 5A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter
Text Version of Document

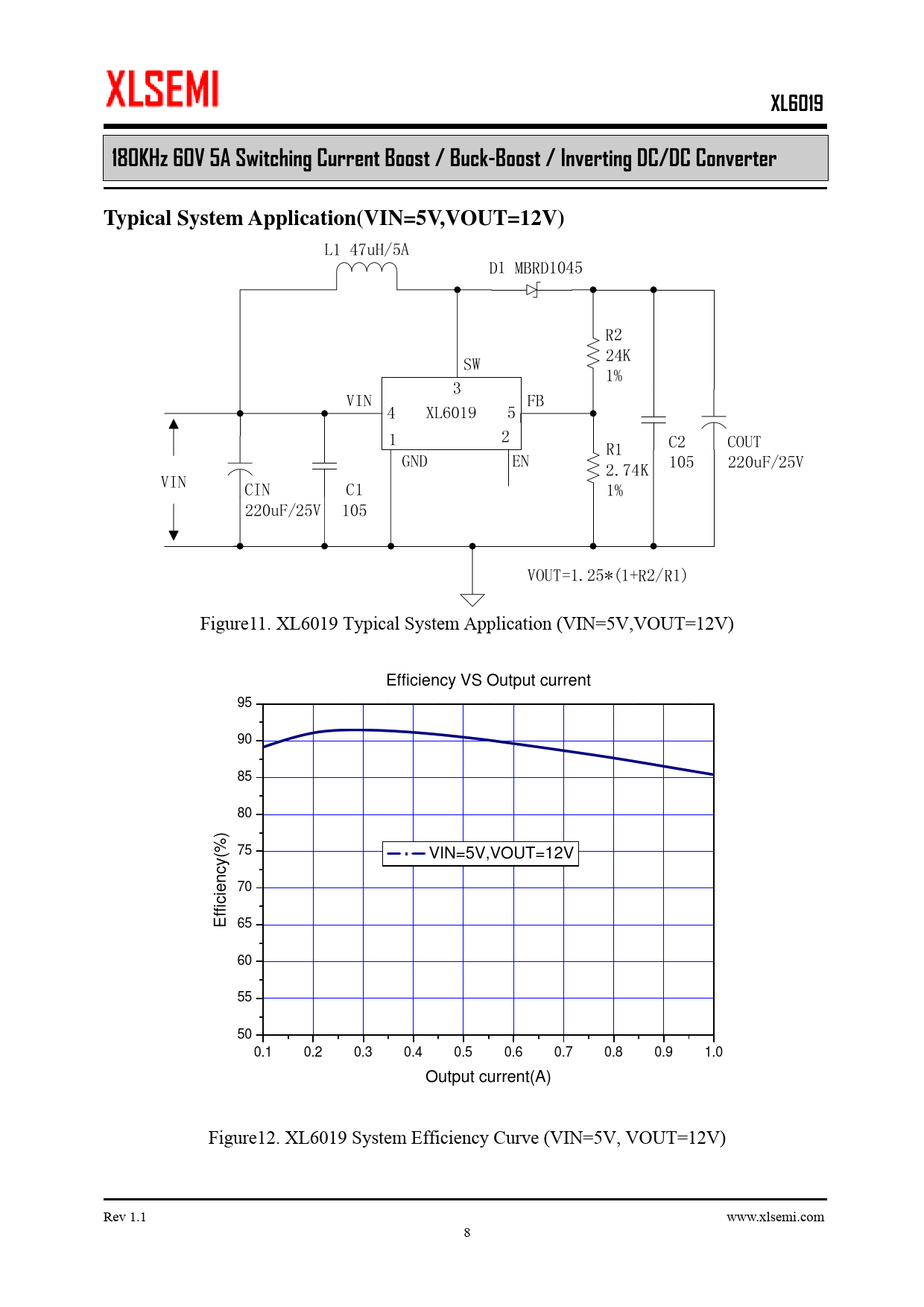

XL6019 180KHz 60V 5A Switching Current Boost / Buck-Boost / Inverting DC/DC Converter Typical System Application(VIN=5V,VOUT=12V)
Figure11. XL6019 Typical System Application (VIN=5V,VOUT=12V) Efficiency VS Output current 95 90 85 80 ) 75 (% y VIN=5V,VOUT=12V c 70 ien ffic E 65 60 55 50 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Output current(A)
Figure12. XL6019 System Efficiency Curve (VIN=5V, VOUT=12V)
