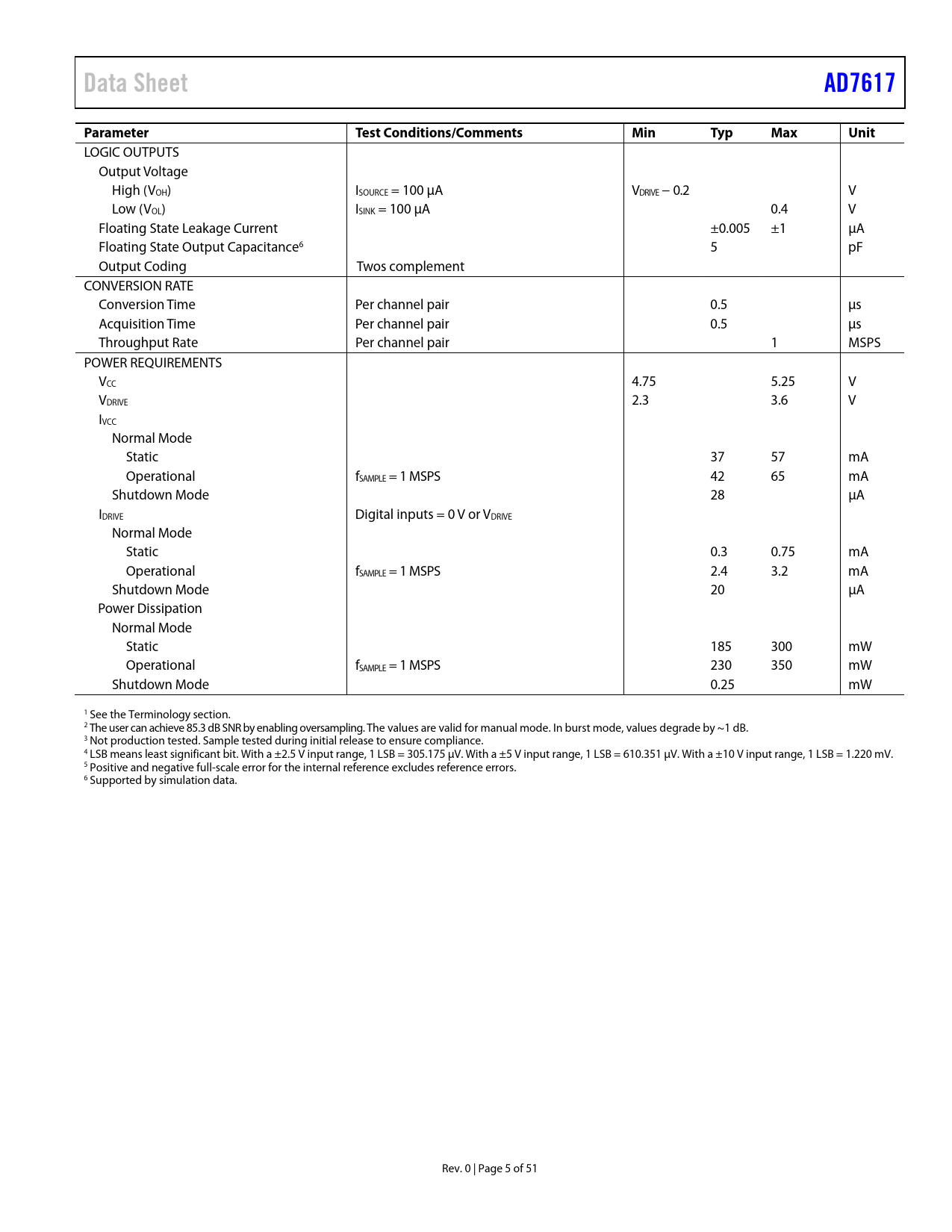

Data Sheet AD7617 Parameter Test Conditions/Comments Min Typ Max Unit
LOGIC OUTPUTS Output Voltage High (VOH) ISOURCE = 100 µA VDRIVE − 0.2 V Low (VOL) ISINK = 100 µA 0.4 V Floating State Leakage Current ±0.005 ±1 µA Floating State Output Capacitance6 5 pF Output Coding Twos complement CONVERSION RATE Conversion Time Per channel pair 0.5 µs Acquisition Time Per channel pair 0.5 µs Throughput Rate Per channel pair 1 MSPS POWER REQUIREMENTS VCC 4.75 5.25 V VDRIVE 2.3 3.6 V IVCC Normal Mode Static 37 57 mA Operational fSAMPLE = 1 MSPS 42 65 mA Shutdown Mode 28 µA IDRIVE Digital inputs = 0 V or VDRIVE Normal Mode Static 0.3 0.75 mA Operational fSAMPLE = 1 MSPS 2.4 3.2 mA Shutdown Mode 20 µA Power Dissipation Normal Mode Static 185 300 mW Operational fSAMPLE = 1 MSPS 230 350 mW Shutdown Mode 0.25 mW 1 See the Terminology section. 2 The user can achieve 85.3 dB SNR by enabling oversampling. The values are valid for manual mode. In burst mode, values degrade by ~1 dB. 3 Not production tested. Sample tested during initial release to ensure compliance. 4 LSB means least significant bit. With a ±2.5 V input range, 1 LSB = 305.175 µV. With a ±5 V input range, 1 LSB = 610.351 µV. With a ±10 V input range, 1 LSB = 1.220 mV. 5 Positive and negative full-scale error for the internal reference excludes reference errors. 6 Supported by simulation data. Rev. 0 | Page 5 of 51 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Universal Timing Specifications Parallel Mode Timing Specifications Serial Mode Timing Specifications ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CONVERTER DETAILS ANALOG INPUT Analog Input Channel Selection Analog Input Ranges Analog Input Impedance Analog Input Clamp Protection Analog Input Antialiasing Filter ADC TRANSFER FUNCTION INTERNAL/EXTERNAL REFERENCE SHUTDOWN MODE DIGITAL FILTER APPLICATIONS INFORMATION FUNCTIONALITY OVERVIEW POWER SUPPLIES TYPICAL CONNECTIONS DEVICE CONFIGURATION OPERATIONAL MODE INTERNAL/EXTERNAL REFERENCE DIGITAL INTERFACE HARDWARE MODE SOFTWARE MODE RESET FUNCTIONALITY PIN FUNCTION OVERVIEW DIGITAL INTERFACE CHANNEL SELECTION Hardware Mode Software Mode PARALLEL INTERFACE Reading Conversion Results Writing Register Data Reading Register Data SERIAL INTERFACE Reading Conversion Results Writing Register Data Reading Register Data SEQUENCER HARDWARE MODE SEQUENCER SOFTWARE MODE SEQUENCER BURST SEQUENCER Hardware Mode Burst Software Mode Burst DIAGNOSTICS DIAGNOSTIC CHANNELS INTERFACE SELF TEST CRC REGISTER SUMMARY ADDRESSING REGISTERS CONFIGURATION REGISTER CHANNEL REGISTER INPUT RANGE REGISTERS Input Range Register A1 Input Range Register A2 Input Range Register B1 Input Range Register B2 SEQUENCER STACK REGISTERS STATUS REGISTER OUTLINE DIMENSIONS ORDERING GUIDE
