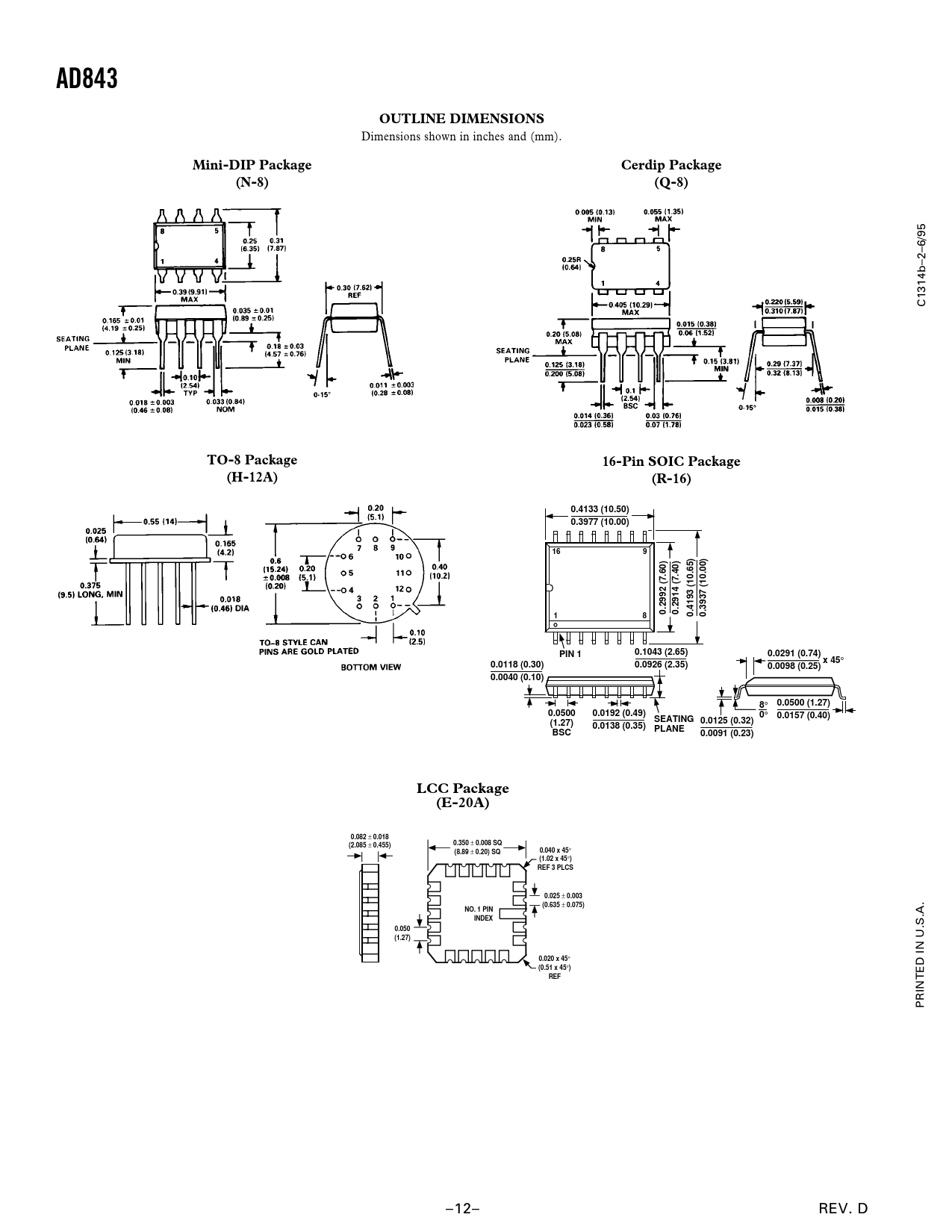

AD843 OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
Mini-DIP Package Cerdip Package (N-8) (Q-8)
C1314b–2–6/95
TO-8 Package 16-Pin SOIC Package (H-12A) (R-16) 0.4133 (10.50) 0.3977 (10.00) 16 9 0.2992 (7.60) 0.2914 (7.40) 1 8 0.4193 (10.65) 0.3937 (10.00) PIN 1 0.1043 (2.65) 0.0291 (0.74) x 45
°
0.0118 (0.30) 0.0926 (2.35) 0.0098 (0.25) 0.0040 (0.10) 0.0500 (1.27) 8
°
0.0500 0.0192 (0.49) 0
°
SEATING 0.0157 (0.40) (1.27) 0.0125 (0.32) 0.0138 (0.35) PLANE BSC 0.0091 (0.23) LCC Package (E-20A) 0.082
±
0.018 (2.085
±
0.455) 0.350
±
0.008 SQ (8.89
±
0.20) SQ 0.040 x 45
°
(1.02 x 45
°
) REF 3 PLCS 0.025
±
0.003 (0.635
±
0.075) NO. 1 PIN INDEX 0.050 (1.27) 0.020 x 45
°
(0.51 x 45
°
) REF
PRINTED IN U.S.A. –12– REV. D
