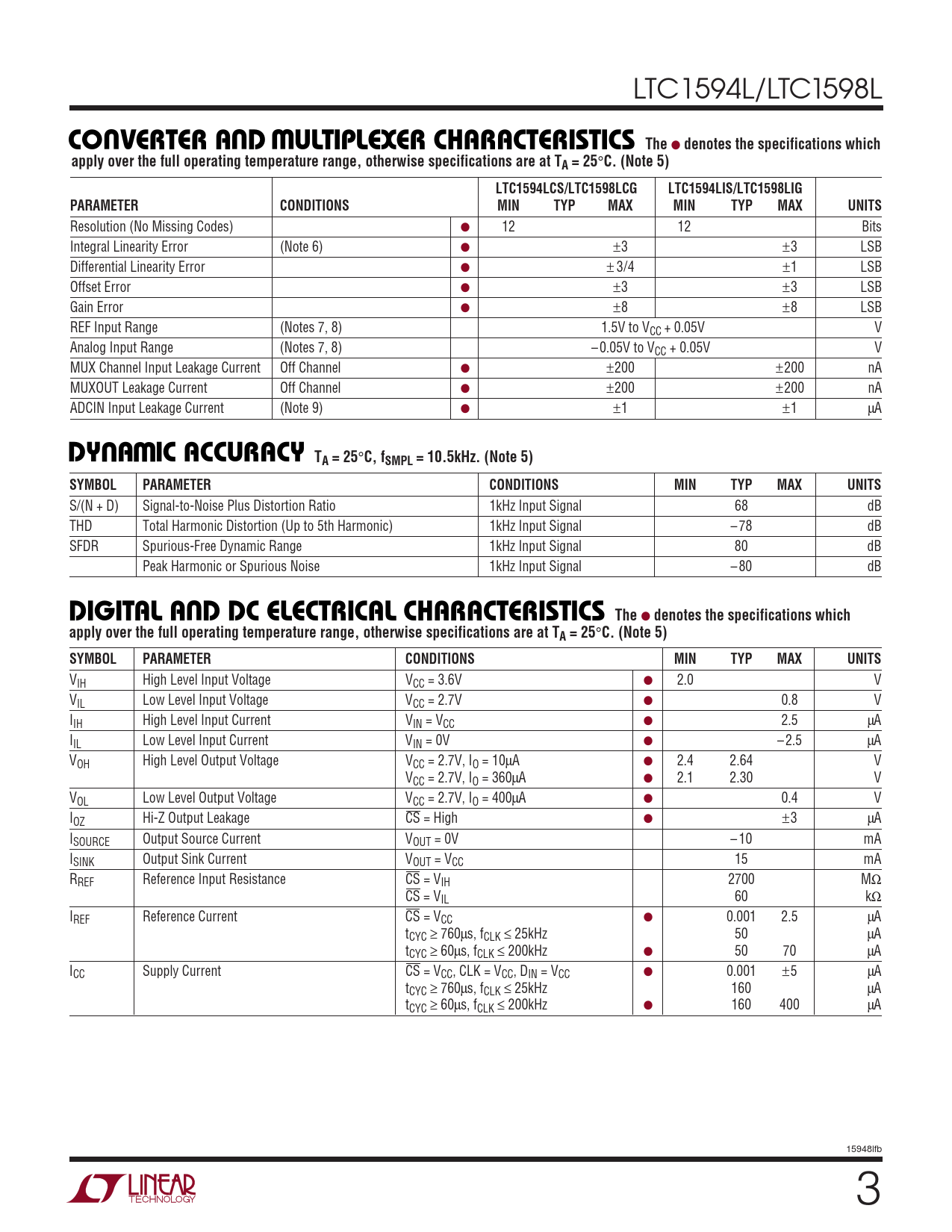

LTC1594L/LTC1598L
U U W CONVERTER AND MULTIPLEXER CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 5) LTC1594LCS/LTC1598LCG LTC1594LIS/LTC1598LIG PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Resolution (No Missing Codes) ● 12 12 Bits Integral Linearity Error (Note 6) ● ±3 ±3 LSB Differential Linearity Error ● ± 3/4 ±1 LSB Offset Error ● ±3 ±3 LSB Gain Error ● ±8 ±8 LSB REF Input Range (Notes 7, 8) 1.5V to VCC + 0.05V V Analog Input Range (Notes 7, 8) – 0.05V to VCC + 0.05V V MUX Channel Input Leakage Current Off Channel ● ±200 ±200 nA MUXOUT Leakage Current Off Channel ● ±200 ±200 nA ADCIN Input Leakage Current (Note 9) ● ±1 ±1 µA
U W DYNAMIC ACCURACY TA = 25
°
C, fSMPL = 10.5kHz. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
S/(N + D) Signal-to-Noise Plus Distortion Ratio 1kHz Input Signal 68 dB THD Total Harmonic Distortion (Up to 5th Harmonic) 1kHz Input Signal – 78 dB SFDR Spurious-Free Dynamic Range 1kHz Input Signal 80 dB Peak Harmonic or Spurious Noise 1kHz Input Signal – 80 dB
U DIGITAL AND DC ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIH High Level Input Voltage VCC = 3.6V ● 2.0 V VIL Low Level Input Voltage VCC = 2.7V ● 0.8 V IIH High Level Input Current VIN = VCC ● 2.5 µA IIL Low Level Input Current VIN = 0V ● – 2.5 µA VOH High Level Output Voltage VCC = 2.7V, IO = 10µA ● 2.4 2.64 V VCC = 2.7V, IO = 360µA ● 2.1 2.30 V VOL Low Level Output Voltage VCC = 2.7V, IO = 400µA ● 0.4 V IOZ Hi-Z Output Leakage CS = High ● ±3 µA ISOURCE Output Source Current VOUT = 0V – 10 mA ISINK Output Sink Current VOUT = VCC 15 mA RREF Reference Input Resistance CS = VIH 2700 MΩ CS = VIL 60 kΩ IREF Reference Current CS = VCC ● 0.001 2.5 µA tCYC ≥ 760µs, fCLK ≤ 25kHz 50 µA tCYC ≥ 60µs, fCLK ≤ 200kHz ● 50 70 µA ICC Supply Current CS = VCC, CLK = VCC, DIN = VCC ● 0.001 ±5 µA tCYC ≥ 760µs, fCLK ≤ 25kHz 160 µA tCYC ≥ 60µs, fCLK ≤ 200kHz ● 160 400 µA 15948lfb 3
