Datasheet LTC2498 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 24-Bit 8-/16-Channel ΔΣ ADC with Easy Drive Input Current Cancellation |
| Pages / Page | 38 / 5 — Digital. inputs anD Digital outputs The. denotes the specifications which … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

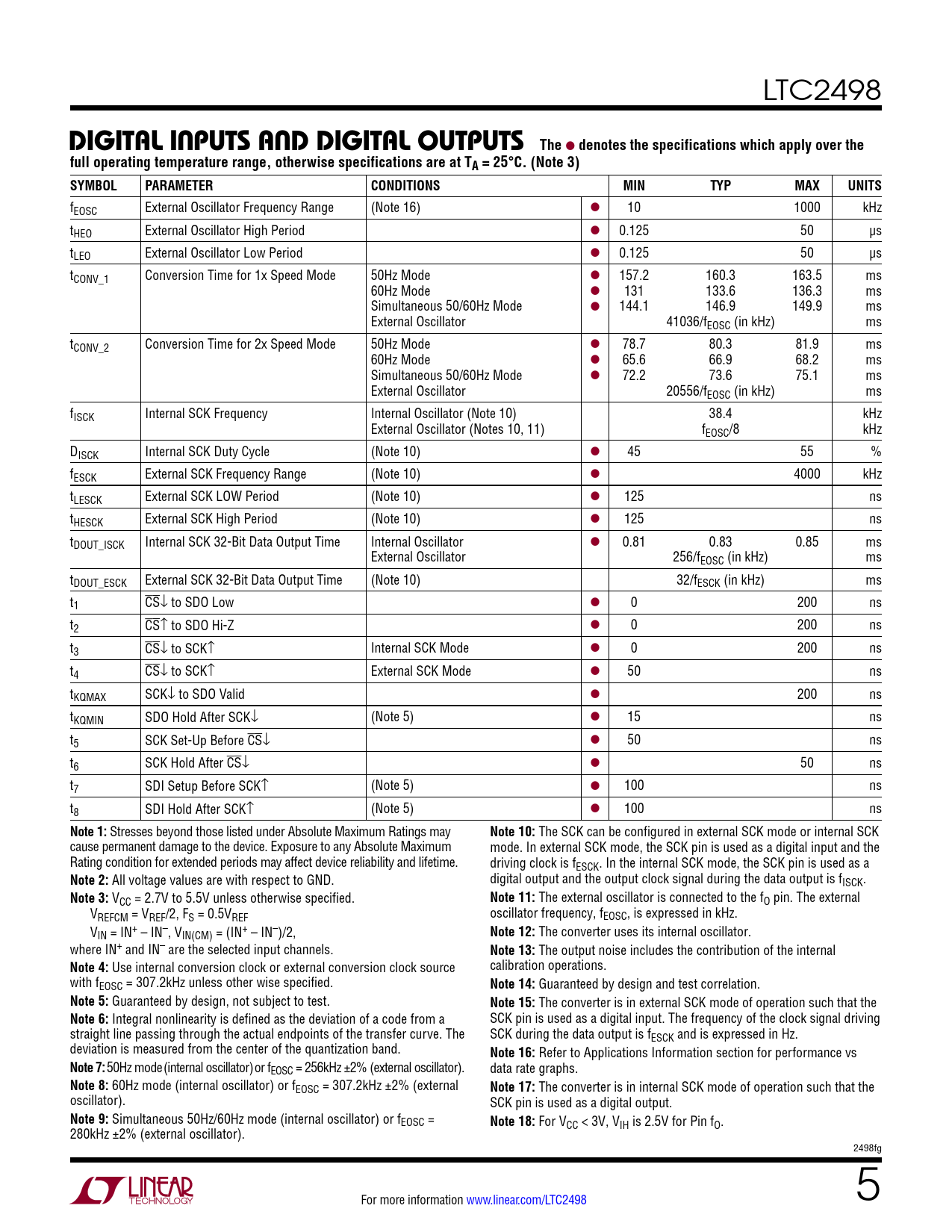

Digital. inputs anD Digital outputs The. denotes the specifications which apply over the
Model Line for this Datasheet
Text Version of Document
LTC2498
Digital inputs anD Digital outputs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fEOSC External Oscillator Frequency Range (Note 16) l 10 1000 kHz tHEO External Oscillator High Period l 0.125 50 µs tLEO External Oscillator Low Period l 0.125 50 µs tCONV_1 Conversion Time for 1x Speed Mode 50Hz Mode l 157.2 160.3 163.5 ms 60Hz Mode l 131 133.6 136.3 ms Simultaneous 50/60Hz Mode l 144.1 146.9 149.9 ms External Oscillator 41036/fEOSC (in kHz) ms tCONV_2 Conversion Time for 2x Speed Mode 50Hz Mode l 78.7 80.3 81.9 ms 60Hz Mode l 65.6 66.9 68.2 ms Simultaneous 50/60Hz Mode l 72.2 73.6 75.1 ms External Oscillator 20556/fEOSC (in kHz) ms fISCK Internal SCK Frequency Internal Oscillator (Note 10) 38.4 kHz External Oscillator (Notes 10, 11) fEOSC/8 kHz DISCK Internal SCK Duty Cycle (Note 10) l 45 55 % fESCK External SCK Frequency Range (Note 10) l 4000 kHz tLESCK External SCK LOW Period (Note 10) l 125 ns tHESCK External SCK High Period (Note 10) l 125 ns tDOUT_ISCK Internal SCK 32-Bit Data Output Time Internal Oscillator l 0.81 0.83 0.85 ms External Oscillator 256/fEOSC (in kHz) ms tDOUT_ESCK External SCK 32-Bit Data Output Time (Note 10) 32/fESCK (in kHz) ms t1 CS↓ to SDO Low l 0 200 ns t2 CS↑ to SDO Hi-Z l 0 200 ns t3 CS↓ to SCK↑ Internal SCK Mode l 0 200 ns t4 CS↓ to SCK↑ External SCK Mode l 50 ns tKQMAX SCK↓ to SDO Valid l 200 ns tKQMIN SDO Hold After SCK↓ (Note 5) l 15 ns t5 SCK Set-Up Before CS↓ l 50 ns t6 SCK Hold After CS↓ l 50 ns t7 SDI Setup Before SCK↑ (Note 5) l 100 ns t8 SDI Hold After SCK↑ (Note 5) l 100 ns
