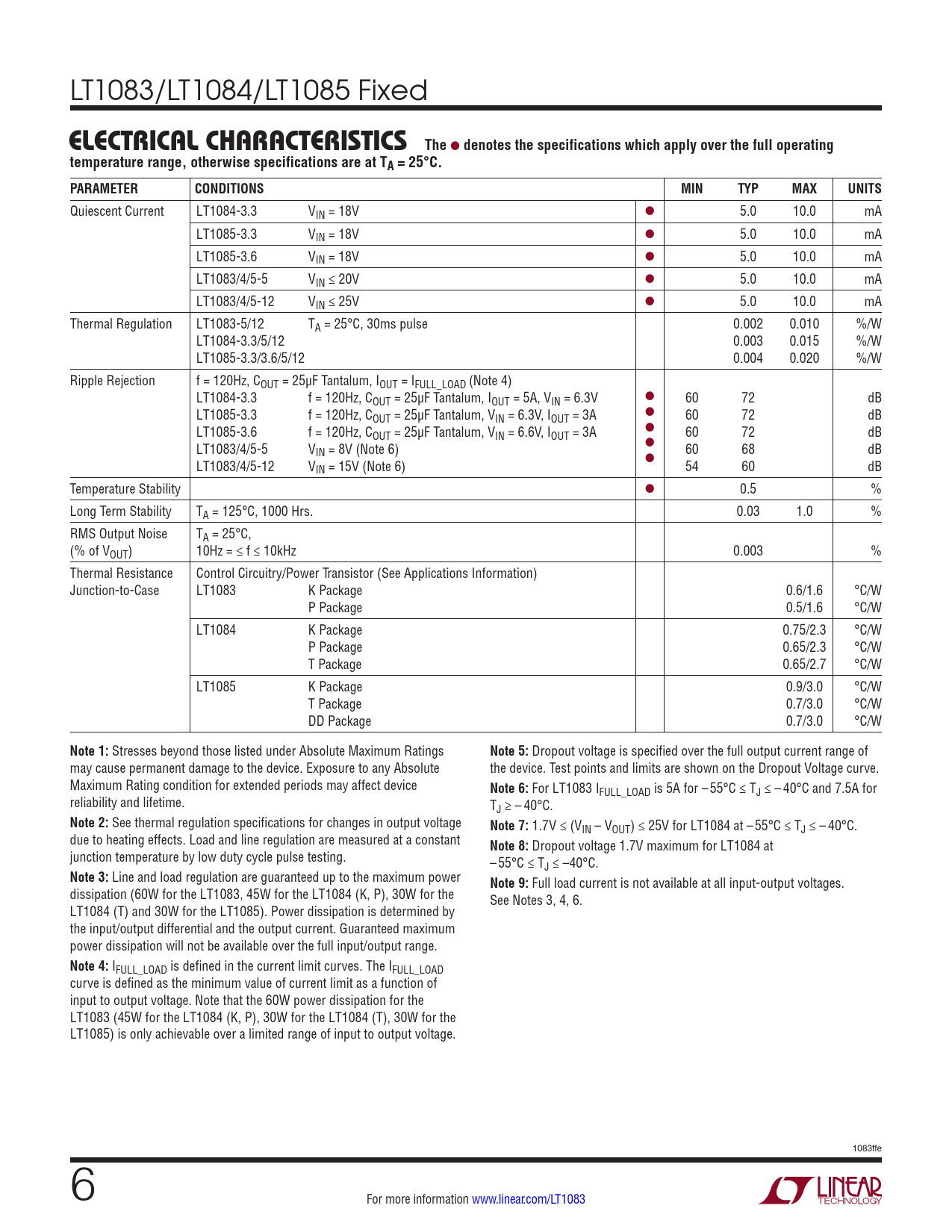

LT1083/LT1084/LT1085 Fixed
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Quiescent Current LT1084-3.3 VIN = 18V l 5.0 10.0 mA LT1085-3.3 VIN = 18V l 5.0 10.0 mA LT1085-3.6 VIN = 18V l 5.0 10.0 mA LT1083/4/5-5 VIN ≤ 20V l 5.0 10.0 mA LT1083/4/5-12 VIN ≤ 25V l 5.0 10.0 mA Thermal Regulation LT1083-5/12 TA = 25°C, 30ms pulse 0.002 0.010 %/W LT1084-3.3/5/12 0.003 0.015 %/W LT1085-3.3/3.6/5/12 0.004 0.020 %/W Ripple Rejection f = 120Hz, COUT = 25µF Tantalum, IOUT = IFULL_LOAD (Note 4) LT1084-3.3 f = 120Hz, COUT = 25µF Tantalum, IOUT = 5A, VIN = 6.3V l 60 72 dB LT1085-3.3 f = 120Hz, COUT = 25µF Tantalum, VIN = 6.3V, IOUT = 3A l 60 72 dB LT1085-3.6 f = 120Hz, C l OUT = 25µF Tantalum, VIN = 6.6V, IOUT = 3A 60 72 dB LT1083/4/5-5 V l IN = 8V (Note 6) 60 68 dB LT1083/4/5-12 V l IN = 15V (Note 6) 54 60 dB Temperature Stability l 0.5 % Long Term Stability TA = 125°C, 1000 Hrs. 0.03 1.0 % RMS Output Noise TA = 25°C, (% of VOUT) 10Hz = ≤ f ≤ 10kHz 0.003 % Thermal Resistance Control Circuitry/Power Transistor (See Applications Information) Junction-to-Case LT1083 K Package 0.6/1.6 °C/W P Package 0.5/1.6 °C/W LT1084 K Package 0.75/2.3 °C/W P Package 0.65/2.3 °C/W T Package 0.65/2.7 °C/W LT1085 K Package 0.9/3.0 °C/W T Package 0.7/3.0 °C/W DD Package 0.7/3.0 °C/W
