LT3081

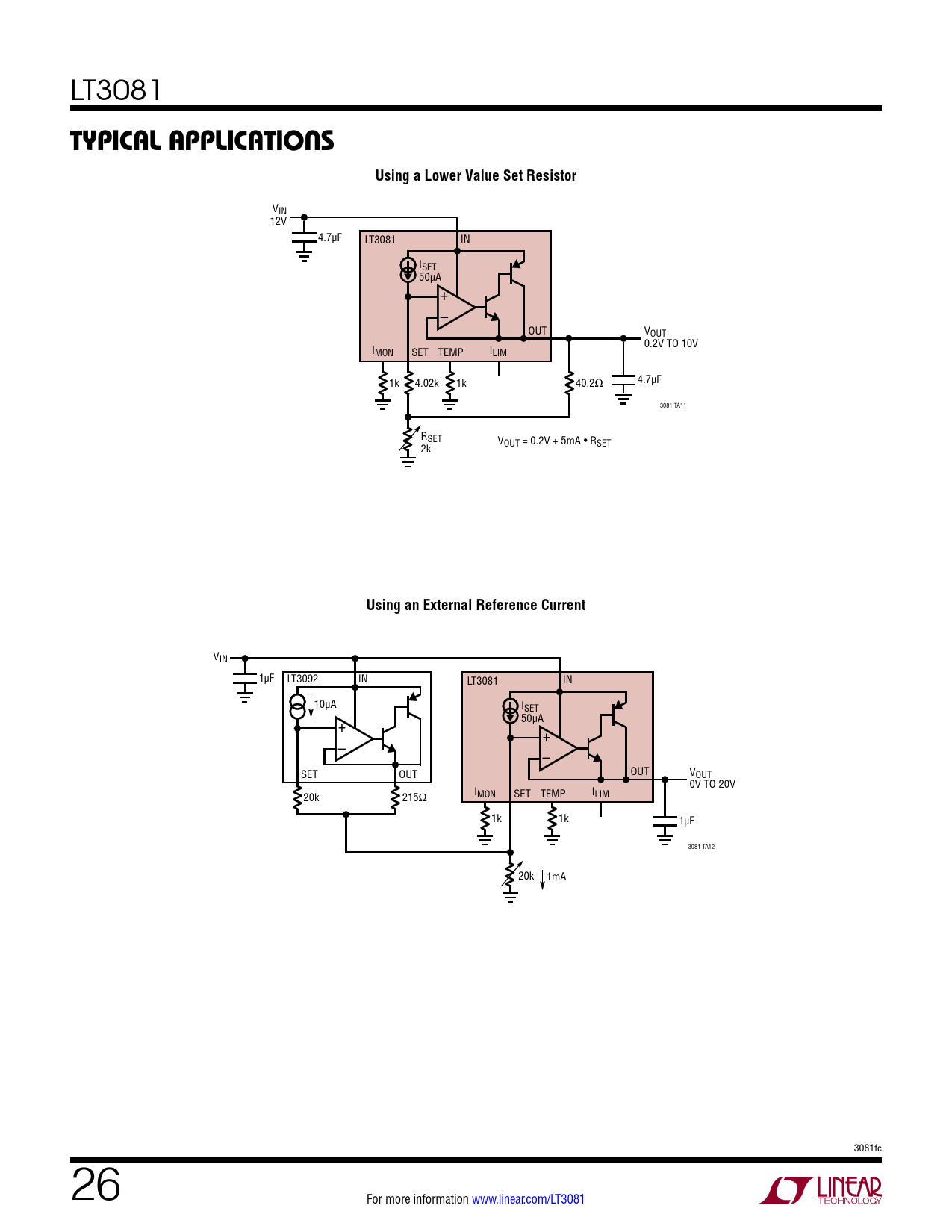

Typical applicaTions Using a Lower Value Set Resistor
VIN 12V 4.7µF LT3081 IN ISET 50µA + – OUT VOUT 0.2V TO 10V IMON SET TEMP ILIM 1k 4.02k 1k 4.7µF 40.2Ω 3081 TA11 RSET V 2k OUT = 0.2V + 5mA • RSET
Using an External Reference Current
VIN 1µF LT3092 IN LT3081 IN 10µA ISET 50µA + + – – OUT SET OUT VOUT 0V TO 20V IMON SET TEMP ILIM 20k 215Ω 1k 1k 1µF 3081 TA12 20k 1mA 3081fc 26 For more information www.linear.com/LT3081 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
