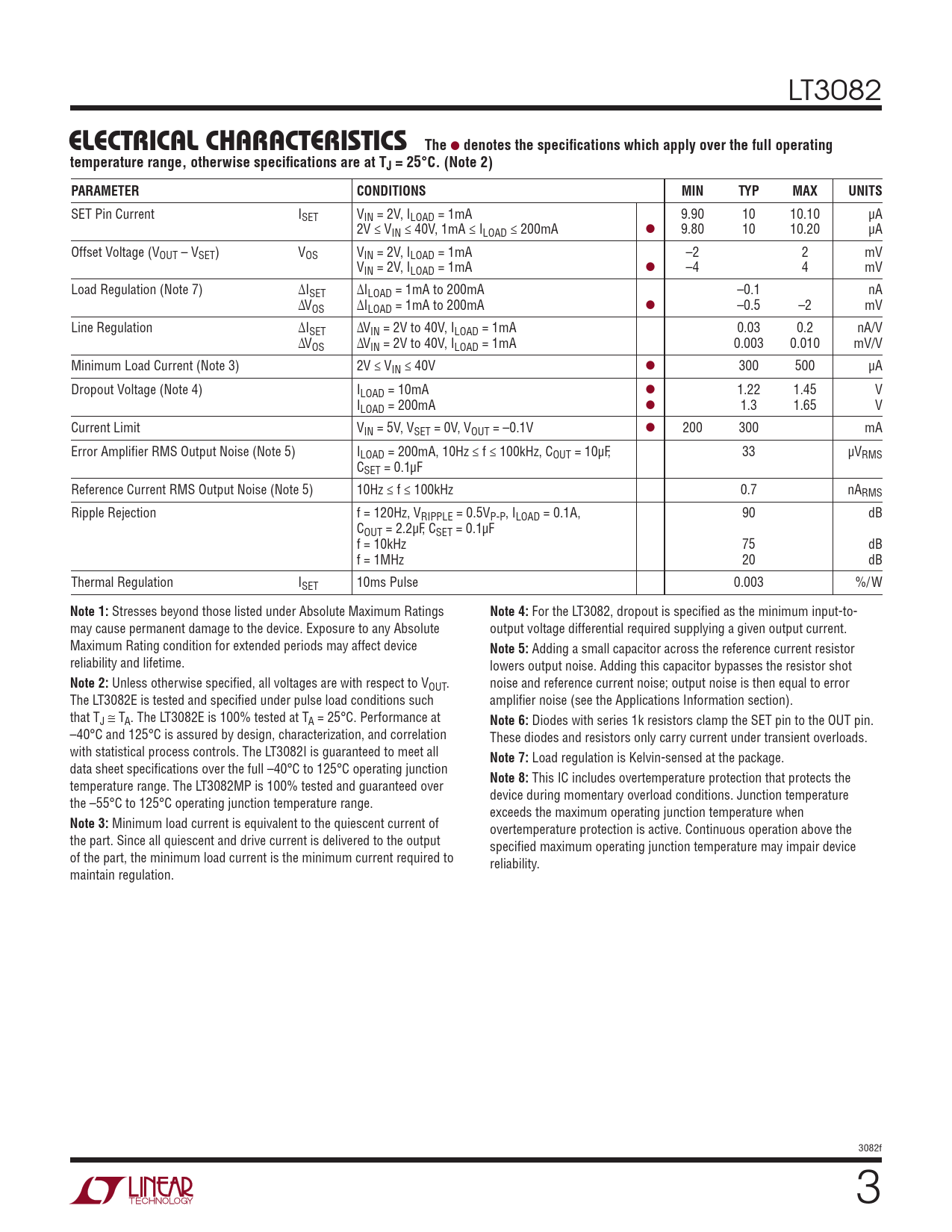

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Model Line for this Datasheet
- LT3082EDD#PBF LT3082EDD#PBF LT3082EDD#TRPBF LT3082EDD#TRPBF LT3082EST#PBF LT3082EST#PBF LT3082EST#TRPBF LT3082EST#TRPBF LT3082ETS8#PBF LT3082ETS8#TRMPBF LT3082ETS8#TRMPBF LT3082ETS8#TRPBF LT3082ETS8#TRPBF LT3082IDD#PBF LT3082IDD#PBF LT3082IDD#TRPBF LT3082IDD#TRPBF LT3082IST#PBF LT3082IST#PBF LT3082IST#TRPBF LT3082IST#TRPBF LT3082ITS8#PBF LT3082ITS8#TRMPBF LT3082ITS8#TRMPBF LT3082ITS8#TRPBF LT3082ITS8#TRPBF LT3082MPST LT3082MPST#PBF LT3082MPST#PBF LT3082MPST#TR LT3082MPST#TRPBF LT3082MPST#TRPBF
Text Version of Document
LT3082
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TJ = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
SET Pin Current ISET VIN = 2V, ILOAD = 1mA 9.90 10 10.10 μA 2V ≤ VIN ≤ 40V, 1mA ≤ ILOAD ≤ 200mA l 9.80 10 10.20 μA Offset Voltage (VOUT – VSET) VOS VIN = 2V, ILOAD = 1mA –2 2 mV VIN = 2V, ILOAD = 1mA l –4 4 mV Load Regulation (Note 7) ΔISET ΔILOAD = 1mA to 200mA –0.1 nA ΔVOS ΔILOAD = 1mA to 200mA l –0.5 –2 mV Line Regulation ΔISET ΔVIN = 2V to 40V, ILOAD = 1mA 0.03 0.2 nA/V ΔVOS ΔVIN = 2V to 40V, ILOAD = 1mA 0.003 0.010 mV/V Minimum Load Current (Note 3) 2V ≤ VIN ≤ 40V l 300 500 μA Dropout Voltage (Note 4) ILOAD = 10mA l 1.22 1.45 V ILOAD = 200mA l 1.3 1.65 V Current Limit VIN = 5V, VSET = 0V, VOUT = –0.1V l 200 300 mA Error Amplifi er RMS Output Noise (Note 5) ILOAD = 200mA, 10Hz ≤ f ≤ 100kHz, COUT = 10μF, 33 μVRMS CSET = 0.1μF Reference Current RMS Output Noise (Note 5) 10Hz ≤ f ≤ 100kHz 0.7 nARMS Ripple Rejection f = 120Hz, VRIPPLE = 0.5VP-P, ILOAD = 0.1A, 90 dB COUT = 2.2μF, CSET = 0.1μF f = 10kHz 75 dB f = 1MHz 20 dB Thermal Regulation ISET 10ms Pulse 0.003 %/W
