Datasheet ATmega328/P - Summary (Microchip)

ManufacturerMicrochip
Description8-bit AVR Microcontrollers
Pages / Page24 / 1 — 8-bit AVR Microcontrollers. ATmega328/P. DATASHEET SUMMARY. Introduction. …
File Format / SizePDF / 407 Kb
Document LanguageEnglish

8-bit AVR Microcontrollers. ATmega328/P. DATASHEET SUMMARY. Introduction. Feature

Datasheet ATmega328/P - Summary Microchip

Model Line for this Datasheet

Text Version of Document

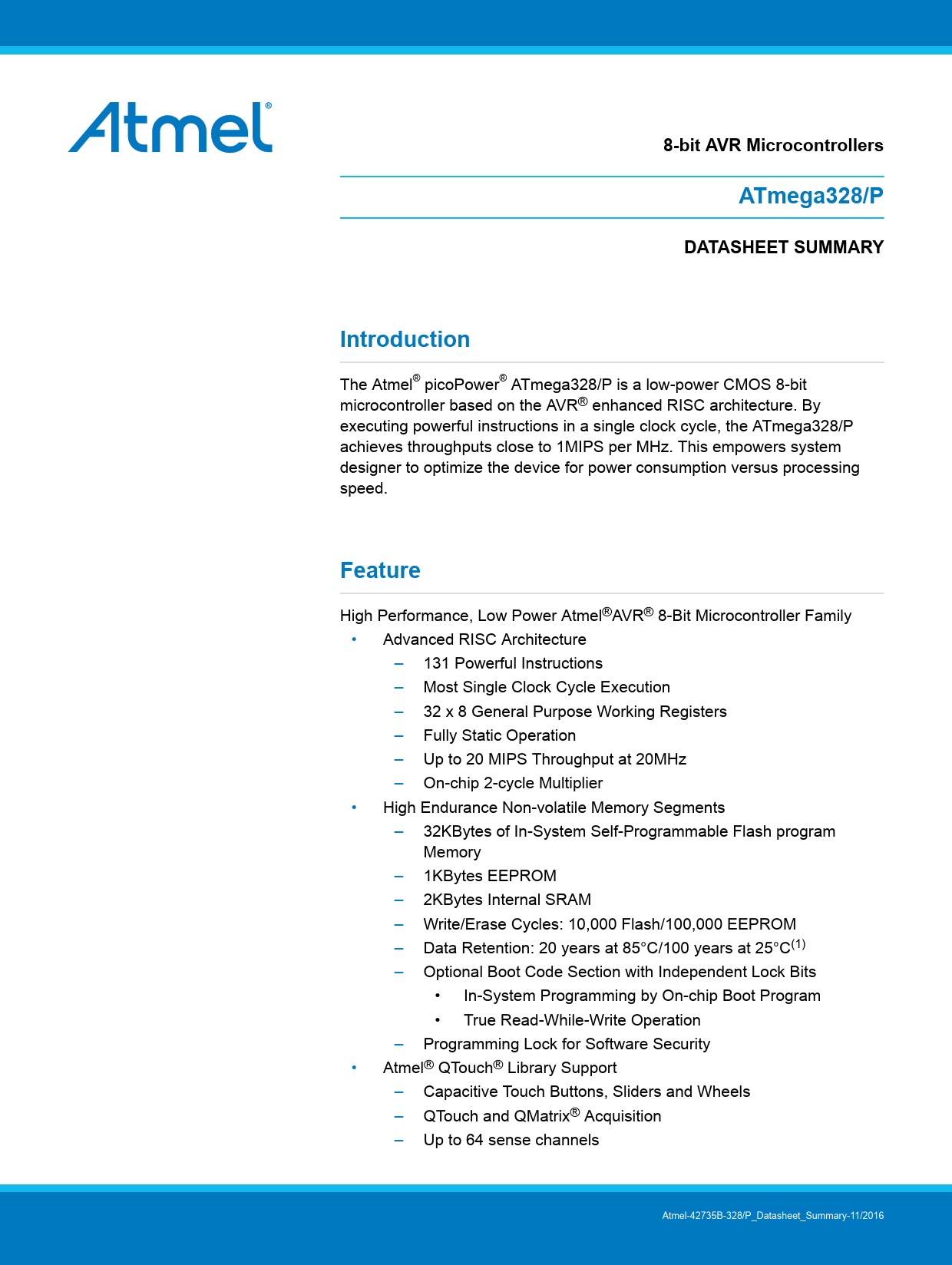

8-bit AVR Microcontrollers ATmega328/P DATASHEET SUMMARY Introduction
The Atmel® picoPower® ATmega328/P is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328/P achieves throughputs close to 1MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.
Feature
High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family • Advanced RISC Architecture – 131 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 20 MIPS Throughput at 20MHz – On-chip 2-cycle Multiplier • High Endurance Non-volatile Memory Segments – 32KBytes of In-System Self-Programmable Flash program Memory – 1KBytes EEPROM – 2KBytes Internal SRAM – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM – Data Retention: 20 years at 85°C/100 years at 25°C(1) – Optional Boot Code Section with Independent Lock Bits • In-System Programming by On-chip Boot Program • True Read-While-Write Operation – Programming Lock for Software Security • Atmel® QTouch® Library Support – Capacitive Touch Buttons, Sliders and Wheels – QTouch and QMatrix® Acquisition – Up to 64 sense channels Atmel-42735B-328/P_Datasheet_Summary-11/2016 Document Outline Introduction Feature Table of Contents 1. Description 2. Configuration Summary 3. Ordering Information 3.1. ATmega328 3.2. ATmega328P 4. Block Diagram 5. Pin Configurations 5.1. Pin-out 5.2. Pin Descriptions 5.2.1. VCC 5.2.2. GND 5.2.3. Port B (PB[7:0]) XTAL1/XTAL2/TOSC1/TOSC2 5.2.4. Port C (PC[5:0]) 5.2.5. PC6/RESET 5.2.6. Port D (PD[7:0]) 5.2.7. AVCC 5.2.8. AREF 5.2.9. ADC[7:6] (TQFP and VFQFN Package Only) 6. I/O Multiplexing 7. Resources 8. Data Retention 9. About Code Examples 10. Capacitive Touch Sensing 10.1. QTouch Library 11. Packaging Information 11.1. 32-pin 32A 11.2. 32-pin 32M1-A 11.3. 28-pin 28M1 11.4. 28-pin 28P3
