LT3745-1
ELECTRICAL CHARACTERISTICS The
l

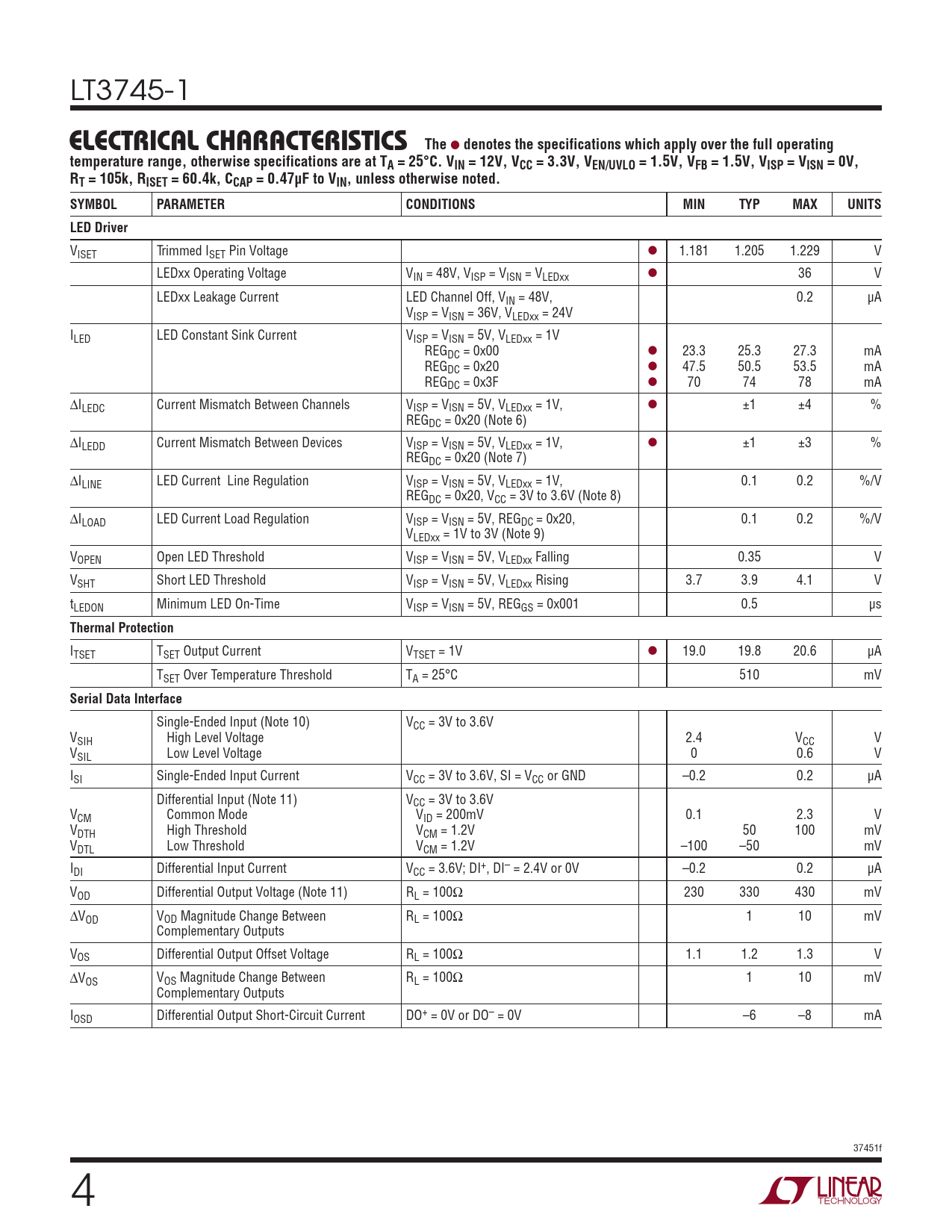

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, VCC = 3.3V, VEN/UVLO = 1.5V, VFB = 1.5V, VISP = VISN = 0V, RT = 105k, RISET = 60.4k, CCAP = 0.47µF to VIN, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS LED Driver
VISET Trimmed ISET Pin Voltage l 1.181 1.205 1.229 V LEDxx Operating Voltage VIN = 48V, VISP = VISN = VLEDxx l 36 V LEDxx Leakage Current LED Channel Off, VIN = 48V, 0.2 µA VISP = VISN = 36V, VLEDxx = 24V ILED LED Constant Sink Current VISP = VISN = 5V, VLEDxx = 1V REGDC = 0x00 l 23.3 25.3 27.3 mA REGDC = 0x20 l 47.5 50.5 53.5 mA REGDC = 0x3F l 70 74 78 mA ∆ILEDC Current Mismatch Between Channels VISP = VISN = 5V, VLEDxx = 1V, l ±1 ±4 % REGDC = 0x20 (Note 6) ∆ILEDD Current Mismatch Between Devices VISP = VISN = 5V, VLEDxx = 1V, l ±1 ±3 % REGDC = 0x20 (Note 7) ∆ILINE LED Current Line Regulation VISP = VISN = 5V, VLEDxx = 1V, 0.1 0.2 %/V REGDC = 0x20, VCC = 3V to 3.6V (Note 8) ∆ILOAD LED Current Load Regulation VISP = VISN = 5V, REGDC = 0x20, 0.1 0.2 %/V VLEDxx = 1V to 3V (Note 9) VOPEN Open LED Threshold VISP = VISN = 5V, VLEDxx Falling 0.35 V VSHT Short LED Threshold VISP = VISN = 5V, VLEDxx Rising 3.7 3.9 4.1 V tLEDON Minimum LED On-Time VISP = VISN = 5V, REGGS = 0x001 0.5 µs
