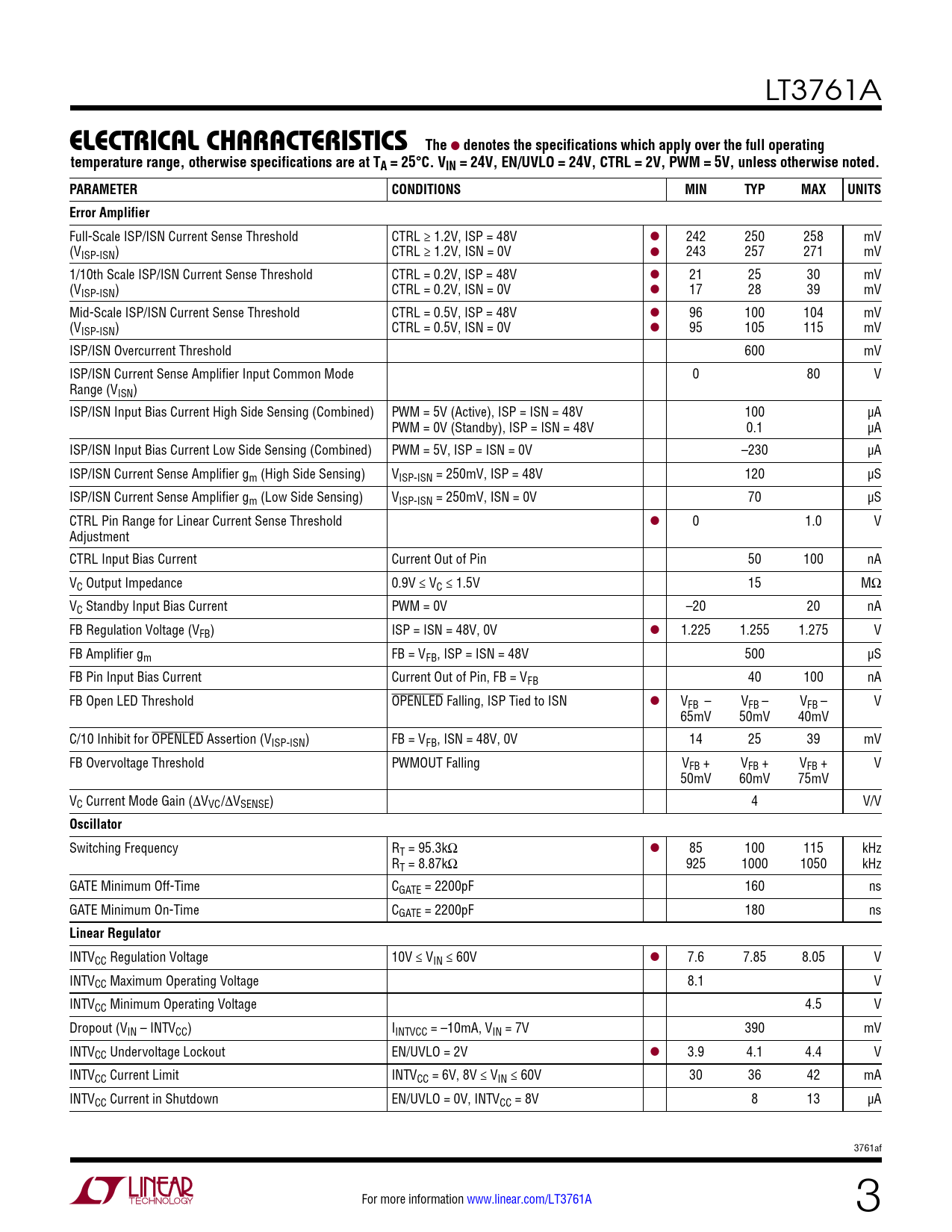

elecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT3761A
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 24V, EN/UVLO = 24V, CTRL = 2V, PWM = 5V, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS Error Amplifier
Full-Scale ISP/ISN Current Sense Threshold CTRL ≥ 1.2V, ISP = 48V l 242 250 258 mV (VISP-ISN) CTRL ≥ 1.2V, ISN = 0V l 243 257 271 mV 1/10th Scale ISP/ISN Current Sense Threshold CTRL = 0.2V, ISP = 48V l 21 25 30 mV (VISP-ISN) CTRL = 0.2V, ISN = 0V l 17 28 39 mV Mid-Scale ISP/ISN Current Sense Threshold CTRL = 0.5V, ISP = 48V l 96 100 104 mV (VISP-ISN) CTRL = 0.5V, ISN = 0V l 95 105 115 mV ISP/ISN Overcurrent Threshold 600 mV ISP/ISN Current Sense Amplifier Input Common Mode 0 80 V Range (VISN) ISP/ISN Input Bias Current High Side Sensing (Combined) PWM = 5V (Active), ISP = ISN = 48V 100 µA PWM = 0V (Standby), ISP = ISN = 48V 0.1 µA ISP/ISN Input Bias Current Low Side Sensing (Combined) PWM = 5V, ISP = ISN = 0V –230 µA ISP/ISN Current Sense Amplifier gm (High Side Sensing) VISP-ISN = 250mV, ISP = 48V 120 µS ISP/ISN Current Sense Amplifier gm (Low Side Sensing) VISP-ISN = 250mV, ISN = 0V 70 µS CTRL Pin Range for Linear Current Sense Threshold l 0 1.0 V Adjustment CTRL Input Bias Current Current Out of Pin 50 100 nA VC Output Impedance 0.9V ≤ VC ≤ 1.5V 15 MΩ VC Standby Input Bias Current PWM = 0V –20 20 nA FB Regulation Voltage (VFB) ISP = ISN = 48V, 0V l 1.225 1.255 1.275 V FB Amplifier gm FB = VFB, ISP = ISN = 48V 500 µS FB Pin Input Bias Current Current Out of Pin, FB = VFB 40 100 nA FB Open LED Threshold OPENLED Falling, ISP Tied to ISN l VFB – VFB – VFB – V 65mV 50mV 40mV C/10 Inhibit for OPENLED Assertion (VISP-ISN) FB = VFB, ISN = 48V, 0V 14 25 39 mV FB Overvoltage Threshold PWMOUT Falling VFB + VFB + VFB + V 50mV 60mV 75mV VC Current Mode Gain (∆VVC/∆VSENSE) 4 V/V
