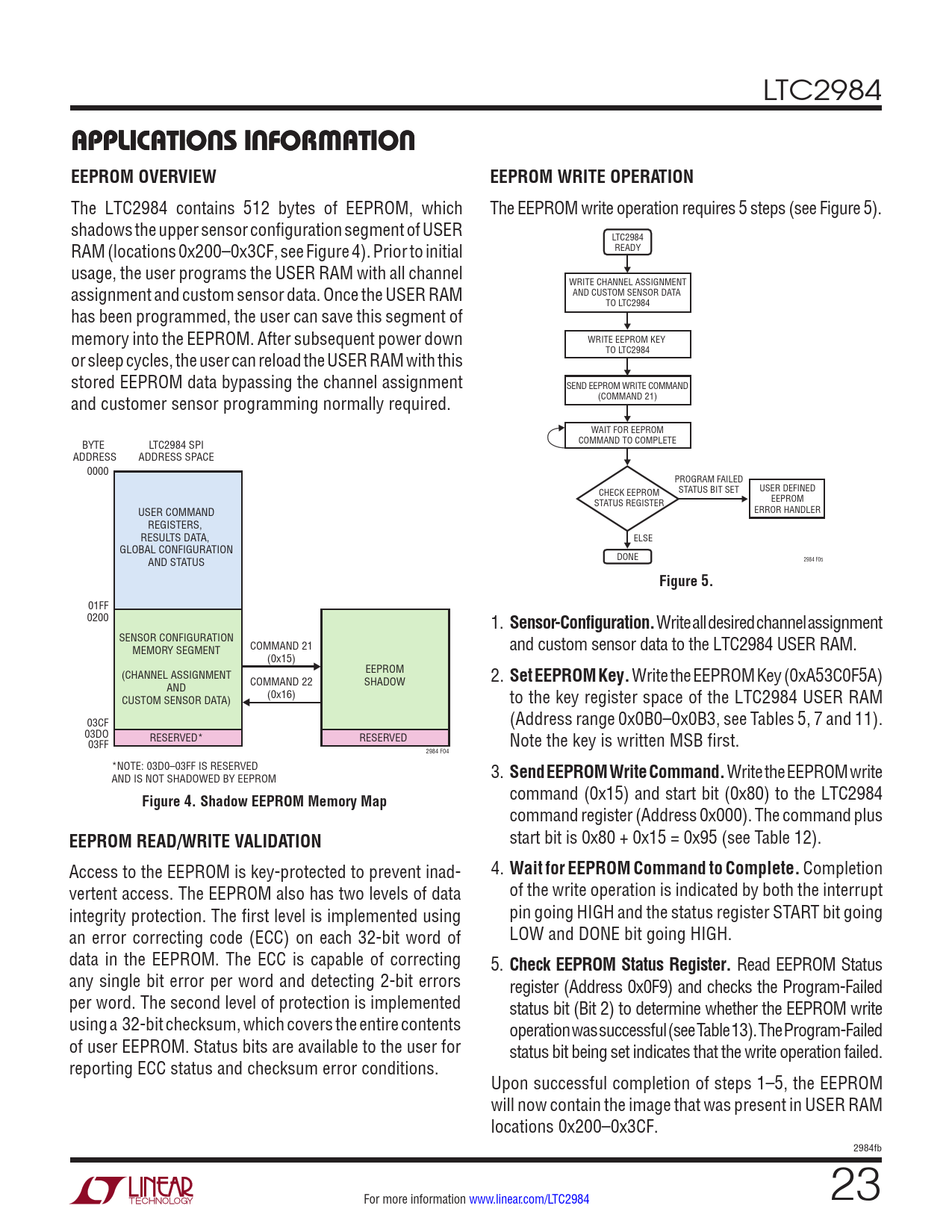

APPLICATIONS INFORMATION EEPROM OVERVIEW. EEPROM WRITE OPERATION. Figure 5. Sensor-Configuration. Set EEPROM Key
