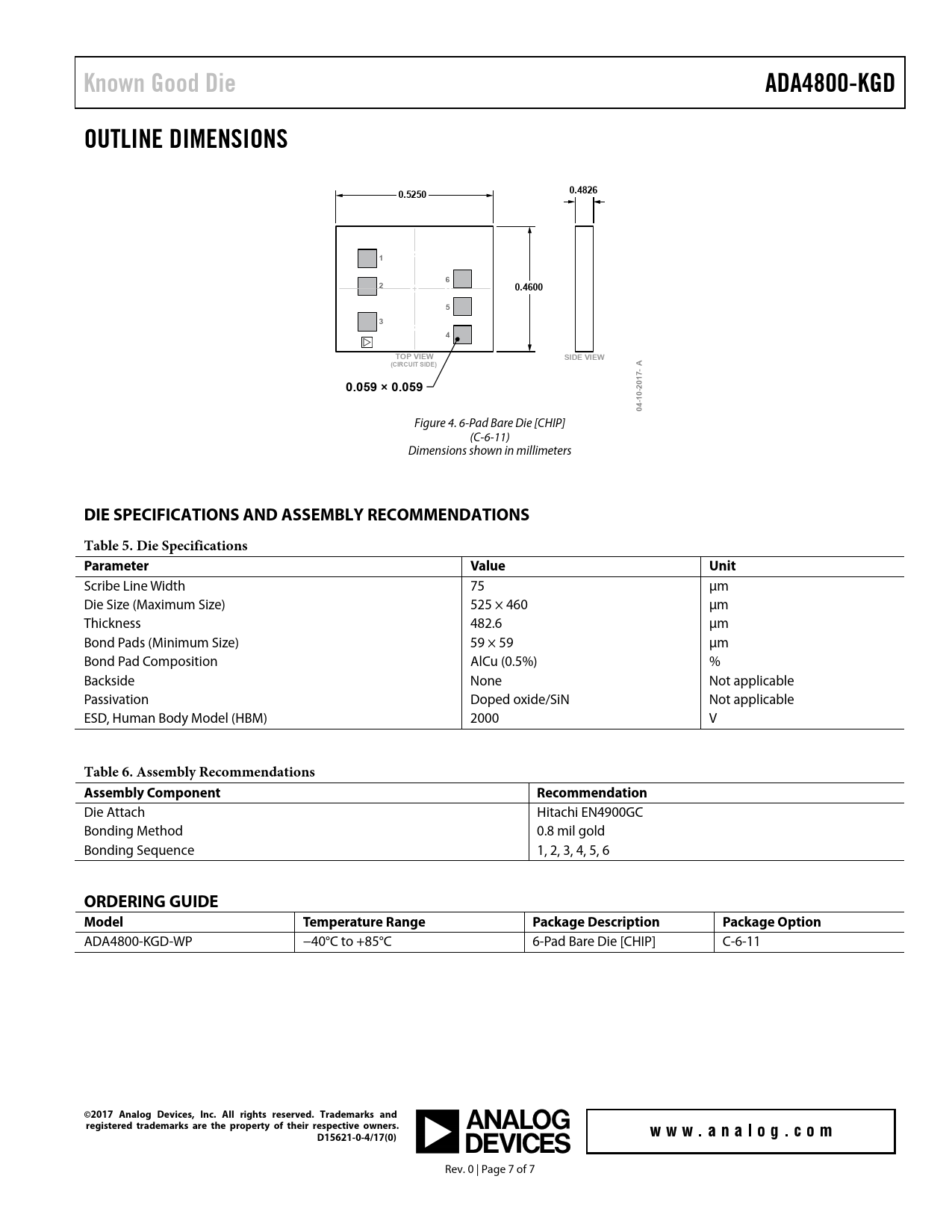

Known Good Die. ADA4800-KGD. OUTLINE DIMENSIONS. 0.5250. 0.4826. 0.4600. TOP VIEW. SIDE VIEW. (CIRCUIT SIDE). 2017-. 0.059 × 0.059. 10- 04-
Model Line for this Datasheet
Text Version of Document
Known Good Die ADA4800-KGD OUTLINE DIMENSIONS 0.5250 0.4826 1 6 2 0.4600 5 3 4 TOP VIEW SIDE VIEW (CIRCUIT SIDE) A 2017- 0.059 × 0.059 10- 04-
Figure 4. 6-Pad Bare Die [CHIP] (C-6-11) Dimensions shown in millimeters
DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS Table 5. Die Specifications Parameter Value Unit
Scribe Line Width 75 μm Die Size (Maximum Size) 525 × 460 μm Thickness 482.6 μm Bond Pads (Minimum Size) 59 × 59 μm Bond Pad Composition AlCu (0.5%) % Backside None Not applicable Passivation Doped oxide/SiN Not applicable ESD, Human Body Model (HBM) 2000 V
Table 6. Assembly Recommendations Assembly Component Recommendation
Die Attach Hitachi EN4900GC Bonding Method 0.8 mil gold Bonding Sequence 1, 2, 3, 4, 5, 6
ORDERING GUIDE Model Temperature Range Package Description Package Option
ADA4800-KGD-WP −40°C to +85°C 6-Pad Bare Die [CHIP] C-6-11
