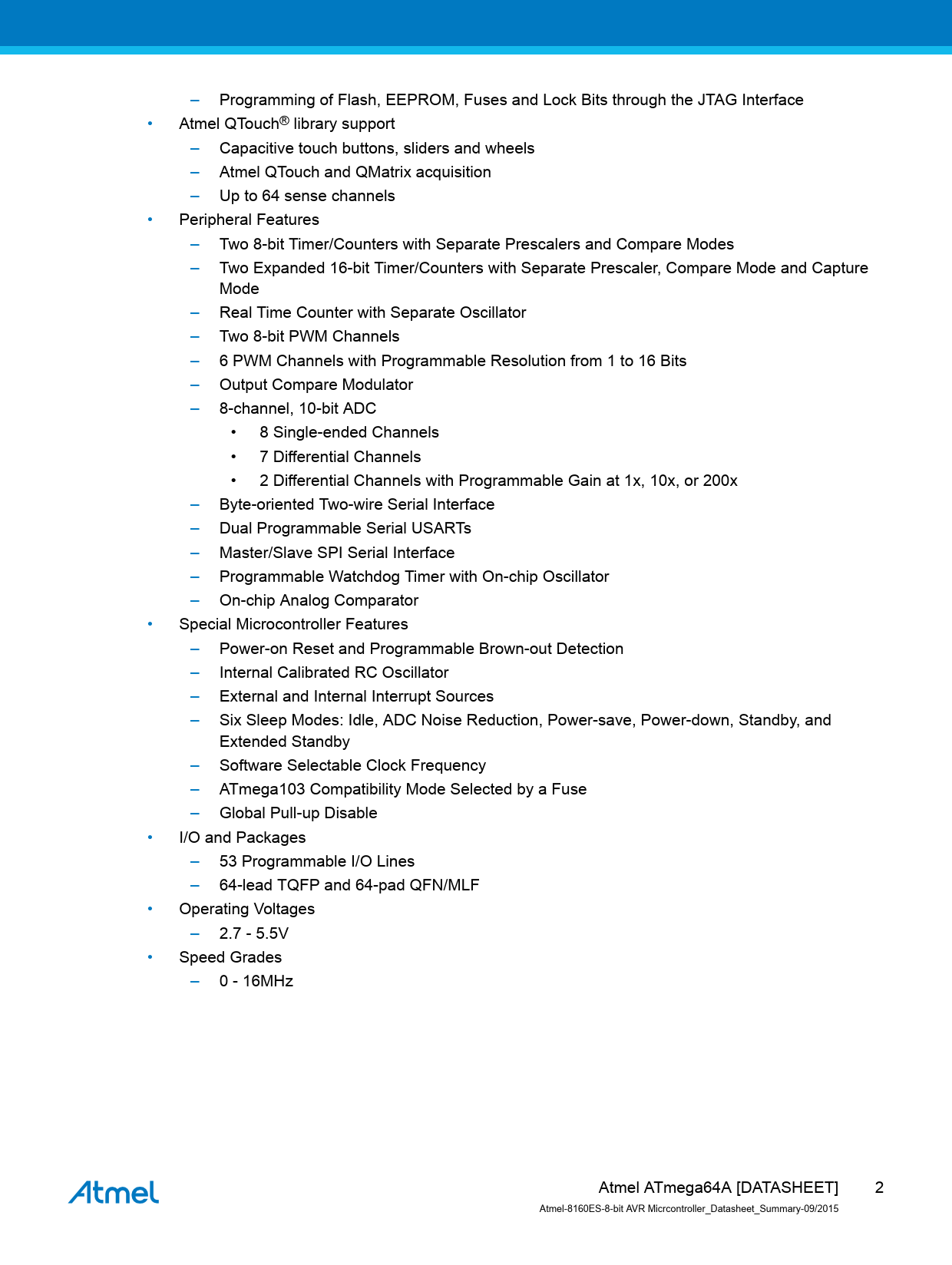

Datasheet ATmega64A - Summary (Microchip) - 2

– Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface • Atmel QTouch® library support – Capacitive touch buttons, sliders and wheels – Atmel QTouch and QMatrix acquisition – Up to 64 sense channels • Peripheral Features – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and Capture Mode – Real Time Counter with Separate Oscillator – Two 8-bit PWM Channels – 6 PWM Channels with Programmable Resolution from 1 to 16 Bits – Output Compare Modulator – 8-channel, 10-bit ADC • 8 Single-ended Channels • 7 Differential Channels • 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x – Byte-oriented Two-wire Serial Interface – Dual Programmable Serial USARTs – Master/Slave SPI Serial Interface – Programmable Watchdog Timer with On-chip Oscillator – On-chip Analog Comparator • Special Microcontroller Features – Power-on Reset and Programmable Brown-out Detection – Internal Calibrated RC Oscillator – External and Internal Interrupt Sources – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby – Software Selectable Clock Frequency – ATmega103 Compatibility Mode Selected by a Fuse – Global Pull-up Disable • I/O and Packages – 53 Programmable I/O Lines – 64-lead TQFP and 64-pad QFN/MLF • Operating Voltages – 2.7 - 5.5V • Speed Grades – 0 - 16MHz Atmel ATmega64A [DATASHEET] 2 Atmel-8160ES-8-bit AVR Micrcontroller_Datasheet_Summary-09/2015 Document Outline Introduction Features Table of Contents 1. Description 2. Configuration Summary 3. Ordering Information 4. Block Diagram 5. ATmega103 and ATmega64A Compatibility 5.1. ATmega103 Compatibility Mode 6. Pin Configurations 6.1. Pin Descriptions 6.1.1. VCC 6.1.2. GND 6.1.3. Port A (PA7:PA0) 6.1.4. Port B (PB7:PB0) 6.1.5. Port C (PC7:PC0) 6.1.6. Port D (PD7:PD0) 6.1.7. Port E (PE7:PE0) 6.1.8. Port F (PF7:PF0) 6.1.9. Port G (PG4:PG0) 6.1.10. RESET 6.1.11. XTAL1 6.1.12. XTAL2 6.1.13. AVCC 6.1.14. AREF 6.1.15. PEN 7. Resources 8. Data Retention 9. About Code Examples 10. Capacitive Touch Sensing 11. Packaging Information 11.1. 64A 11.2. 64M1 12. Errata 12.1. ATmega64A Rev. D
