Datasheet DN3765 (Microchip) - 3
| Manufacturer | Microchip |
| Description | N-Channel Depletion-Mode Vertical DMOS FET Features |
| Pages / Page | 3 / 3 — DN3765. 3-Lead TO-252 (D-PAK) Package Outline (K4). Front View. Rear … |
| File Format / Size | PDF / 556 Kb |
| Document Language | English |

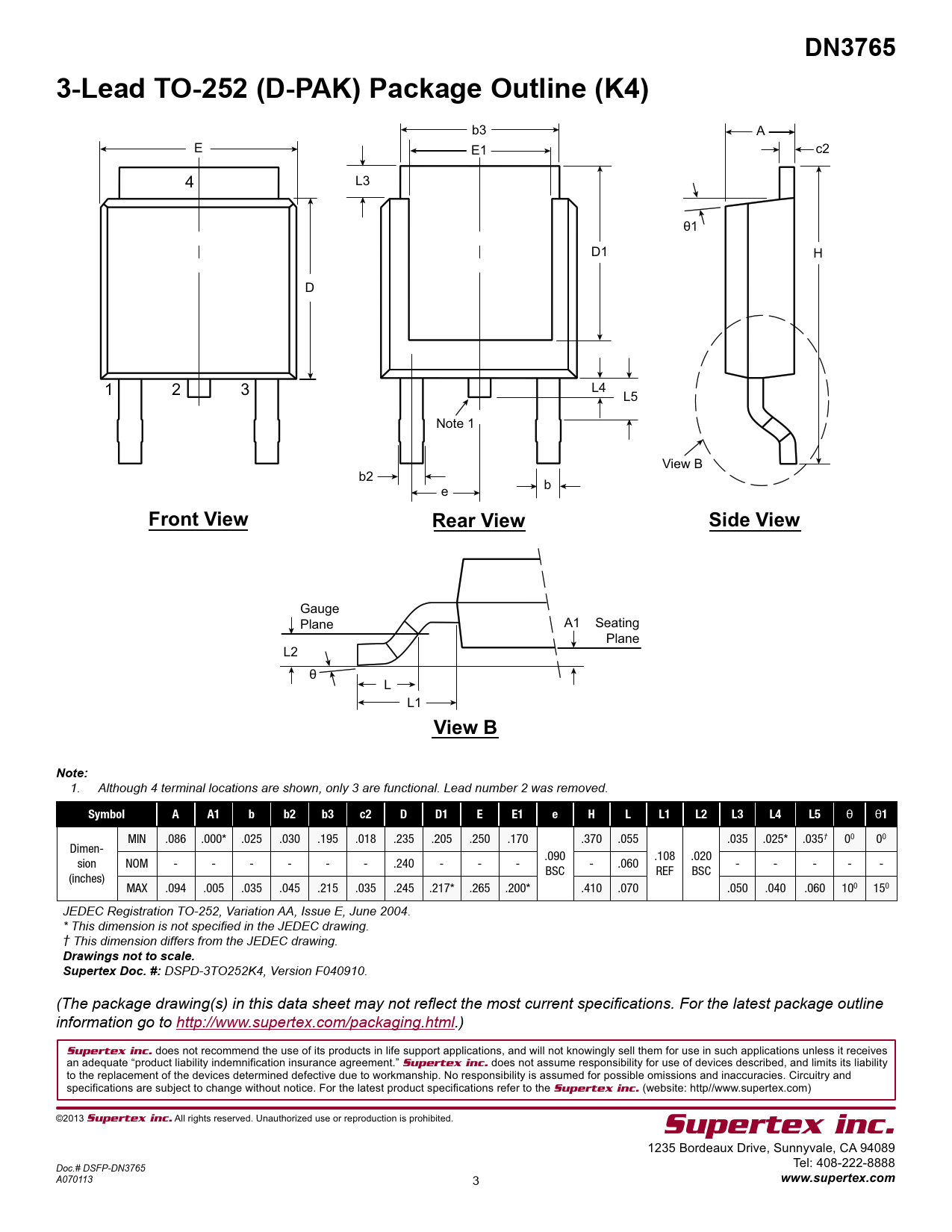

DN3765. 3-Lead TO-252 (D-PAK) Package Outline (K4). Front View. Rear View. Side View. View B. Note:. Symbol. Drawings not to scale
Model Line for this Datasheet
Text Version of Document
DN3765 3-Lead TO-252 (D-PAK) Package Outline (K4)
b3 A E E1 c2 4 L3 θ1 D1 H D 1 2 3 L4 L5 Note 1 View B b2 b e
Front View Rear View Side View
Gauge Plane A1 Seating Plane L2 θ L L1
View B Note:
1. Although 4 terminal locations are shown, only 3 are functional. Lead number 2 was removed.
Symbol A A1 b b2 b3 c2 D D1 E E1 e H L L1 L2 L3 L4 L5
θ θ
1
MIN .086 .000* .025 .030 .195 .018 .235 .205 .250 .170 .370 .055 .035 .025* .035† 0O 0O Dimen- .090 .108 .020 sion NOM - - - - - - .240 - - - - .060 - - - - - BSC REF BSC (inches) MAX .094 .005 .035 .045 .215 .035 .245 .217* .265 .200* .410 .070 .050 .040 .060 10O 15O JEDEC Registration TO-252, Variation AA, Issue E, June 2004. * This dimension is not specified in the JEDEC drawing. † This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc. #:
DSPD-3TO252K4, Version F040910. (The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information go to http://www.supertex.com/packaging.html.)
Supertex inc.
does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives an adequate “product liability indemnification insurance agreement.”
Supertex inc.
does not assume responsibility for use of devices described, and limits its liability to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications refer to the
Supertex inc.
(website: http//www.supertex.com) ©2013
Supertex inc.
All rights reserved. Unauthorized use or reproduction is prohibited.
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089 Tel: 408-222-8888 Doc.# DSFP-DN3765 A070113 3
www.supertex.com
