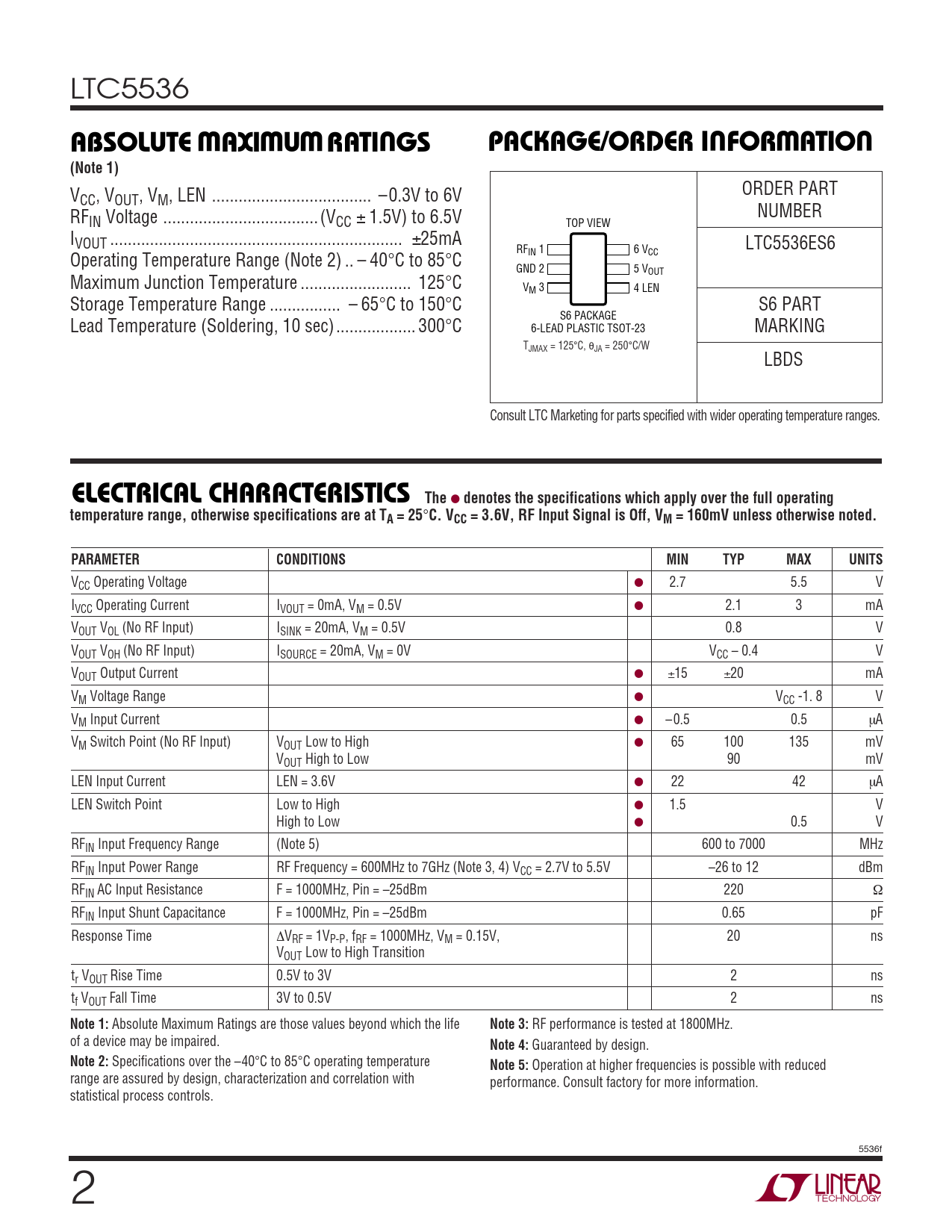

ABSOLUTE AXI U. RATI GS. PACKAGE/ORDER I FOR ATIO. (Note 1). ELECTRICAL CHARACTERISTICS The
Model Line for this Datasheet
Text Version of Document
LTC5536
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
V ORDER PART CC, VOUT, VM, LEN .. –0.3V to 6V RF NUMBER IN Voltage ... (VCC ± 1.5V) to 6.5V TOP VIEW IVOUT .. ±25mA RF 6 V LTC5536ES6 Operating Temperature Range (Note 2) .. – 40 IN 1 CC °C to 85°C GND 2 5 VOUT Maximum Junction Temperature ... 125°C V 4 LEN M 3 Storage Temperature Range .. – 65°C to 150°C S6 PART S6 PACKAGE Lead Temperature (Soldering, 10 sec).. 300°C 6-LEAD PLASTIC TSOT-23 MARKING TJMAX = 125°C, θJA = 250°C/W LBDS Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 3.6V, RF Input Signal is Off, VM = 160mV unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Operating Voltage ● 2.7 5.5 V IVCC Operating Current IVOUT = 0mA, VM = 0.5V ● 2.1 3 mA VOUT VOL (No RF Input) ISINK = 20mA, VM = 0.5V 0.8 V VOUT VOH (No RF Input) ISOURCE = 20mA, VM = 0V VCC – 0.4 V VOUT Output Current ● ±15 ±20 mA VM Voltage Range ● VCC -1. 8 V VM Input Current ● –0.5 0.5 µA VM Switch Point (No RF Input) VOUT Low to High ● 65 100 135 mV VOUT High to Low 90 mV LEN Input Current LEN = 3.6V ● 22 42 µA LEN Switch Point Low to High ● 1.5 V High to Low ● 0.5 V RFIN Input Frequency Range (Note 5) 600 to 7000 MHz RFIN Input Power Range RF Frequency = 600MHz to 7GHz (Note 3, 4) VCC = 2.7V to 5.5V –26 to 12 dBm RFIN AC Input Resistance F = 1000MHz, Pin = –25dBm 220 Ω RFIN Input Shunt Capacitance F = 1000MHz, Pin = –25dBm 0.65 pF Response Time ∆VRF = 1VP-P, fRF = 1000MHz, VM = 0.15V, 20 ns VOUT Low to High Transition tr VOUT Rise Time 0.5V to 3V 2 ns tf VOUT Fall Time 3V to 0.5V 2 ns
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 3:
RF performance is tested at 1800MHz. of a device may be impaired.
Note 4:
Guaranteed by design.
Note 2:
Specifications over the –40°C to 85°C operating temperature
Note 5:
Operation at higher frequencies is possible with reduced range are assured by design, characterization and correlation with performance. Consult factory for more information. statistical process controls. 5536f 2
