Datasheet ISL32704E (Intersil) - 6

ManufacturerIntersil
DescriptionUltra-Low EMI, Smallest Package Isolated RS-485 Transceiver
Pages / Page13 / 6 — link. to. page. 5. link. to. page. 5. link. to. page. 5. ISL32704E. …
Revision2017-03-29
File Format / SizePDF / 1.1 Mb
Document LanguageEnglish

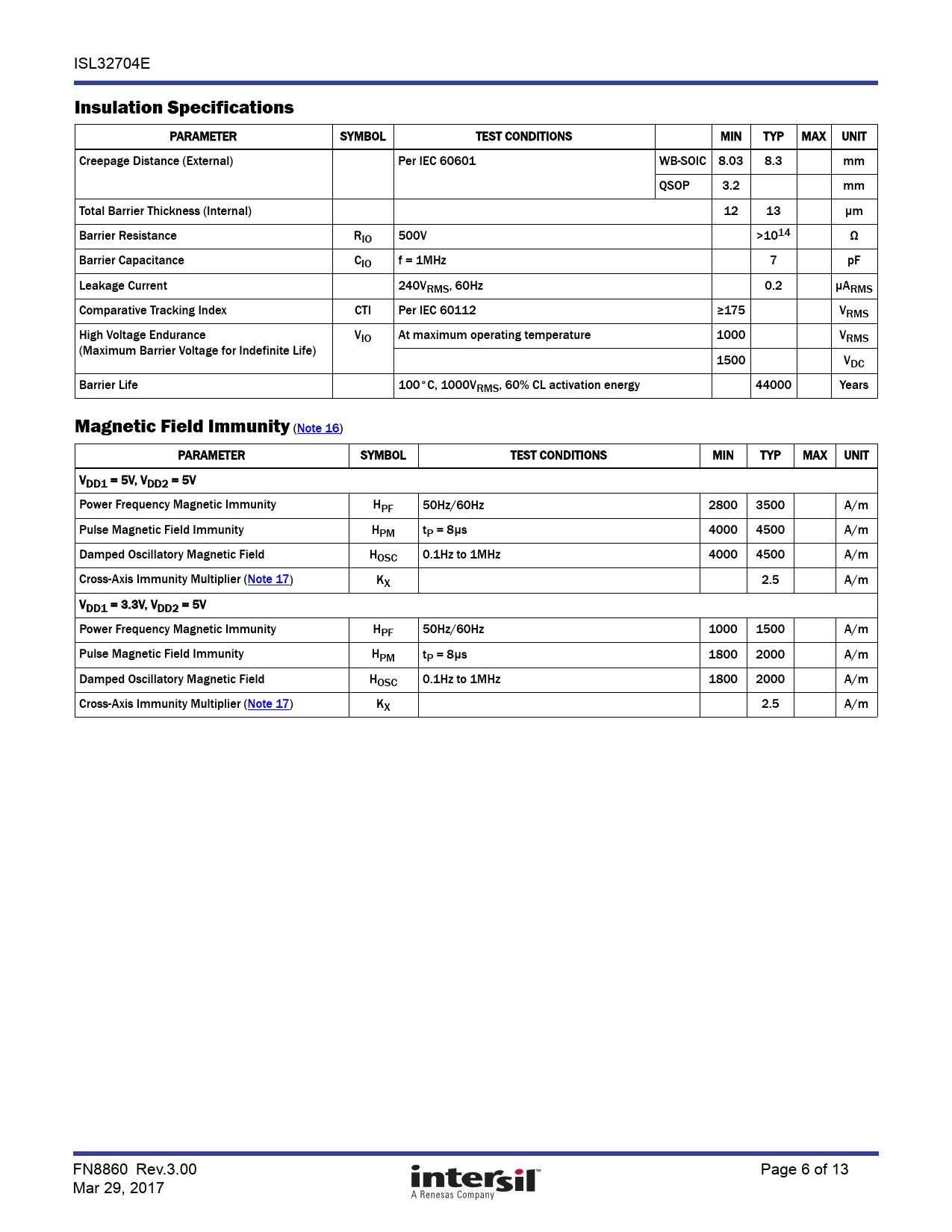

link. to. page. 5. link. to. page. 5. link. to. page. 5. ISL32704E. Insulation. Specifications. PARAMETER. SYMBOL. TEST. CONDITIONS. MIN. TYP. MAX. UNIT. Creepage

link to page 5 link to page 5 link to page 5 ISL32704E Insulation Specifications PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT Creepage

Model Line for this Datasheet

Text Version of Document

link to page 5 link to page 5 link to page 5 ISL32704E Insulation Specifications PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT Creepage Distance (External) Per IEC 60601 WB-SOIC 8.03 8.3 mm QSOP 3.2 mm Total Barrier Thickness (Internal) 12 13 µm Barrier Resistance RIO 500V >1014 Ω Barrier Capacitance CIO f = 1MHz 7 pF Leakage Current 240VRMS, 60Hz 0.2 µARMS Comparative Tracking Index CTI Per IEC 60112 ≥175 VRMS High Voltage Endurance VIO At maximum operating temperature 1000 VRMS (Maximum Barrier Voltage for Indefinite Life) 1500 VDC Barrier Life 100°C, 1000VRMS, 60% CL activation energy 44000 Years Magnetic Field Immunity (Note 16) PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNIT VDD1 = 5V, VDD2 = 5V Power Frequency Magnetic Immunity HPF 50Hz/60Hz 2800 3500 A/m Pulse Magnetic Field Immunity HPM tP = 8µs 4000 4500 A/m Damped Oscillatory Magnetic Field HOSC 0.1Hz to 1MHz 4000 4500 A/m Cross-Axis Immunity Multiplier (Note 17) KX 2.5 A/m VDD1 = 3.3V, VDD2 = 5V Power Frequency Magnetic Immunity HPF 50Hz/60Hz 1000 1500 A/m Pulse Magnetic Field Immunity HPM tP = 8µs 1800 2000 A/m Damped Oscillatory Magnetic Field HOSC 0.1Hz to 1MHz 1800 2000 A/m Cross-Axis Immunity Multiplier (Note 17) KX 2.5 A/m FN8860 Rev.3.00 Page 6 of 13 Mar 29, 2017 Document Outline Related Literature Features Applications Ordering Information Pin Configurations Truth Table Truth Table Pin Descriptions Typical Operating Circuits Absolute Maximum Ratings (Note 16) Thermal Information Recommended Operating Conditions Electrical Specifications Insulation Specifications Magnetic Field Immunity (Note 16) Safety and Approvals VDE V 0884-11 (Certification Pending) UL 1577 Electromagnetic Compatibility Application Information RS-485 and Isolation Digital Isolator Principle GMR Resistor in Detail Low Emissions Low EMI Susceptibility Receiver (Rx) Features Driver (Tx) Features Built-In Driver Overload Protection Dynamic Power Consumption Power Supply Decoupling DC Correctness Data Rate, Cables, and Terminations Transient Protection Pinout Differences Between Packages Revision History About Intersil Package Outline Drawing M16.15B M16.3A
