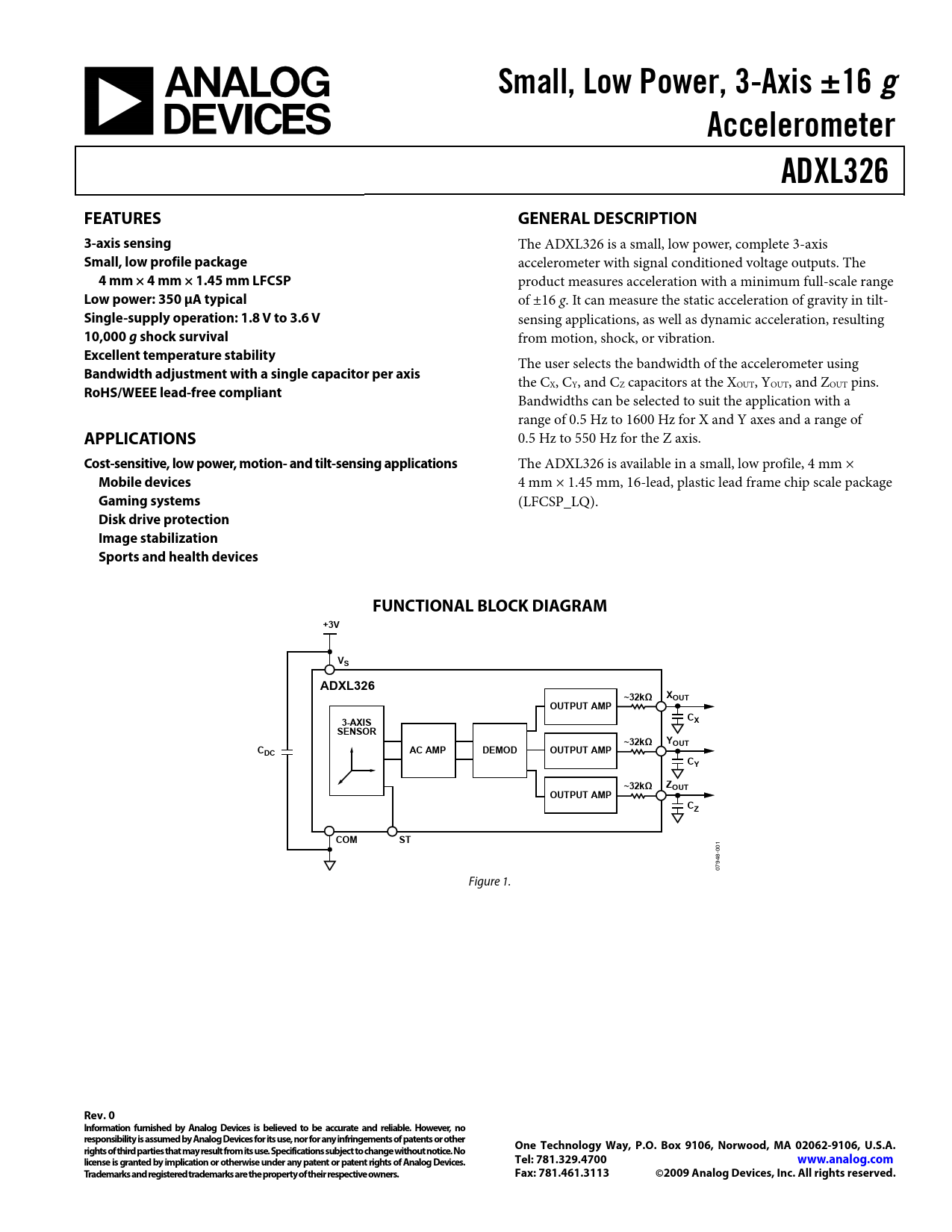

Small, Low Power, 3-Axis ±16 g. Accelerometer. ADXL326. FEATURES. GENERAL DESCRIPTION. 3-axis sensing. Small, low profile package
Model Line for this Datasheet
Text Version of Document
Small, Low Power, 3-Axis ±16 g Accelerometer ADXL326 FEATURES GENERAL DESCRIPTION 3-axis sensing
The ADXL326 is a small, low power, complete 3-axis
Small, low profile package
accelerometer with signal conditioned voltage outputs. The
4 mm × 4 mm × 1.45 mm LFCSP
product measures acceleration with a minimum full-scale range
Low power: 350 μA typical
of ±16 g. It can measure the static acceleration of gravity in tilt-
Single-supply operation: 1.8 V to 3.6 V
sensing applications, as well as dynamic acceleration, resulting
10,000 g shock survival
from motion, shock, or vibration.
Excellent temperature stability
The user selects the bandwidth of the accelerometer using
Bandwidth adjustment with a single capacitor per axis
the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins.
RoHS/WEEE lead-free compliant
Bandwidths can be selected to suit the application with a
range of 0.5 Hz to 1600 Hz for X and Y axes and a range of
APPLICATIONS
0.5 Hz to 550 Hz for the Z axis.
Cost-sensitive, low power, motion- and tilt-sensing applications
The ADXL326 is available in a small, low profile, 4 mm ×
Mobile devices
4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package
Gaming systems
(LFCSP_LQ).
Disk drive protection Image stabilization Sports and health devices FUNCTIONAL BLOCK DIAGRAM +3V VS ADXL326 X ~32kΩ OUT OUTPUT AMP C 3-AXIS X SENSOR ~32kΩ YOUT CDC AC AMP DEMOD OUTPUT AMP CY ~32kΩ ZOUT OUTPUT AMP CZ COM ST
