Datasheet ADXRS450 (Analog Devices) - 26

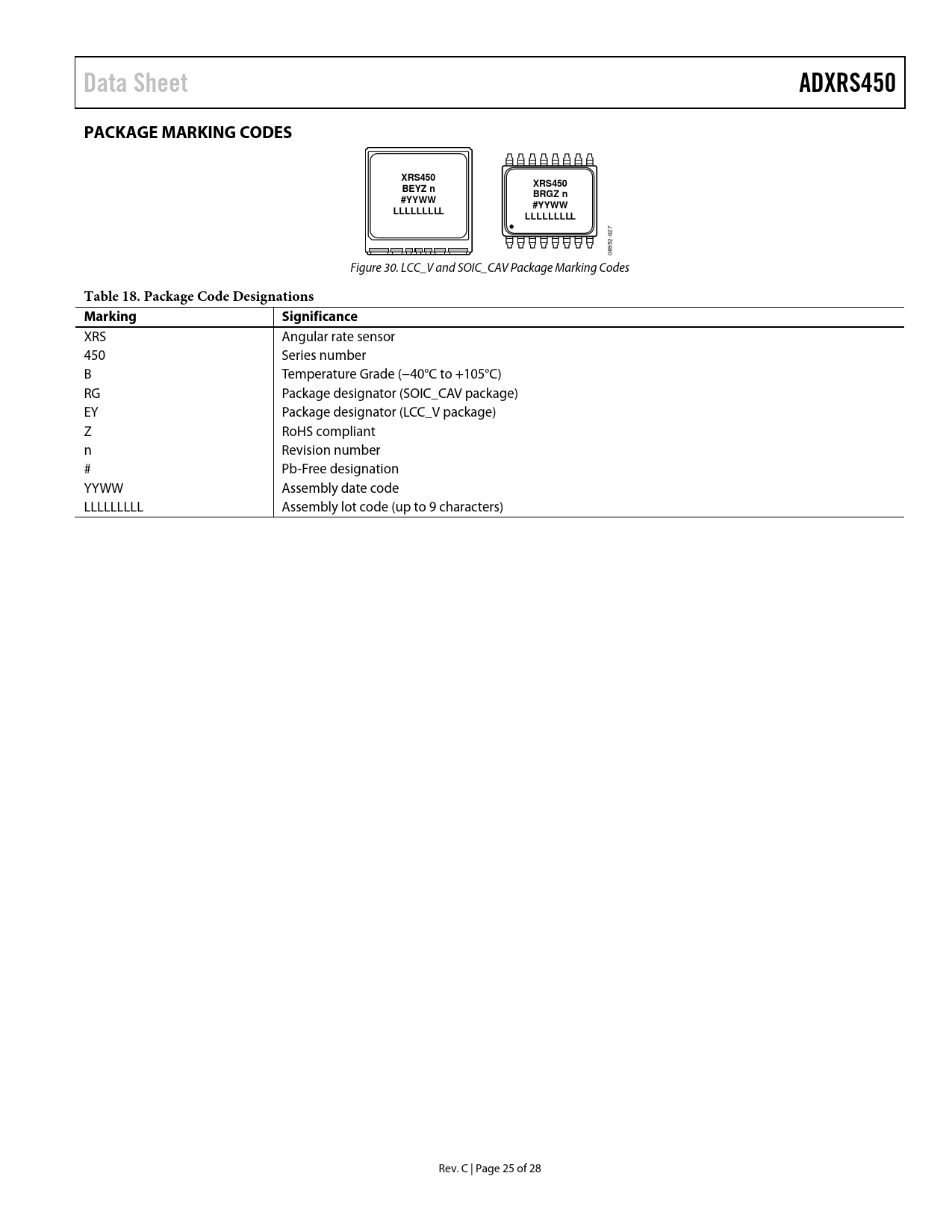

Data Sheet ADXRS450 PACKAGE MARKING CODES XRS450 XRS450 BEYZ n BRGZ n #YYWW #YYWW LLLLLLLLL LLLLLLLLL
027 08952- Figure 30. LCC_V and SOIC_CAV Package Marking Codes
Table 18. Package Code Designations Marking Significance
XRS Angular rate sensor 450 Series number B Temperature Grade (−40°C to +105°C) RG Package designator (SOIC_CAV package) EY Package designator (LCC_V package) Z RoHS compliant n Revision number # Pb-Free designation YYWW Assembly date code LLLLLLLLL Assembly lot code (up to 9 characters) Rev. C | Page 25 of 28 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings Thermal Resistance Rate Sensitive Axis ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Continuous Self-Test Applications Information Mechanical Considerations for Mounting Applications Circuits ADXRS450 Signal Chain Timing SPI Communication Protocol Command/Response SPI Communications Characteristics SPI Applications Device Data Latching Command/Response—Bit Definitions SQ2 to SQ0 SM2 to SM0 A8 to A0 D15 to D0 SPI ST1 to ST0 P P0 P1 RE DU Fault Register Bit Definitions PLL Q NVM POR PWR CST CHK OV UV Fail Amp K-Bit Assertion: Recommended Start-Up Routine SPI Rate Data Format Memory Map and Registers Memory Map Memory Register Definitions Rate Registers Temperature (TEMx) Registers Low CST (LOCST) Memory Registers High CST (HICST) Memory Registers Quad Memory Registers Fault Registers Part ID (PID) Registers Serial Number (SN) Registers Dynamic Null Correction (DNC) Registers Package Orientation and Layout Information Package Marking Codes Outline Dimensions Ordering Guide
