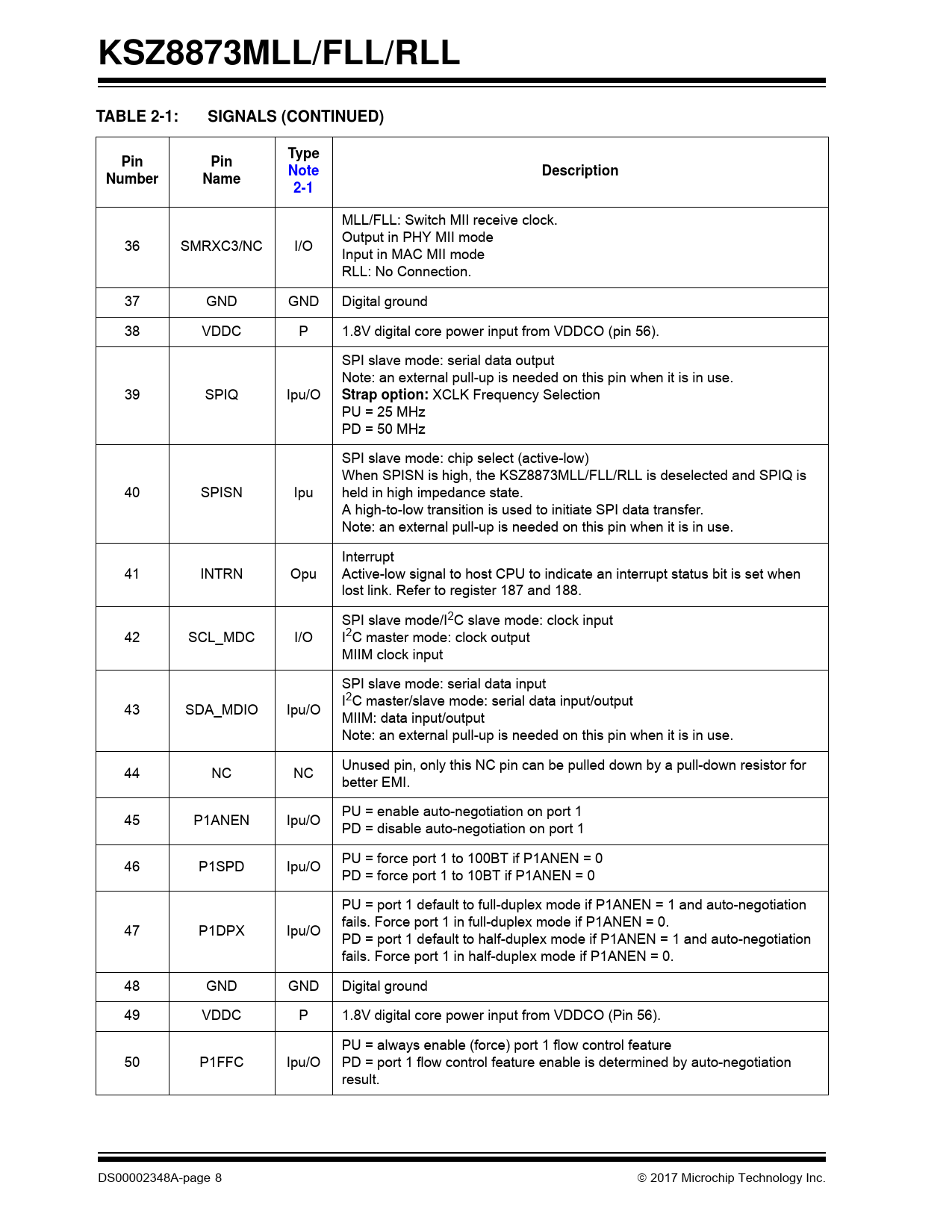

KSZ8873MLL/FLL/RLL TABLE 2-1: SIGNALS (CONTINUED) Type Pin Pin Note Description Number Name 2-1
MLL/FLL: Switch MII receive clock. Output in PHY MII mode 36 SMRXC3/NC I/O Input in MAC MII mode RLL: No Connection. 37 GND GND Digital ground 38 VDDC P 1.8V digital core power input from VDDCO (pin 56). SPI slave mode: serial data output Note: an external pull-up is needed on this pin when it is in use. 39 SPIQ Ipu/O
Strap option:
XCLK Frequency Selection PU = 25 MHz PD = 50 MHz SPI slave mode: chip select (active-low) When SPISN is high, the KSZ8873MLL/FLL/RLL is deselected and SPIQ is 40 SPISN Ipu held in high impedance state. A high-to-low transition is used to initiate SPI data transfer. Note: an external pull-up is needed on this pin when it is in use. Interrupt 41 INTRN Opu Active-low signal to host CPU to indicate an interrupt status bit is set when lost link. Refer to register 187 and 188. SPI slave mode/I2C slave mode: clock input 42 SCL_MDC I/O I2C master mode: clock output MIIM clock input SPI slave mode: serial data input I2C master/slave mode: serial data input/output 43 SDA_MDIO Ipu/O MIIM: data input/output Note: an external pull-up is needed on this pin when it is in use. Unused pin, only this NC pin can be pulled down by a pull-down resistor for 44 NC NC better EMI. PU = enable auto-negotiation on port 1 45 P1ANEN Ipu/O PD = disable auto-negotiation on port 1 PU = force port 1 to 100BT if P1ANEN = 0 46 P1SPD Ipu/O PD = force port 1 to 10BT if P1ANEN = 0 PU = port 1 default to full-duplex mode if P1ANEN = 1 and auto-negotiation fails. Force port 1 in full-duplex mode if P1ANEN = 0. 47 P1DPX Ipu/O PD = port 1 default to half-duplex mode if P1ANEN = 1 and auto-negotiation fails. Force port 1 in half-duplex mode if P1ANEN = 0. 48 GND GND Digital ground 49 VDDC P 1.8V digital core power input from VDDCO (Pin 56). PU = always enable (force) port 1 flow control feature 50 P1FFC Ipu/O PD = port 1 flow control feature enable is determined by auto-negotiation result. DS00002348A-page 8
