Datasheet SR502, SR503, SR504, SR505, SR506, SR508, SR5010 (MCC)
| Manufacturer | MCC |
| Description | 5 Amp Schottky Barrier Rectifier 50 to 100 Volts |
| Pages / Page | 3 / 1 — SR502. Micro Commercial Components. THRU. SR5010. 5 Amp Schottky. Barrier … |
| File Format / Size | PDF / 167 Kb |
| Document Language | English |

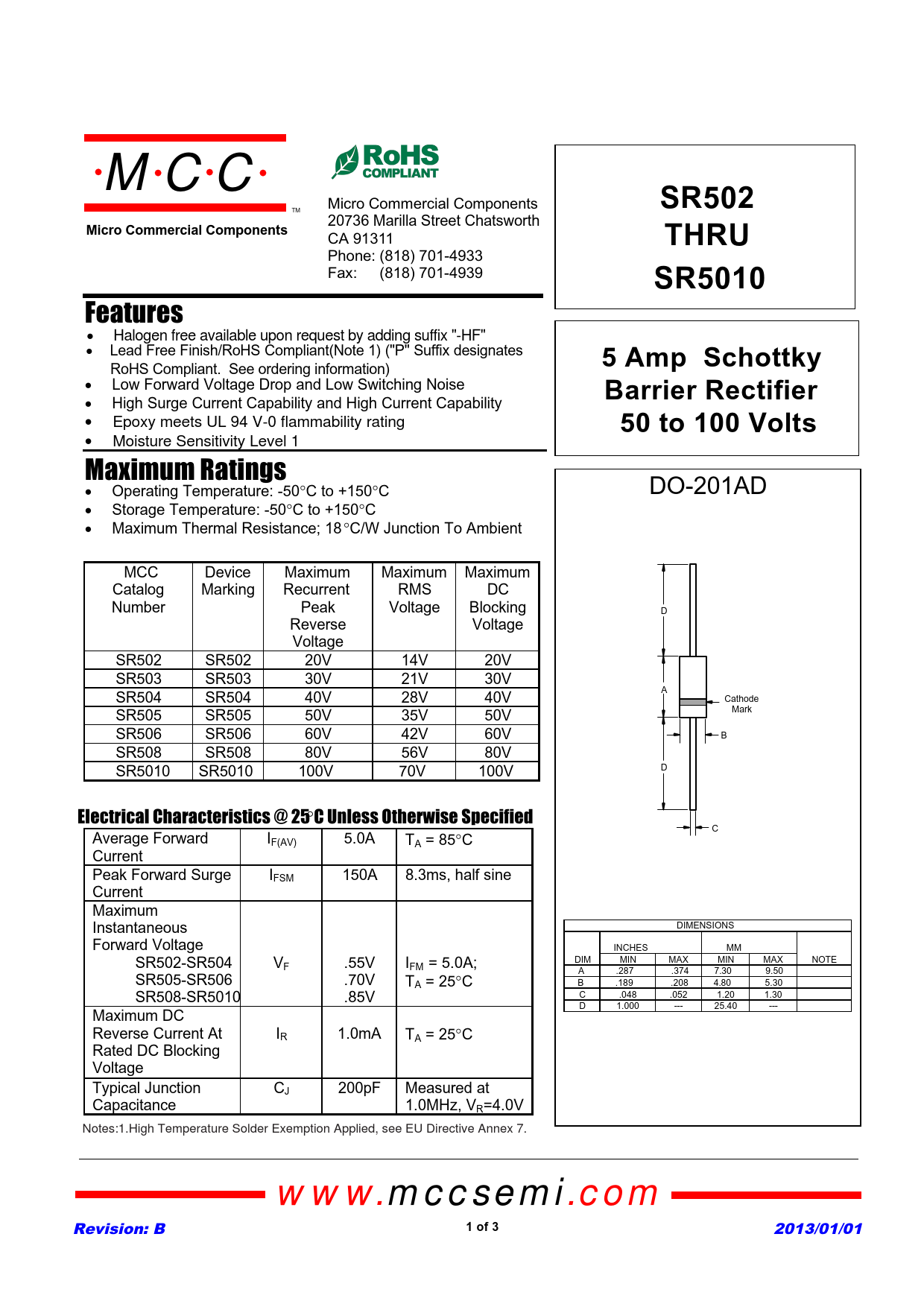

SR502. Micro Commercial Components. THRU. SR5010. 5 Amp Schottky. Barrier Rectifier. 50 to 100 Volts. 1 of 3
Model Line for this Datasheet
Text Version of Document
M C C TM omponents
SR502
20736 Marilla Street Chatsworth
Micro Commercial Components THRU
!"# $ % !"#
SR5010
Features • Halogen free available upon request by adding suffix "-HF" • Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
5 Amp Schottky
RoHS Compliant. See ordering information) • Low Forward Voltage Drop and Low Switching Noise
Barrier Rectifier
• High Surge Current Capability and High Current Capability • Epoxy meets UL 94 V-0 flammability rating
50 to 100 Volts
• Moisture Sensitivity Level 1 Maximum Ratings • Operating Temperature: -50°C to +150°C DO-201AD • Storage Temperature: -50°C to +150°C • Maximum Thermal Resistance; 18°C/W Junction To Ambient MCC Device Maximum Maximum Maximum Catalog Marking Recurrent RMS DC Number Peak Voltage Blocking D Reverse Voltage Voltage SR502 SR502 20V 14V 20V SR503 SR503 30V 21V 30V A SR504 SR504 40V 28V 40V Cathode SR505 SR505 50V 35V 50V Mark SR506 SR506 60V 42V 60V B SR508 SR508 80V 56V 80V SR5010 SR5010 100V 70V 100V D Electrical Characteristics @ 25°C Unless Otherwise Specified C Average Forward IF(AV) 5.0A TA = 85°C Current Peak Forward Surge IFSM 150A 8.3ms, half sine Current Maximum Instantaneous DIMENSIONS Forward Voltage INCHES MM DIM MIN MAX MIN MAX NOTE SR502-SR504 VF .55V IFM = 5.0A; A .287 .374 7.30 9.50 SR505-SR506 .70V TA = 25°C B .189 .208 4.80 5.30 C .048 .052 1.20 1.30 SR508-SR5010 .85V D 1.000 --- 25.40 --- Maximum DC Reverse Current At IR 1.0mA TA = 25°C Rated DC Blocking Voltage Typical Junction CJ 200pF Measured at Capacitance 1.0MHz, VR=4.0V Notes:1.High Temperature Solder Exemption Applied, see EU Directive Annex 7. www.mccsemi.com Revision: B
1 of 3
2013/01/01
