TYPICAL APPLICATIONS. 48V to 5V Isolated Flyback Converter. 48V to 15V Isolated Flyback Converter
Model Line for this Datasheet
Text Version of Document
LT3511

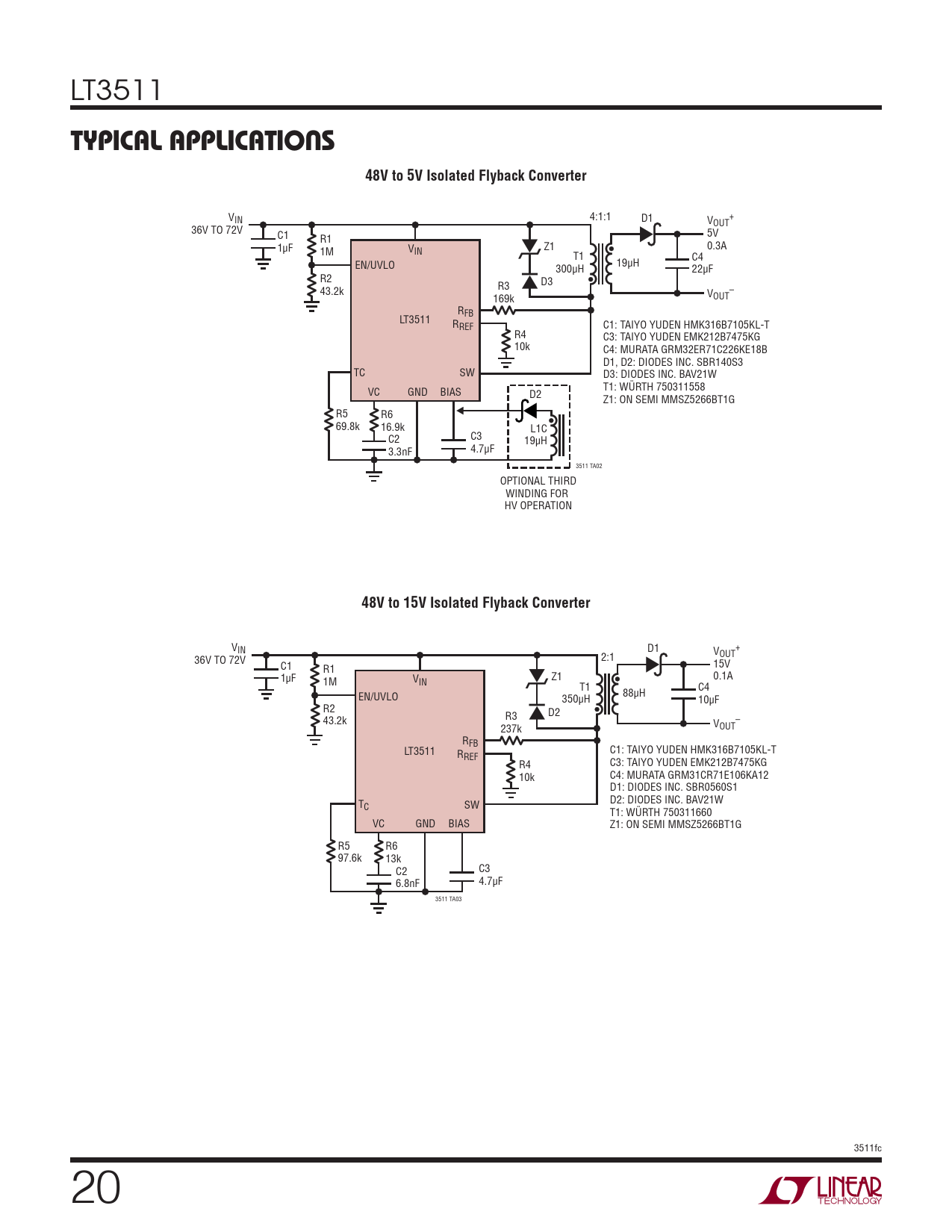

TYPICAL APPLICATIONS 48V to 5V Isolated Flyback Converter
VIN 4:1:1 D1 V + OUT 36V TO 72V 5V C1 R1 Z1 0.3A 1μF 1M VIN T1 C4 19μH EN/UVLO 300μH 22μF R2 D3 43.2k R3 V – OUT 169k RFB LT3511 RREF C1: TAIYO YUDEN HMK316B7105KL-T R4 C3: TAIYO YUDEN EMK212B7475KG 10k C4: MURATA GRM32ER71C226KE18B D1, D2: DIODES INC. SBR140S3 TC SW D3: DIODES INC. BAV21W T1: WÜRTH 750311558 VC GND BIAS D2 Z1: ON SEMI MMSZ5266BT1G R5 R6 69.8k 16.9k L1C C2 C3 19μH 3.3nF 4.7μF 3511 TA02 OPTIONAL THIRD WINDING FOR HV OPERATION
48V to 15V Isolated Flyback Converter
VIN D1 V + OUT 36V TO 72V 2:1 15V C1 R1 Z1 0.1A 1μF 1M VIN T1 C4 88μH EN/UVLO 350μH 10μF R2 D2 43.2k R3 V – OUT 237k RFB LT3511 R C1: TAIYO YUDEN HMK316B7105KL-T REF R4 C3: TAIYO YUDEN EMK212B7475KG 10k C4: MURATA GRM31CR71E106KA12 D1: DIODES INC. SBR0560S1 T D2: DIODES INC. BAV21W C SW T1: WÜRTH 750311660 VC GND BIAS Z1: ON SEMI MMSZ5266BT1G R5 R6 97.6k 13k C2 C3 6.8nF 4.7μF 3511 TA03 3511fc 20
TYPICAL APPLICATIONS 48V to 5V Isolated Flyback Converter
VIN 4:1:1 D1 V + OUT 36V TO 72V 5V C1 R1 Z1 0.3A 1μF 1M VIN T1 C4 19μH EN/UVLO 300μH 22μF R2 D3 43.2k R3 V – OUT 169k RFB LT3511 RREF C1: TAIYO YUDEN HMK316B7105KL-T R4 C3: TAIYO YUDEN EMK212B7475KG 10k C4: MURATA GRM32ER71C226KE18B D1, D2: DIODES INC. SBR140S3 TC SW D3: DIODES INC. BAV21W T1: WÜRTH 750311558 VC GND BIAS D2 Z1: ON SEMI MMSZ5266BT1G R5 R6 69.8k 16.9k L1C C2 C3 19μH 3.3nF 4.7μF 3511 TA02 OPTIONAL THIRD WINDING FOR HV OPERATION
48V to 15V Isolated Flyback Converter
VIN D1 V + OUT 36V TO 72V 2:1 15V C1 R1 Z1 0.1A 1μF 1M VIN T1 C4 88μH EN/UVLO 350μH 10μF R2 D2 43.2k R3 V – OUT 237k RFB LT3511 R C1: TAIYO YUDEN HMK316B7105KL-T REF R4 C3: TAIYO YUDEN EMK212B7475KG 10k C4: MURATA GRM31CR71E106KA12 D1: DIODES INC. SBR0560S1 T D2: DIODES INC. BAV21W C SW T1: WÜRTH 750311660 VC GND BIAS Z1: ON SEMI MMSZ5266BT1G R5 R6 97.6k 13k C2 C3 6.8nF 4.7μF 3511 TA03 3511fc 20
