Datasheet ADR01, ADR02, ADR03, ADR06 (Analog Devices) - 5

ManufacturerAnalog Devices
DescriptionUltracompact, Precision 3.0 V Voltage Reference
Pages / Page20 / 5 — Data Sheet. ADR01/ADR02/ADR03/ADR06. ADR02 ELECTRICAL CHARACTERISTICS. …
RevisionR
File Format / SizePDF / 516 Kb
Document LanguageEnglish

Data Sheet. ADR01/ADR02/ADR03/ADR06. ADR02 ELECTRICAL CHARACTERISTICS. Table 3. Parameter. Symbol. Conditions. Min. Typ. Max. Unit

Data Sheet ADR01/ADR02/ADR03/ADR06 ADR02 ELECTRICAL CHARACTERISTICS Table 3 Parameter Symbol Conditions Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

link to page 7

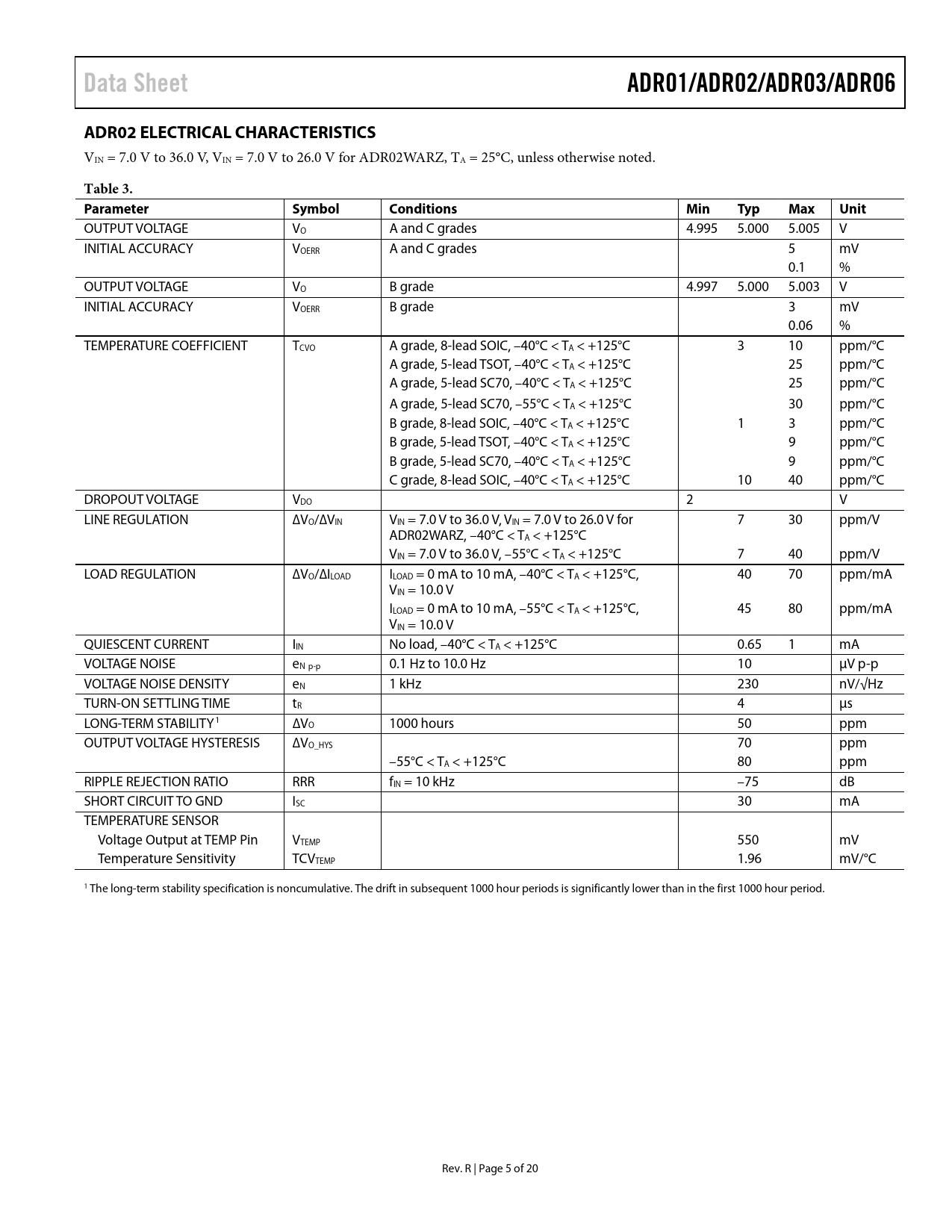

Data Sheet ADR01/ADR02/ADR03/ADR06 ADR02 ELECTRICAL CHARACTERISTICS
VIN = 7.0 V to 36.0 V, VIN = 7.0 V to 26.0 V for ADR02WARZ, TA = 25°C, unless otherwise noted.
Table 3. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VO A and C grades 4.995 5.000 5.005 V INITIAL ACCURACY VOERR A and C grades 5 mV 0.1 % OUTPUT VOLTAGE VO B grade 4.997 5.000 5.003 V INITIAL ACCURACY VOERR B grade 3 mV 0.06 % TEMPERATURE COEFFICIENT TCVO A grade, 8-lead SOIC, –40°C < TA < +125°C 3 10 ppm/°C A grade, 5-lead TSOT, –40°C < TA < +125°C 25 ppm/°C A grade, 5-lead SC70, –40°C < TA < +125°C 25 ppm/°C A grade, 5-lead SC70, –55°C < TA < +125°C 30 ppm/°C B grade, 8-lead SOIC, –40°C < TA < +125°C 1 3 ppm/°C B grade, 5-lead TSOT, –40°C < TA < +125°C 9 ppm/°C B grade, 5-lead SC70, –40°C < TA < +125°C 9 ppm/°C C grade, 8-lead SOIC, –40°C < TA < +125°C 10 40 ppm/°C DROPOUT VOLTAGE VDO 2 V LINE REGULATION ∆VO/∆VIN VIN = 7.0 V to 36.0 V, VIN = 7.0 V to 26.0 V for 7 30 ppm/V ADR02WARZ, –40°C < TA < +125°C VIN = 7.0 V to 36.0 V, –55°C < TA < +125°C 7 40 ppm/V LOAD REGULATION ∆VO/∆ILOAD ILOAD = 0 mA to 10 mA, –40°C < TA < +125°C, 40 70 ppm/mA VIN = 10.0 V ILOAD = 0 mA to 10 mA, –55°C < TA < +125°C, 45 80 ppm/mA VIN = 10.0 V QUIESCENT CURRENT IIN No load, –40°C < TA < +125°C 0.65 1 mA VOLTAGE NOISE eN p-p 0.1 Hz to 10.0 Hz 10 µV p-p VOLTAGE NOISE DENSITY eN 1 kHz 230 nV/√Hz TURN-ON SETTLING TIME tR 4 µs LONG-TERM STABILITY1 ∆VO 1000 hours 50 ppm OUTPUT VOLTAGE HYSTERESIS ∆VO_HYS 70 ppm –55°C < TA < +125°C 80 ppm RIPPLE REJECTION RATIO RRR fIN = 10 kHz –75 dB SHORT CIRCUIT TO GND ISC 30 mA TEMPERATURE SENSOR Voltage Output at TEMP Pin VTEMP 550 mV Temperature Sensitivity TCVTEMP 1.96 mV/°C 1 The long-term stability specification is noncumulative. The drift in subsequent 1000 hour periods is significantly lower than in the first 1000 hour period. Rev. R | Page 5 of 20 Document Outline Features Applications Pin Configurations General Description Revision History Specifications ADR01 Electrical Characteristics ADR02 Electrical Characteristics ADR03 Electrical Characteristics ADR06 Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Terminology Typical Performance Characteristics Applications Information Overview Applying the ADR01/ADR02/ADR03/ADR06 Input and Output Capacitors Output Adjustment Temperature Monitoring Low Cost Current Source Precision Current Source with Adjustable Output Programmable 4 mA to 20 mA Current Transmitter Precision Boosted Output Regulator Outline Dimensions Ordering Guides ADR01 Ordering Guide ADR02 Ordering Guide ADR03 Ordering Guide ADR06 Ordering Guide Automotive Products
