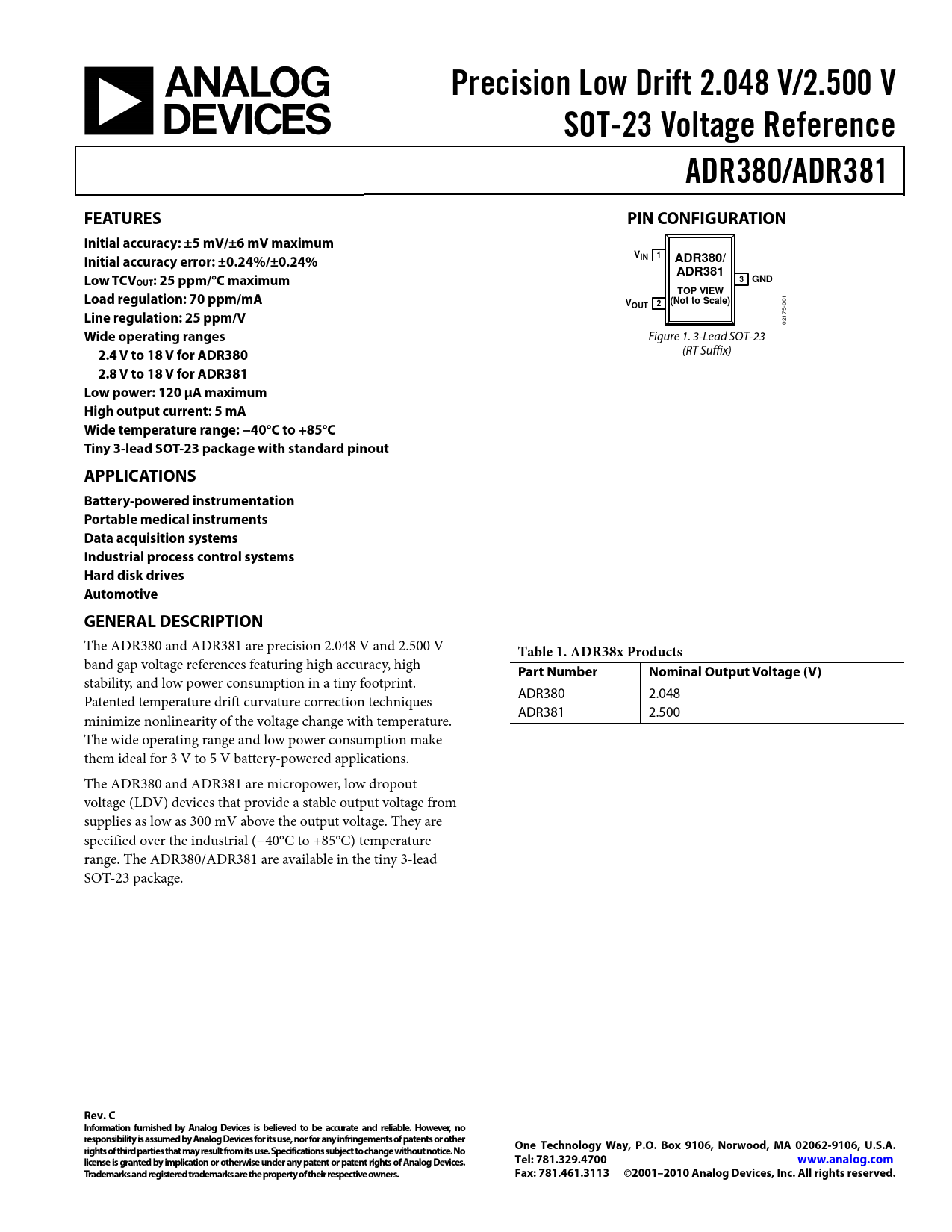

Precision Low Drift 2.048 V/2.500 V SOT-23 Voltage Reference ADR380/ADR381
FEATURES PIN CONFIGURATION Initial accuracy: ±5 mV/±6 mV maximum V Initial accuracy error: ±0.24%/±0.24% IN 1 ADR380/ ADR381 Low TCV 3 GND OUT: 25 ppm/°C maximum TOP VIEW Load regulation: 70 ppm/mA
1
V (Not to Scale) OUT 2
-00 75
Line regulation: 25 ppm/V
021
Wide operating ranges
Figure 1. 3-Lead SOT-23
2.4 V to 18 V for ADR380
(RT Suffix)
2.8 V to 18 V for ADR381 Low power: 120 μA maximum High output current: 5 mA Wide temperature range: −40°C to +85°C Tiny 3-lead SOT-23 package with standard pinout APPLICATIONS Battery-powered instrumentation Portable medical instruments Data acquisition systems Industrial process control systems Hard disk drives Automotive GENERAL DESCRIPTION
The ADR380 and ADR381 are precision 2.048 V and 2.500 V
Table 1. ADR38x Products
band gap voltage references featuring high accuracy, high
Part Number Nominal Output Voltage (V)
stability, and low power consumption in a tiny footprint. ADR380 2.048 Patented temperature drift curvature correction techniques ADR381 2.500 minimize nonlinearity of the voltage change with temperature. The wide operating range and low power consumption make them ideal for 3 V to 5 V battery-powered applications. The ADR380 and ADR381 are micropower, low dropout voltage (LDV) devices that provide a stable output voltage from supplies as low as 300 mV above the output voltage. They are specified over the industrial (−40°C to +85°C) temperature range. The ADR380/ADR381 are available in the tiny 3-lead SOT-23 package.
