Datasheet ADR291W (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Low Noise Micropower Precision Voltage Reference (2.5 V) |
| Pages / Page | 8 / 4 — ADR291W. ABSOLUTE MAXIMUM RATINGS. Table 6. Package Type. Package Type. θ … |
| File Format / Size | PDF / 128 Kb |
| Document Language | English |

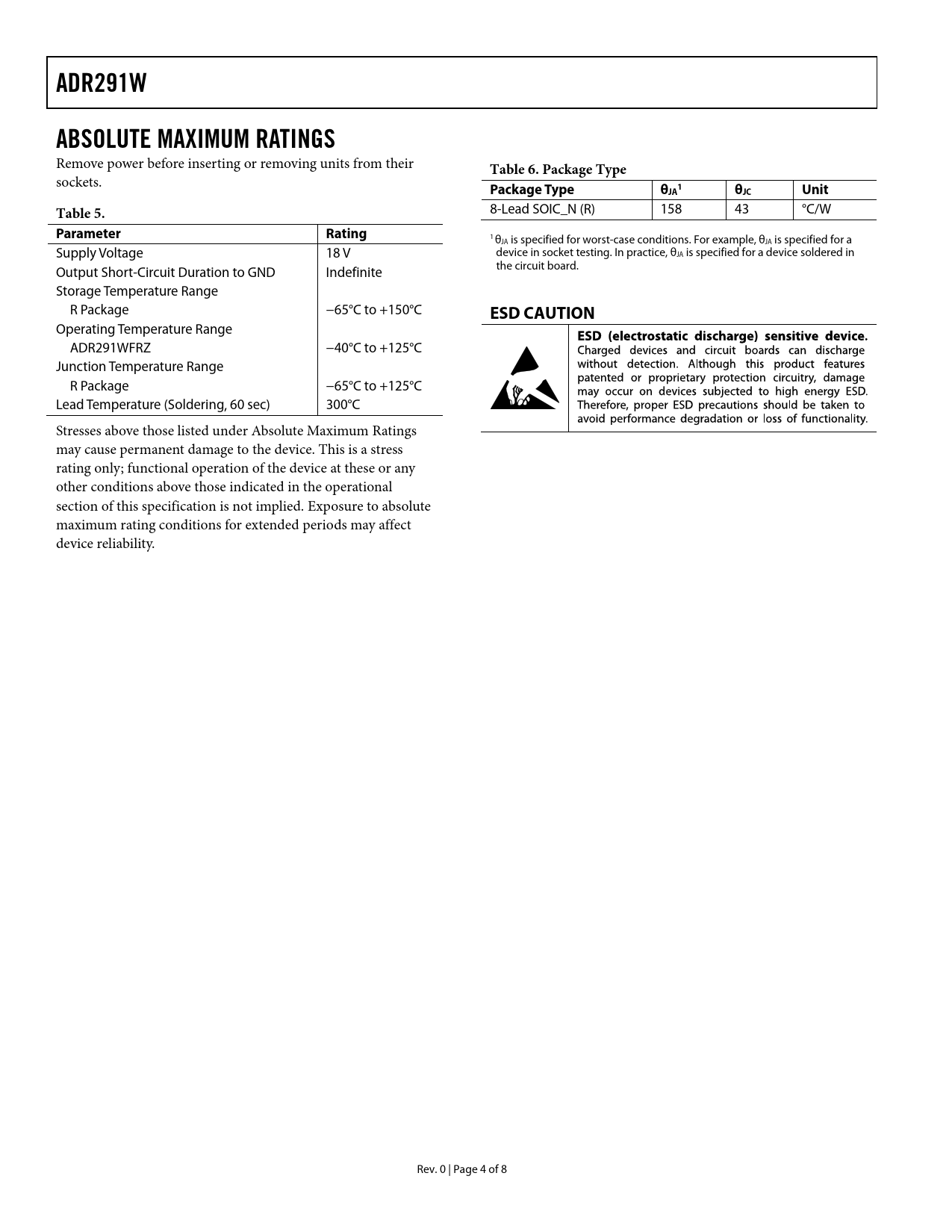

ADR291W. ABSOLUTE MAXIMUM RATINGS. Table 6. Package Type. Package Type. θ 1. θJC. Unit. Table 5. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 4
ADR291W ABSOLUTE MAXIMUM RATINGS
Remove power before inserting or removing units from their
Table 6. Package Type
sockets.
Package Type θ 1 JA θJC Unit Table 5.
8-Lead SOIC_N (R) 158 43 °C/W
Parameter Rating
1 θJA is specified for worst-case conditions. For example, θJA is specified for a Supply Voltage 18 V device in socket testing. In practice, θJA is specified for a device soldered in the circuit board. Output Short-Circuit Duration to GND Indefinite Storage Temperature Range R Package −65°C to +150°C
ESD CAUTION
Operating Temperature Range ADR291WFRZ −40°C to +125°C Junction Temperature Range R Package −65°C to +125°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 4 of 8 Document Outline Features Applications Connection Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions Ordering Guide
