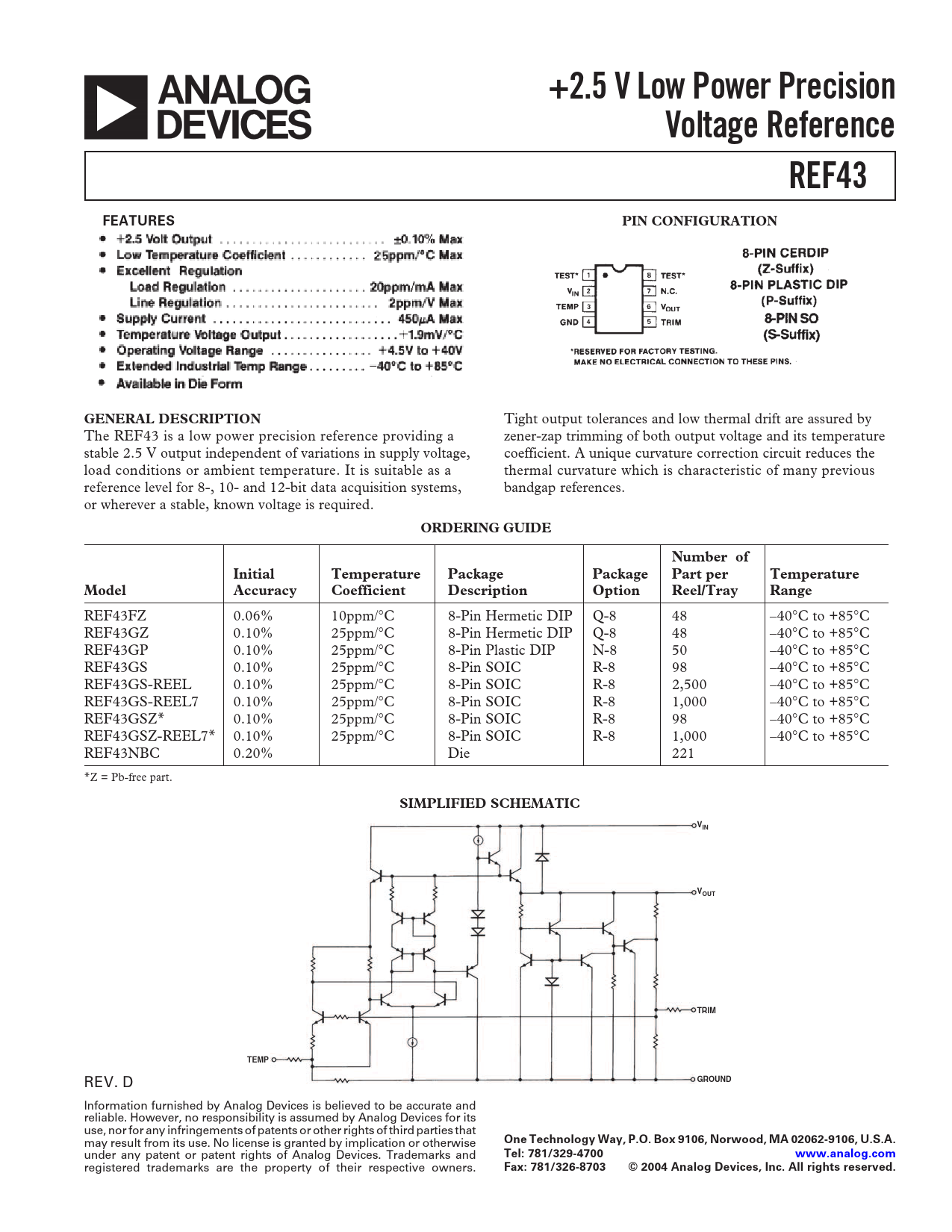

+2.5 V Low Power Precision Voltage Reference REF43 FEATURES PIN CONFIGURATION GENERAL DESCRIPTION
Tight output tolerances and low thermal drift are assured by The REF43 is a low power precision reference providing a zener-zap trimming of both output voltage and its temperature stable 2.5 V output independent of variations in supply voltage, coefficient. A unique curvature correction circuit reduces the load conditions or ambient temperature. It is suitable as a thermal curvature which is characteristic of many previous reference level for 8-, 10- and 12-bit data acquisition systems, bandgap references. or wherever a stable, known voltage is required.
ORDERING GUIDE Number of Initial Temperature Package Package Part per Temperature Model Accuracy Coefficient Description Option Reel/Tray Range
REF43FZ 0.06% 10ppm/∞C 8-Pin Hermetic DIP Q-8 48 –40∞C to +85∞C REF43GZ 0.10% 25ppm/∞C 8-Pin Hermetic DIP Q-8 48 –40∞C to +85∞C REF43GP 0.10% 25ppm/∞C 8-Pin Plastic DIP N-8 50 –40∞C to +85∞C REF43GS 0.10% 25ppm/∞C 8-Pin SOIC R-8 98 –40∞C to +85∞C REF43GS-REEL 0.10% 25ppm/∞C 8-Pin SOIC R-8 2,500 –40∞C to +85∞C REF43GS-REEL7 0.10% 25ppm/∞C 8-Pin SOIC R-8 1,000 –40∞C to +85∞C REF43GSZ* 0.10% 25ppm/∞C 8-Pin SOIC R-8 98 –40∞C to +85∞C REF43GSZ-REEL7* 0.10% 25ppm/∞C 8-Pin SOIC R-8 1,000 –40∞C to +85∞C REF43NBC 0.20% Die 221 *Z = Pb-free part.
SIMPLIFIED SCHEMATIC VIN VOUT TRIM TEMP
