| Manufacturer | Analog Devices |
| Description | High Precision 10 V Reference |
| Pages / Page | 12 / 3 — AD587. SPECIFICATIONS. Table 1. AD587J. AD587K. AD587U. Parameter. Min … |
| Revision | H |
| File Format / Size | PDF / 363 Kb |
| Document Language | English |

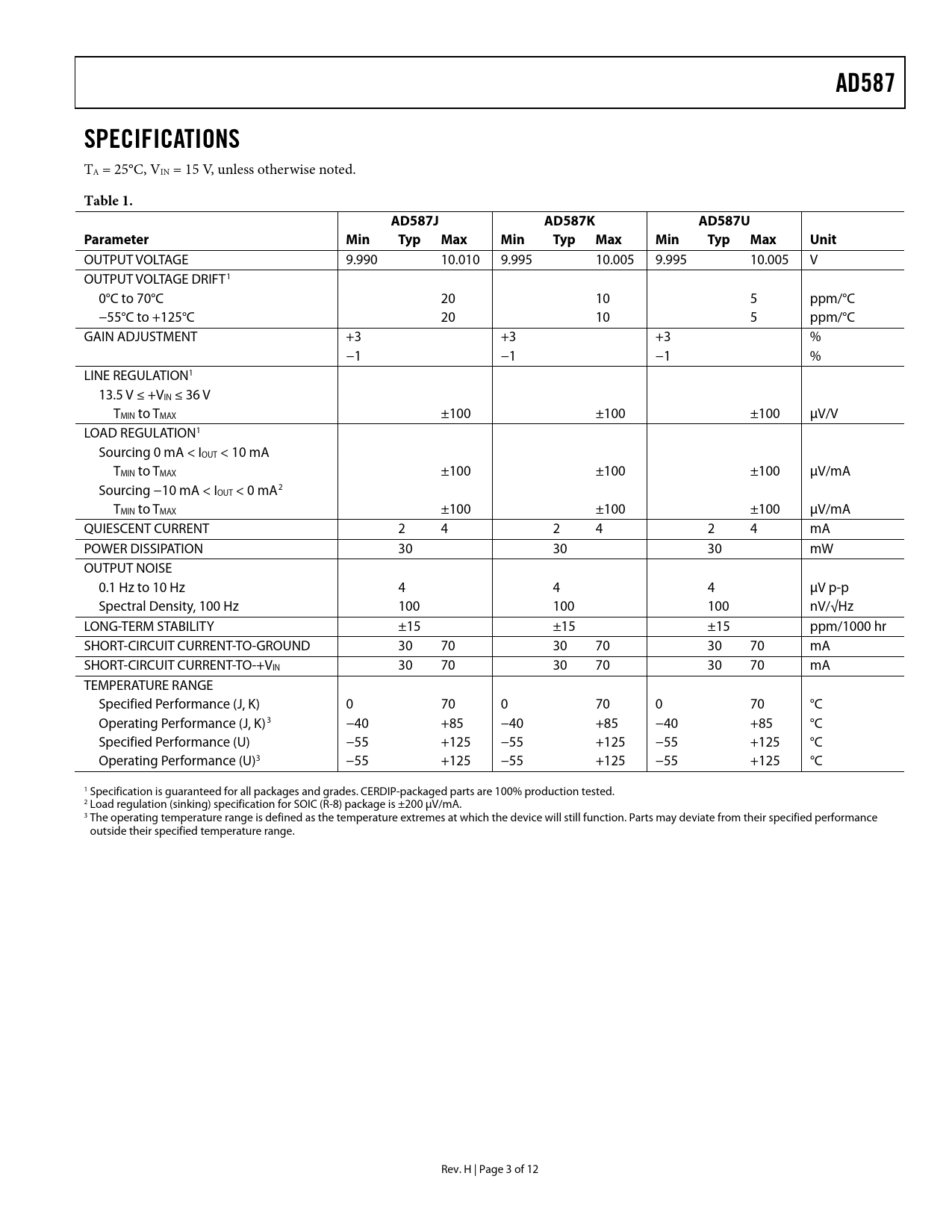

AD587. SPECIFICATIONS. Table 1. AD587J. AD587K. AD587U. Parameter. Min Typ. Max Min Typ. Max Unit
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3
AD587 SPECIFICATIONS
TA = 25°C, VIN = 15 V, unless otherwise noted.
Table 1. AD587J AD587K AD587U Parameter Min Typ Max Min Typ Max Min Typ Max Unit
OUTPUT VOLTAGE 9.990 10.010 9.995 10.005 9.995 10.005 V OUTPUT VOLTAGE DRIFT1 0°C to 70°C 20 10 5 ppm/°C −55°C to +125°C 20 10 5 ppm/°C GAIN ADJUSTMENT +3 +3 +3 % −1 −1 −1 % LINE REGULATION1 13.5 V ≤ +VIN ≤ 36 V TMIN to TMAX ±100 ±100 ±100 μV/V LOAD REGULATION1 Sourcing 0 mA < IOUT < 10 mA TMIN to TMAX ±100 ±100 ±100 μV/mA Sourcing −10 mA < IOUT < 0 mA2 TMIN to TMAX ±100 ±100 ±100 μV/mA QUIESCENT CURRENT 2 4 2 4 2 4 mA POWER DISSIPATION 30 30 30 mW OUTPUT NOISE 0.1 Hz to 10 Hz 4 4 4 μV p-p Spectral Density, 100 Hz 100 100 100 nV/√Hz LONG-TERM STABILITY ±15 ±15 ±15 ppm/1000 hr SHORT-CIRCUIT CURRENT-TO-GROUND 30 70 30 70 30 70 mA SHORT-CIRCUIT CURRENT-TO-+VIN 30 70 30 70 30 70 mA TEMPERATURE RANGE Specified Performance (J, K) 0 70 0 70 0 70 °C Operating Performance (J, K)3 −40 +85 −40 +85 −40 +85 °C Specified Performance (U) −55 +125 −55 +125 −55 +125 °C Operating Performance (U)3 −55 +125 −55 +125 −55 +125 °C 1 Specification is guaranteed for all packages and grades. CERDIP-packaged parts are 100% production tested. 2 Load regulation (sinking) specification for SOIC (R-8) package is ±200 μV/mA. 3 The operating temperature range is defined as the temperature extremes at which the device will still function. Parts may deviate from their specified performance outside their specified temperature range. Rev. H | Page 3 of 12 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLYING THE AD587 NOISE PERFORMANCE AND REDUCTION TURN-ON TIME DYNAMIC PERFORMANCE LOAD REGULATION TEMPERATURE PERFORMANCE NEGATIVE REFERENCE VOLTAGE FROM AN AD587 APPLICATIONS INFORMATION USING THE AD587 WITH CONVERTERS 10 V Reference with Multiplying CMOS DACs or ADCs Precision Current Source Precision High Current Supply OUTLINE DIMENSIONS ORDERING GUIDE
