Datasheet LT1019 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Precision Reference |
| Pages / Page | 12 / 3 — AVAILABLE OPTIO S. OUTPUT. TEMPERATURE. PACKAGE TYPE. VOLTAGE. ACCURACY. … |
| File Format / Size | PDF / 164 Kb |
| Document Language | English |

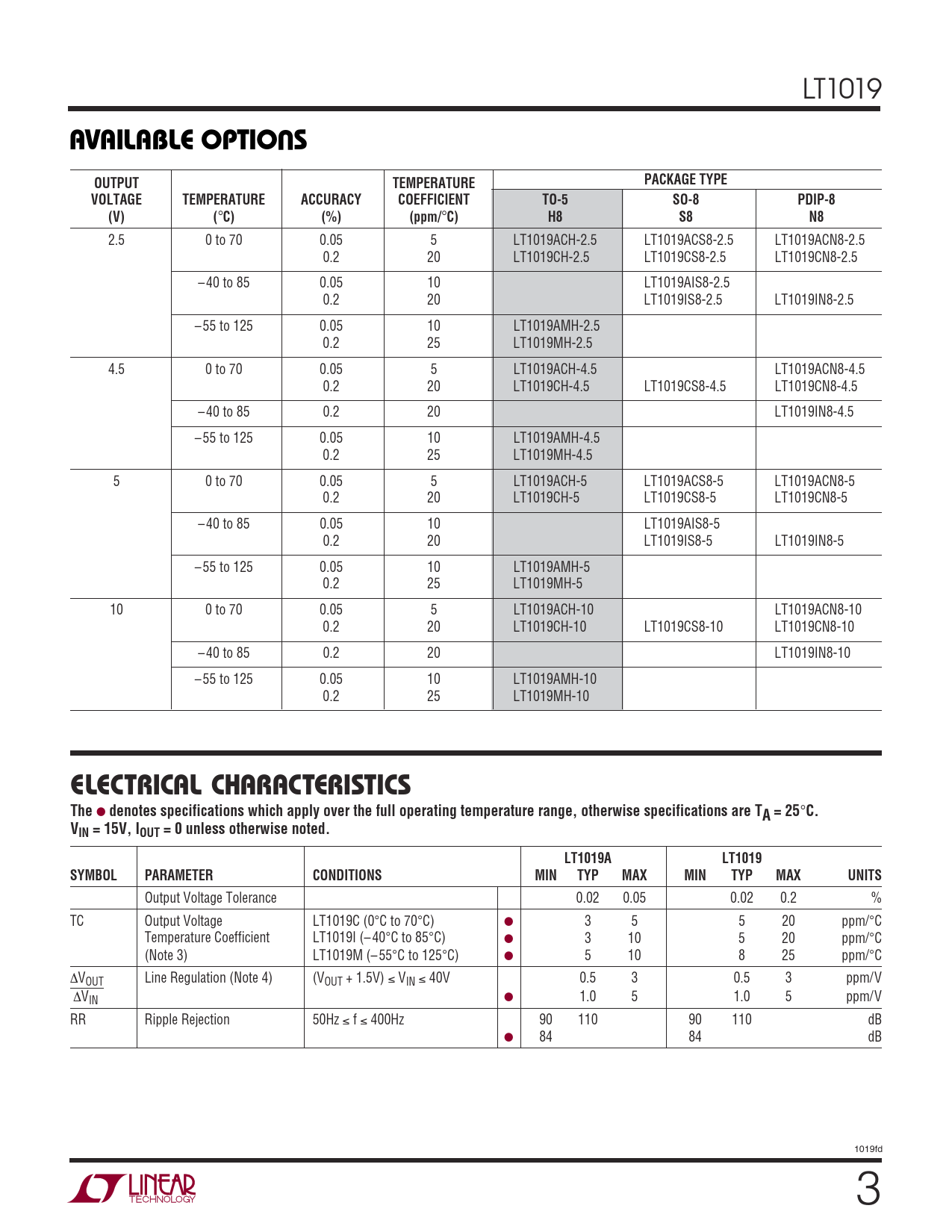

AVAILABLE OPTIO S. OUTPUT. TEMPERATURE. PACKAGE TYPE. VOLTAGE. ACCURACY. COEFFICIENT. TO-5. SO-8. PDIP-8. (V). (%). (ppm/. ELECTRICAL CH
Model Line for this Datasheet
- LT1019ACN8-10#PBF LT1019ACN8-2.5#PBF LT1019ACN8-4.5#PBF LT1019ACN8-5#PBF LT1019ACS8-2.5#PBF LT1019ACS8-2.5#TRPBF LT1019ACS8-5#PBF LT1019ACS8-5#TRPBF LT1019AIS8-2.5#PBF LT1019AIS8-2.5#TRPBF LT1019AIS8-5#PBF LT1019AIS8-5#TRPBF LT1019CN8-10#PBF LT1019CN8-2.5#PBF LT1019CN8-4.5#PBF LT1019CN8-5#PBF LT1019CS8-10#PBF LT1019CS8-10#TRPBF LT1019CS8-2.5#PBF LT1019CS8-2.5#TRPBF LT1019CS8-4.5#PBF LT1019CS8-4.5#TRPBF LT1019CS8-5#PBF LT1019CS8-5#TRPBF LT1019IN8-10#PBF LT1019IN8-2.5#PBF LT1019IN8-4.5#PBF LT1019IN8-5#PBF LT1019IS8-2.5#PBF LT1019IS8-2.5#TRPBF LT1019IS8-5#PBF LT1019IS8-5#TRPBF
Text Version of Document
LT1019
U AVAILABLE OPTIO S OUTPUT TEMPERATURE PACKAGE TYPE VOLTAGE TEMPERATURE ACCURACY COEFFICIENT TO-5 SO-8 PDIP-8 (V) (
°
C) (%) (ppm/
°
C) H8 S8 N8
2.5 0 to 70 0.05 5 LT1019ACH-2.5 LT1019ACS8-2.5 LT1019ACN8-2.5 0.2 20 LT1019CH-2.5 LT1019CS8-2.5 LT1019CN8-2.5 – 40 to 85 0.05 10 LT1019AIS8-2.5 0.2 20 LT1019IS8-2.5 LT1019IN8-2.5 – 55 to 125 0.05 10 LT1019AMH-2.5 0.2 25 LT1019MH-2.5 4.5 0 to 70 0.05 5 LT1019ACH-4.5 LT1019ACN8-4.5 0.2 20 LT1019CH-4.5 LT1019CS8-4.5 LT1019CN8-4.5 – 40 to 85 0.2 20 LT1019IN8-4.5 – 55 to 125 0.05 10 LT1019AMH-4.5 0.2 25 LT1019MH-4.5 5 0 to 70 0.05 5 LT1019ACH-5 LT1019ACS8-5 LT1019ACN8-5 0.2 20 LT1019CH-5 LT1019CS8-5 LT1019CN8-5 – 40 to 85 0.05 10 LT1019AIS8-5 0.2 20 LT1019IS8-5 LT1019IN8-5 – 55 to 125 0.05 10 LT1019AMH-5 0.2 25 LT1019MH-5 10 0 to 70 0.05 5 LT1019ACH-10 LT1019ACN8-10 0.2 20 LT1019CH-10 LT1019CS8-10 LT1019CN8-10 – 40 to 85 0.2 20 LT1019IN8-10 – 55 to 125 0.05 10 LT1019AMH-10 0.2 25 LT1019MH-10
ELECTRICAL CH C ARA TERISTICS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are TA = 25
°
C. VIN = 15V, IOUT = 0 unless otherwise noted. LT1019A LT1019 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Output Voltage Tolerance 0.02 0.05 0.02 0.2 % TC Output Voltage LT1019C (0°C to 70°C) ● 3 5 5 20 ppm/°C Temperature Coefficient LT1019I (– 40°C to 85°C) ● 3 10 5 20 ppm/°C (Note 3) LT1019M (– 55°C to 125°C) ● 5 10 8 25 ppm/°C ∆VOUT Line Regulation (Note 4) (VOUT + 1.5V) ≤ VIN ≤ 40V 0.5 3 0.5 3 ppm/V ∆VIN ● 1.0 5 1.0 5 ppm/V RR Ripple Rejection 50Hz ≤ f ≤ 400Hz 90 110 90 110 dB ● 84 84 dB 1019fd 3
