Datasheet LTM4620 (Analog Devices) - 40
| Manufacturer | Analog Devices |
| Description | Dual 13A or Single 26A DC/DC µModule Regulator |
| Pages / Page | 40 / 40 — PACKAGE PHOTO. LGA. BGA. RELATED PARTS PART NUMBER DESCRIPTION. COMMENTS. … |
| File Format / Size | PDF / 721 Kb |
| Document Language | English |
PACKAGE PHOTO. LGA. BGA. RELATED PARTS PART NUMBER DESCRIPTION. COMMENTS. DESIGN RESOURCES. SUBJECT. DESCRIPTION
Model Line for this Datasheet
Text Version of Document
LTM4620

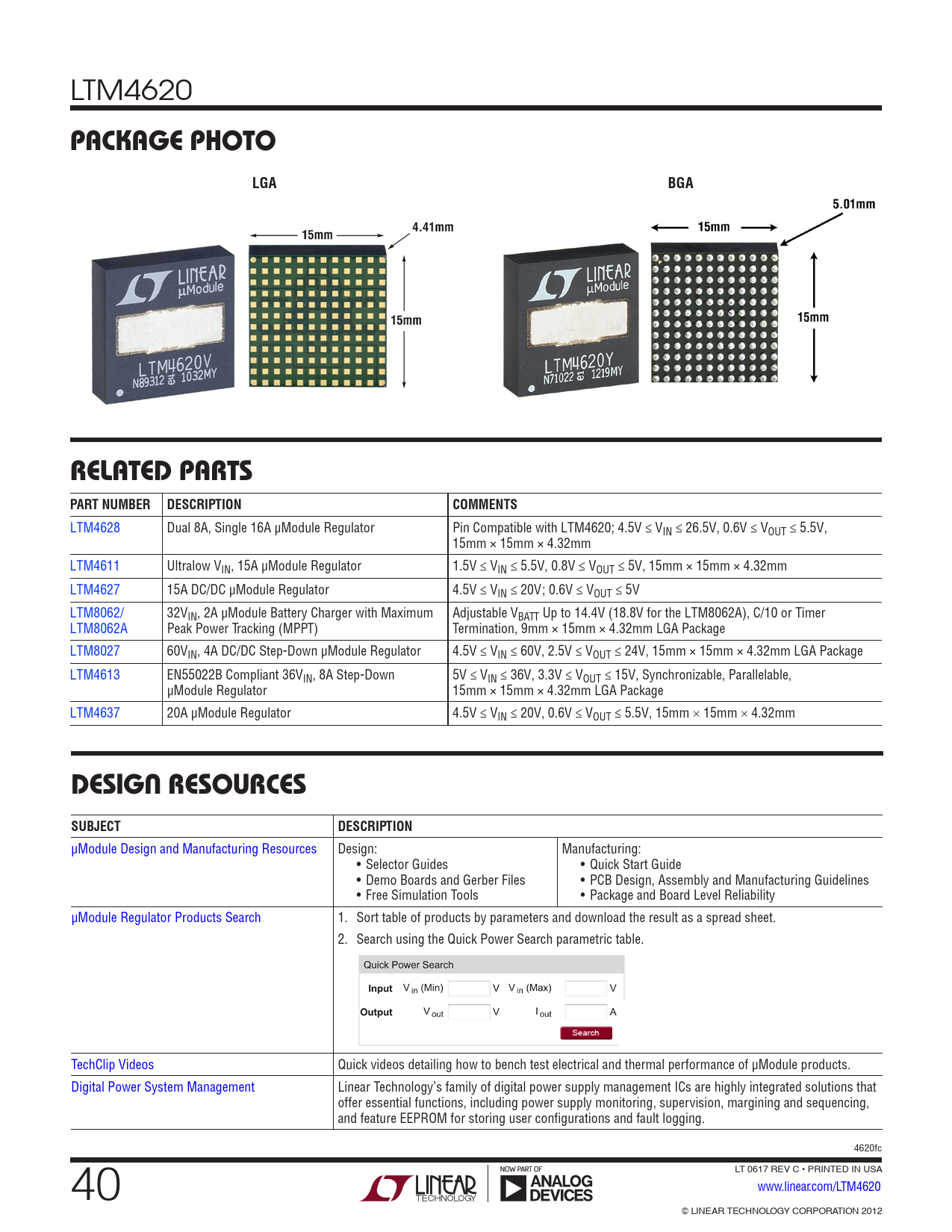

PACKAGE PHOTO LGA BGA RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LTM4628 Dual 8A, Single 16A µModule Regulator Pin Compatible with LTM4620; 4.5V ≤ VIN ≤ 26.5V, 0.6V ≤ VOUT ≤ 5.5V, 15mm × 15mm × 4.32mm LTM4611 Ultralow VIN, 15A µModule Regulator 1.5V ≤ VIN ≤ 5.5V, 0.8V ≤ VOUT ≤ 5V, 15mm × 15mm × 4.32mm LTM4627 15A DC/DC µModule Regulator 4.5V ≤ VIN ≤ 20V; 0.6V ≤ VOUT ≤ 5V LTM8062/ 32VIN, 2A µModule Battery Charger with Maximum Adjustable VBATT Up to 14.4V (18.8V for the LTM8062A), C/10 or Timer LTM8062A Peak Power Tracking (MPPT) Termination, 9mm × 15mm × 4.32mm LGA Package LTM8027 60VIN, 4A DC/DC Step-Down µModule Regulator 4.5V ≤ VIN ≤ 60V, 2.5V ≤ VOUT ≤ 24V, 15mm × 15mm × 4.32mm LGA Package LTM4613 EN55022B Compliant 36VIN, 8A Step-Down 5V ≤ VIN ≤ 36V, 3.3V ≤ VOUT ≤ 15V, Synchronizable, Parallelable, µModule Regulator 15mm × 15mm × 4.32mm LGA Package LTM4637 20A µModule Regulator 4.5V ≤ VIN ≤ 20V, 0.6V ≤ VOUT ≤ 5.5V, 15mm × 15mm × 4.32mm
DESIGN RESOURCES SUBJECT DESCRIPTION
µModule Design and Manufacturing Resources Design: Manufacturing: • Selector Guides • Quick Start Guide • Demo Boards and Gerber Files • PCB Design, Assembly and Manufacturing Guidelines • Free Simulation Tools • Package and Board Level Reliability µModule Regulator Products Search 1. Sort table of products by parameters and download the result as a spread sheet. 2. Search using the Quick Power Search parametric table. TechClip Videos Quick videos detailing how to bench test electrical and thermal performance of µModule products. Digital Power System Management Linear Technology’s family of digital power supply management ICs are highly integrated solutions that offer essential functions, including power supply monitoring, supervision, margining and sequencing, and feature EEPROM for storing user configurations and fault logging. 4620fc 40 LT 0617 REV C • PRINTED IN USA www.linear.com/LTM4620 For more information www.linear.com/LTM4620 LINEAR TECHNOLOGY CORPORATION 2012 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Package Photo Related Parts
