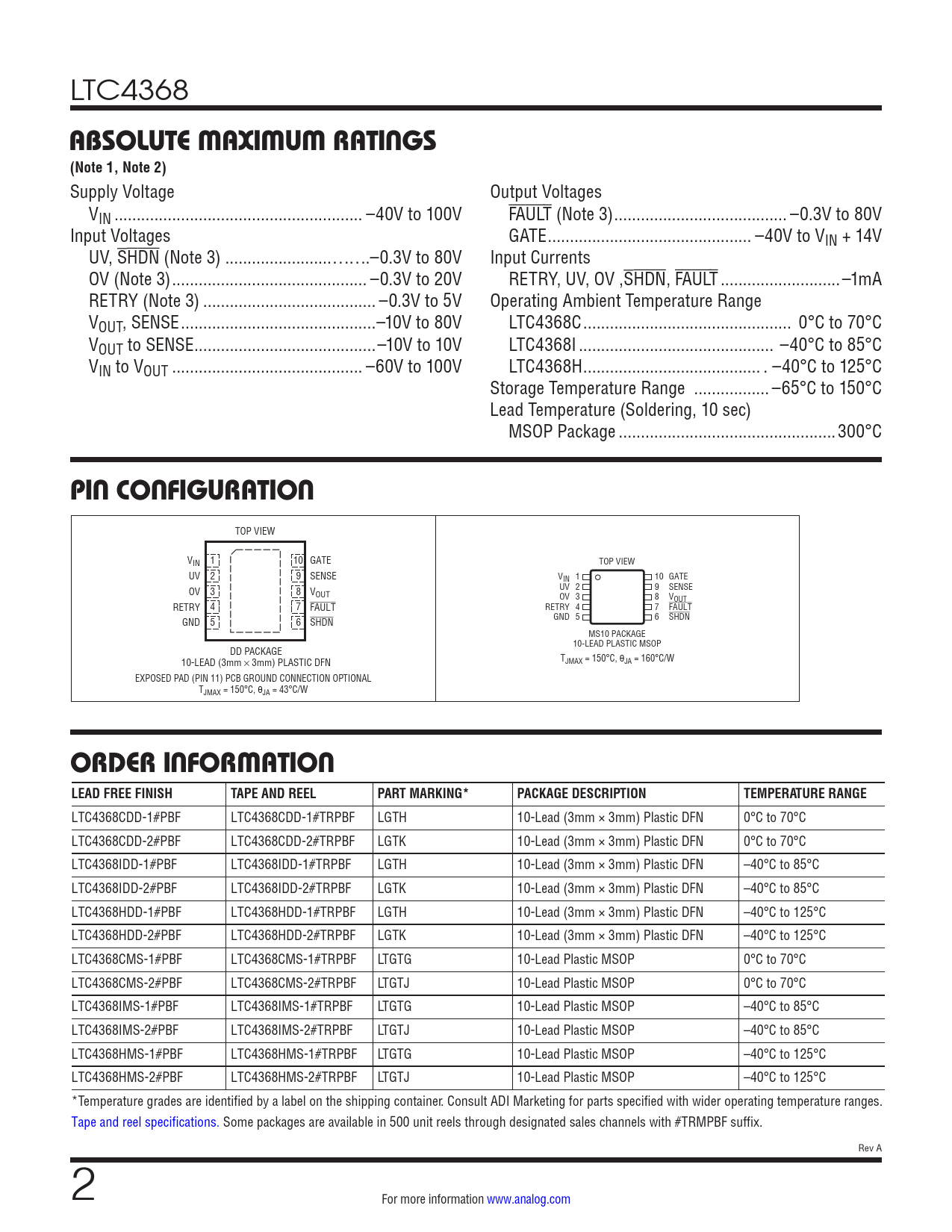

LTC4368
ABSOLUTE MAXIMUM RATINGS (Note 1, Note 2)
Supply Voltage Output Voltages VIN .. –40V to 100V FAULT (Note 3) ... –0.3V to 80V Input Voltages GATE .. –40V to VIN + 14V UV, SHDN (Note 3) ..…….–0.3V to 80V Input Currents OV (Note 3) .. –0.3V to 20V RETRY, UV, OV ,SHDN, FAULT ...–1mA RETRY (Note 3) ... –0.3V to 5V Operating Ambient Temperature Range VOUT, SENSE ..–10V to 80V LTC4368C ... 0°C to 70°C VOUT to SENSE ...–10V to 10V LTC4368I .. –40°C to 85°C VIN to VOUT ... –60V to 100V LTC4368H .. . –40°C to 125°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) MSOP Package ...300°C
PIN CONFIGURATION
TOP VIEW VIN 1 10 GATE TOP VIEW UV 2 9 SENSE VIN 1 10 GATE OV 3 8 V UV 2 9 SENSE OUT OV 3 8 VOUT RETRY 4 7 FAULT RETRY 4 7 FAULT GND 5 6 SHDN GND 5 6 SHDN MS10 PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 160°C/W EXPOSED PAD (PIN 11) PCB GROUND CONNECTION OPTIONAL TJMAX = 150°C, θJA = 43°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4368CDD-1#PBF LTC4368CDD-1#TRPBF LGTH 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4368CDD-2#PBF LTC4368CDD-2#TRPBF LGTK 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC4368IDD-1#PBF LTC4368IDD-1#TRPBF LGTH 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4368IDD-2#PBF LTC4368IDD-2#TRPBF LGTK 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC4368HDD-1#PBF LTC4368HDD-1#TRPBF LGTH 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4368HDD-2#PBF LTC4368HDD-2#TRPBF LGTK 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC4368CMS-1#PBF LTC4368CMS-1#TRPBF LTGTG 10-Lead Plastic MSOP 0°C to 70°C LTC4368CMS-2#PBF LTC4368CMS-2#TRPBF LTGTJ 10-Lead Plastic MSOP 0°C to 70°C LTC4368IMS-1#PBF LTC4368IMS-1#TRPBF LTGTG 10-Lead Plastic MSOP –40°C to 85°C LTC4368IMS-2#PBF LTC4368IMS-2#TRPBF LTGTJ 10-Lead Plastic MSOP –40°C to 85°C LTC4368HMS-1#PBF LTC4368HMS-1#TRPBF LTGTG 10-Lead Plastic MSOP –40°C to 125°C LTC4368HMS-2#PBF LTC4368HMS-2#TRPBF LTGTJ 10-Lead Plastic MSOP –40°C to 125°C *Temperature grades are identified by a label on the shipping container. Consult ADI Marketing for parts specified with wider operating temperature ranges. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev A 2 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Pin Functions Block Diagram Applications Information Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
