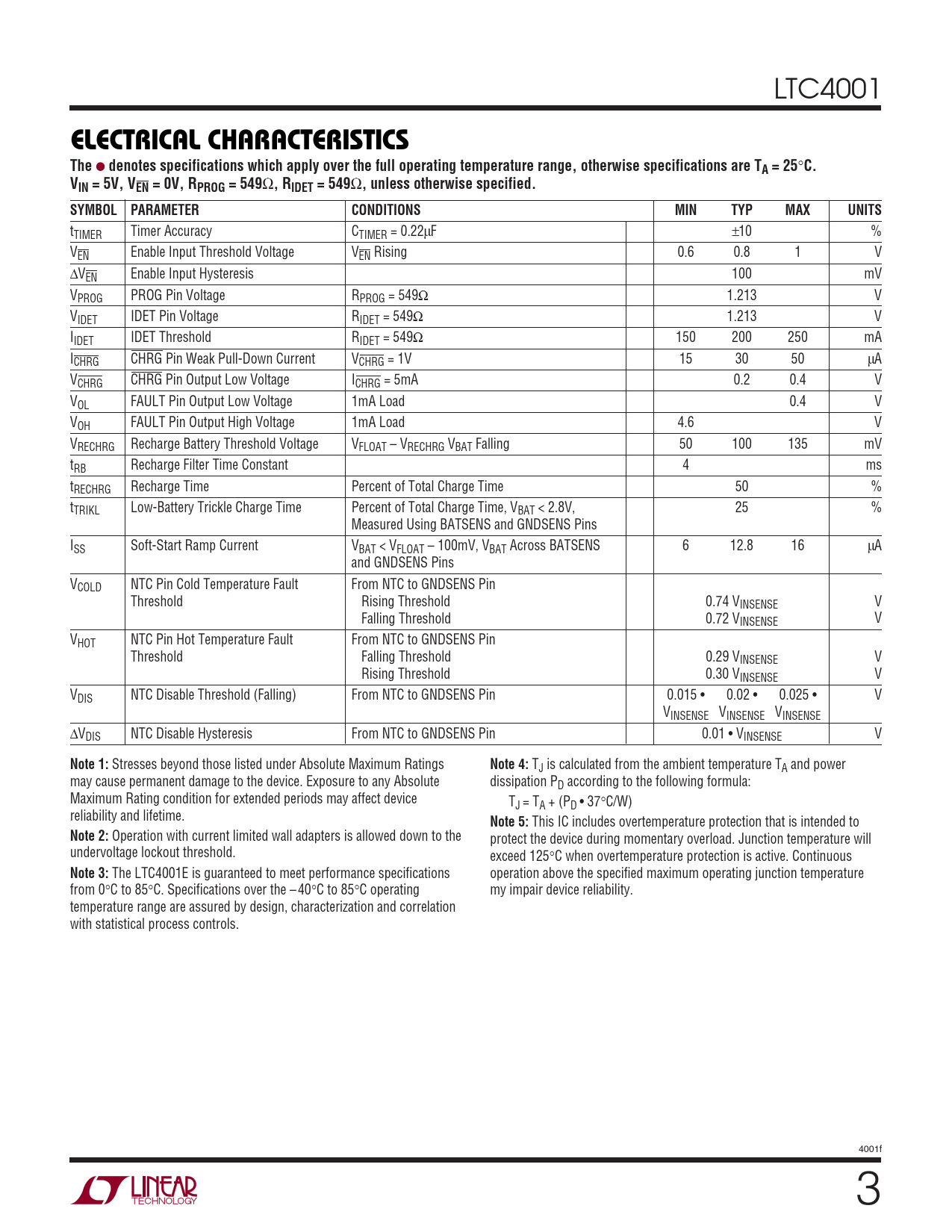

LTC4001
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are TA = 25
°
C. VIN = 5V, VEN = 0V, RPROG = 549
Ω
, RIDET = 549
Ω
, unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tTIMER Timer Accuracy CTIMER = 0.22µF ±10 % VEN Enable Input Threshold Voltage VEN Rising 0.6 0.8 1 V ∆VEN Enable Input Hysteresis 100 mV VPROG PROG Pin Voltage RPROG = 549Ω 1.213 V VIDET IDET Pin Voltage RIDET = 549Ω 1.213 V IIDET IDET Threshold RIDET = 549Ω 150 200 250 mA ICHRG CHRG Pin Weak Pull-Down Current VCHRG = 1V 15 30 50 µA VCHRG CHRG Pin Output Low Voltage ICHRG = 5mA 0.2 0.4 V VOL FAULT Pin Output Low Voltage 1mA Load 0.4 V VOH FAULT Pin Output High Voltage 1mA Load 4.6 V VRECHRG Recharge Battery Threshold Voltage VFLOAT – VRECHRG VBAT Falling 50 100 135 mV tRB Recharge Filter Time Constant 4 ms tRECHRG Recharge Time Percent of Total Charge Time 50 % tTRIKL Low-Battery Trickle Charge Time Percent of Total Charge Time, VBAT < 2.8V, 25 % Measured Using BATSENS and GNDSENS Pins ISS Soft-Start Ramp Current VBAT < VFLOAT – 100mV, VBAT Across BATSENS 6 12.8 16 µA and GNDSENS Pins VCOLD NTC Pin Cold Temperature Fault From NTC to GNDSENS Pin Threshold Rising Threshold 0.74 VINSENSE V Falling Threshold 0.72 VINSENSE V VHOT NTC Pin Hot Temperature Fault From NTC to GNDSENS Pin Threshold Falling Threshold 0.29 VINSENSE V Rising Threshold 0.30 VINSENSE V VDIS NTC Disable Threshold (Falling) From NTC to GNDSENS Pin 0.015 • 0.02 • 0.025 • V VINSENSE VINSENSE VINSENSE ∆VDIS NTC Disable Hysteresis From NTC to GNDSENS Pin 0.01 • VINSENSE V
