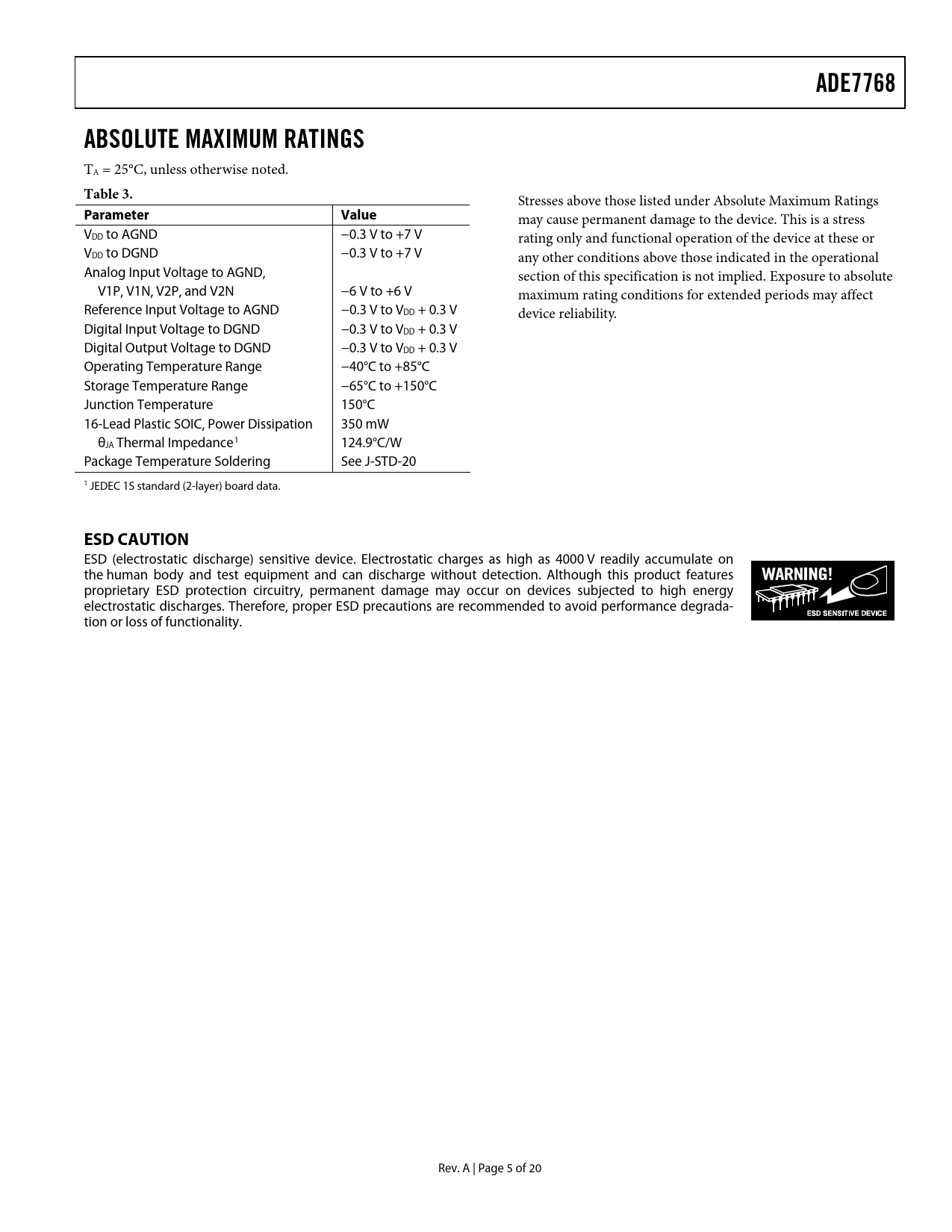

ADE7768. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Value. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADE7768 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Value
may cause permanent damage to the device. This is a stress VDD to AGND −0.3 V to +7 V rating only and functional operation of the device at these or VDD to DGND −0.3 V to +7 V any other conditions above those indicated in the operational Analog Input Voltage to AGND, section of this specification is not implied. Exposure to absolute V1P, V1N, V2P, and V2N −6 V to +6 V maximum rating conditions for extended periods may affect Reference Input Voltage to AGND −0.3 V to VDD + 0.3 V device reliability. Digital Input Voltage to DGND −0.3 V to VDD + 0.3 V Digital Output Voltage to DGND −0.3 V to V DD + 0.3 V Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 16-Lead Plastic SOIC, Power Dissipation 350 mW θJA Thermal Impedance1 124.9°C/W Package Temperature Soldering See J-STD-20 1 JEDEC 1S standard (2-layer) board data.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degrada- tion or loss of functionality. Rev. A | Page 5 of 20 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TERMINOLOGY PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL DESCRIPTION THEORY OF OPERATION Power Factor Considerations Nonsinusoidal Voltage and Current ANALOG INPUTS Channel V1 (Current Channel) Channel V2 (Voltage Channel) Typical Connection Diagrams POWER SUPPLY MONITOR HPF and Offset Effects Digital-to-Frequency Conversion Connecting to a Microcontroller for Energy Measurement Power Measurement Considerations INTERNAL OSCILLATOR (OSC) TRANSFER FUNCTION Frequency Outputs F1 and F2 Example Frequency Output CF SELECTING A FREQUENCY FOR AN ENERGY METER APPLICATION Frequency Outputs NO-LOAD THRESHOLD NEGATIVE POWER INFORMATION EVALUATION BOARD AND REFERENCE DESIGN BOARD OUTLINE DIMENSIONS ORDERING GUIDE
