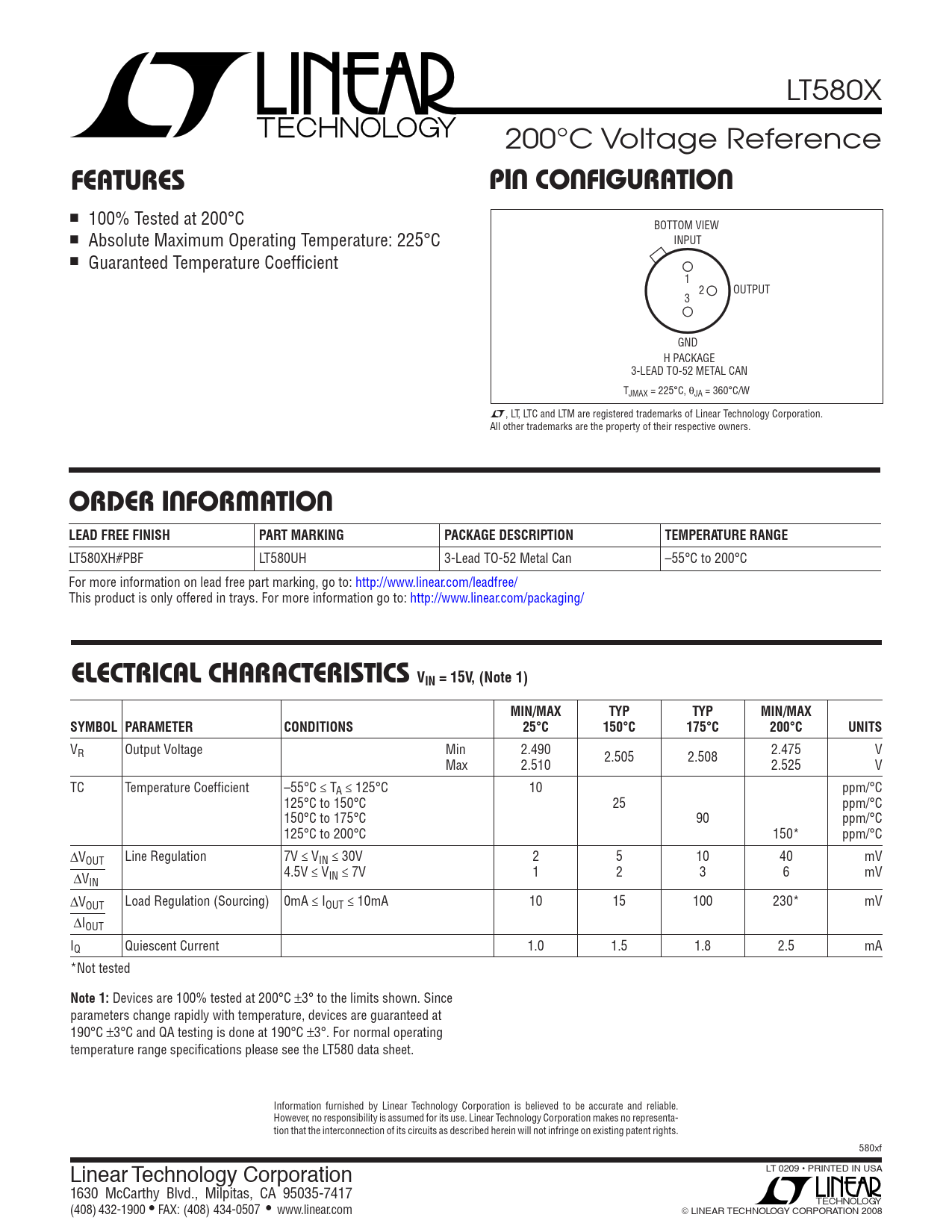

LT580X 200°C Voltage Reference
FEATURES PIN CONFIGURATION
n 100% Tested at 200°C BOTTOM VIEW n INPUT Absolute Maximum Operating Temperature: 225°C n Guaranteed Temperature Coeffi cient 1 2 OUTPUT 3 GND H PACKAGE 3-LEAD TO-52 METAL CAN TJMAX = 225°C, θJA = 360°C/W L, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
ORDER INFORMATION LEAD FREE FINISH PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT580XH#PBF LT580UH 3-Lead TO-52 Metal Can –55°C to 200°C For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
ELECTRICAL CHARACTERISTICS VIN = 15V, (Note 1) MIN/MAX TYP TYP MIN/MAX SYMBOL PARAMETER CONDITIONS 25°C 150°C 175°C 200°C UNITS
VR Output Voltage Min 2.490 2.475 V 2.505 2.508 Max 2.510 2.525 V TC Temperature Coeffi cient –55°C ≤ TA ≤ 125°C 10 ppm/°C 125°C to 150°C 25 ppm/°C 150°C to 175°C 90 ppm/°C 125°C to 200°C 150* ppm/°C ΔVOUT Line Regulation 7V ≤ VIN ≤ 30V 2 5 10 40 mV ΔV 4.5V ≤ VIN ≤ 7V 1 2 3 6 mV IN ΔVOUT Load Regulation (Sourcing) 0mA ≤ IOUT ≤ 10mA 10 15 100 230* mV ΔIOUT IQ Quiescent Current 1.0 1.5 1.8 2.5 mA *Not tested
Note 1:
Devices are 100% tested at 200°C ±3° to the limits shown. Since parameters change rapidly with temperature, devices are guaranteed at 190°C ±3°C and QA testing is done at 190°C ±3°. For normal operating temperature range specifi cations please see the LT580 data sheet. Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. 580xf Linear Technology Corporation LT 0209 • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com © LINEAR TECHNOLOGY CORPORATION 2008
