Datasheet ADR512W (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 1.2 V Precision Low Noise Shunt Voltage Reference |
| Pages / Page | 12 / 10 — ADR512W. OUTLINE DIMENSIONS. 3.04 2.90 2.80. 1.40 1.30 1.20. 2.64 2.10. … |
| File Format / Size | PDF / 316 Kb |
| Document Language | English |

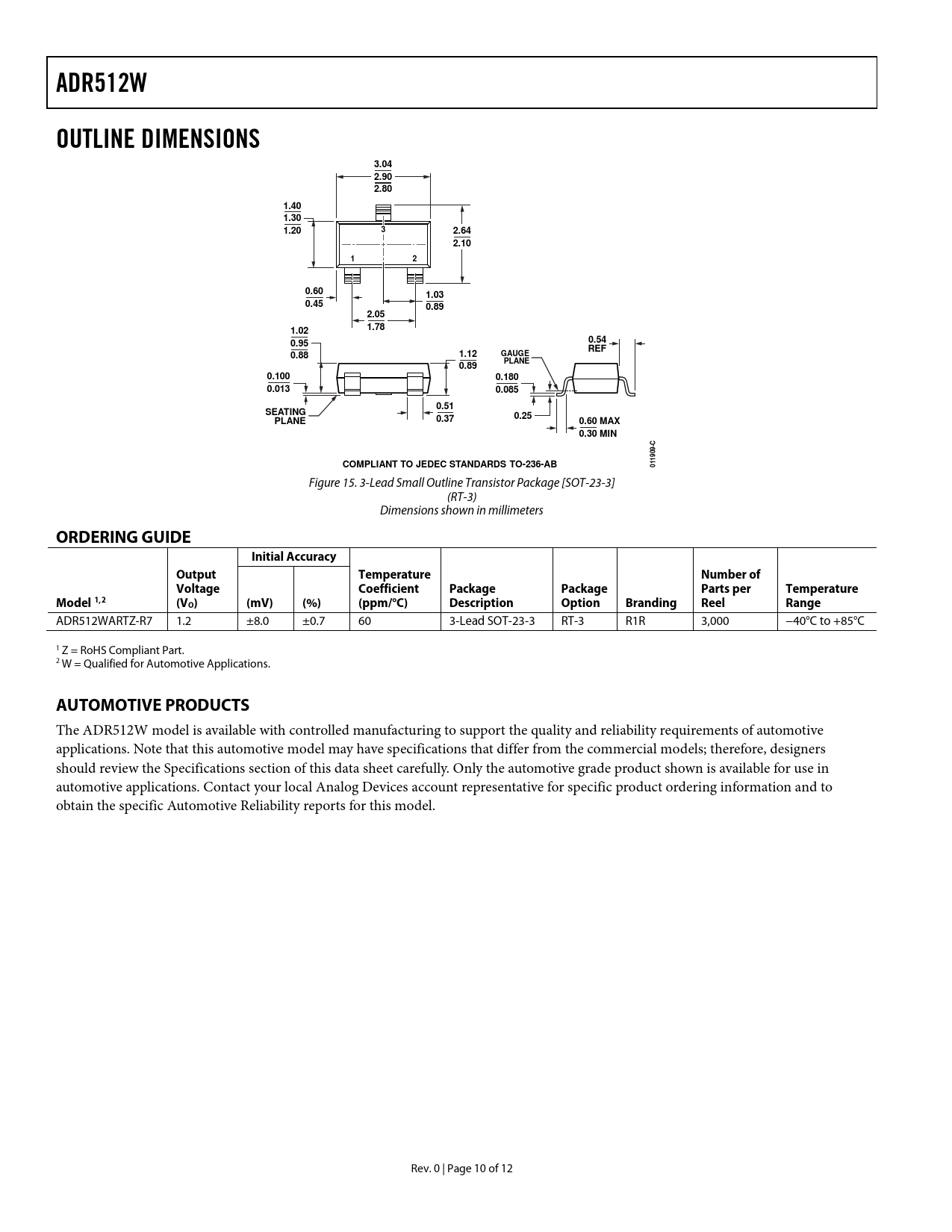

ADR512W. OUTLINE DIMENSIONS. 3.04 2.90 2.80. 1.40 1.30 1.20. 2.64 2.10. 0.60. 1.03. 0.45. 0.89. 2.05 1.78. 1.02. 0.54. 0.95. REF. 1.12. GAUGE. 0.88
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10 link to page 10
ADR512W OUTLINE DIMENSIONS 3.04 2.90 2.80 1.40 1.30 1.20 3 2.64 2.10 1 2 0.60 1.03 0.45 0.89 2.05 1.78 1.02 0.54 0.95 REF 1.12 GAUGE 0.88 PLANE 0.89 0.100 0.180 0.013 0.085 0.51 SEATING 0.25 PLANE 0.37 0.60 MAX 0.30 MIN C COMPLIANT TO JEDEC STANDARDS TO-236-AB 011909-
Figure 15. 3-Lead Small Outline Transistor Package [SOT-23-3] (RT-3) Dimensions shown in millimeters
ORDERING GUIDE Initial Accuracy Output Temperature Number of Voltage Coefficient Package Package Parts per Temperature Model 1,2 (VO) (mV) (%) (ppm/°C) Description Option Branding Reel Range
ADR512WARTZ-R7 1.2 ±8.0 ±0.7 60 3-Lead SOT-23-3 RT-3 R1R 3,000 −40°C to +85°C 1 Z = RoHS Compliant Part. 2 W = Qualified for Automotive Applications.
AUTOMOTIVE PRODUCTS
The ADR512W model is available with controlled manufacturing to support the quality and reliability requirements of automotive applications. Note that this automotive model may have specifications that differ from the commercial models; therefore, designers should review the Specifications section of this data sheet careful y. Only the automotive grade product shown is available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for this model. Rev. 0 | Page 10 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Terminology Applications Information Adjustable Precision Voltage Source Output Voltage Trim Using the ADR512W with Precision Data Converters Precise Negative Voltage Reference Outline Dimensions Ordering Guide Automotive Products
