TYPICAL APPLICATION. Low Noise 2.5V Buffered Reference. RELATED PARTS PART NUMBER. DESCRIPTION. COMMENTS
Model Line for this Datasheet
Text Version of Document
LT1009 Series

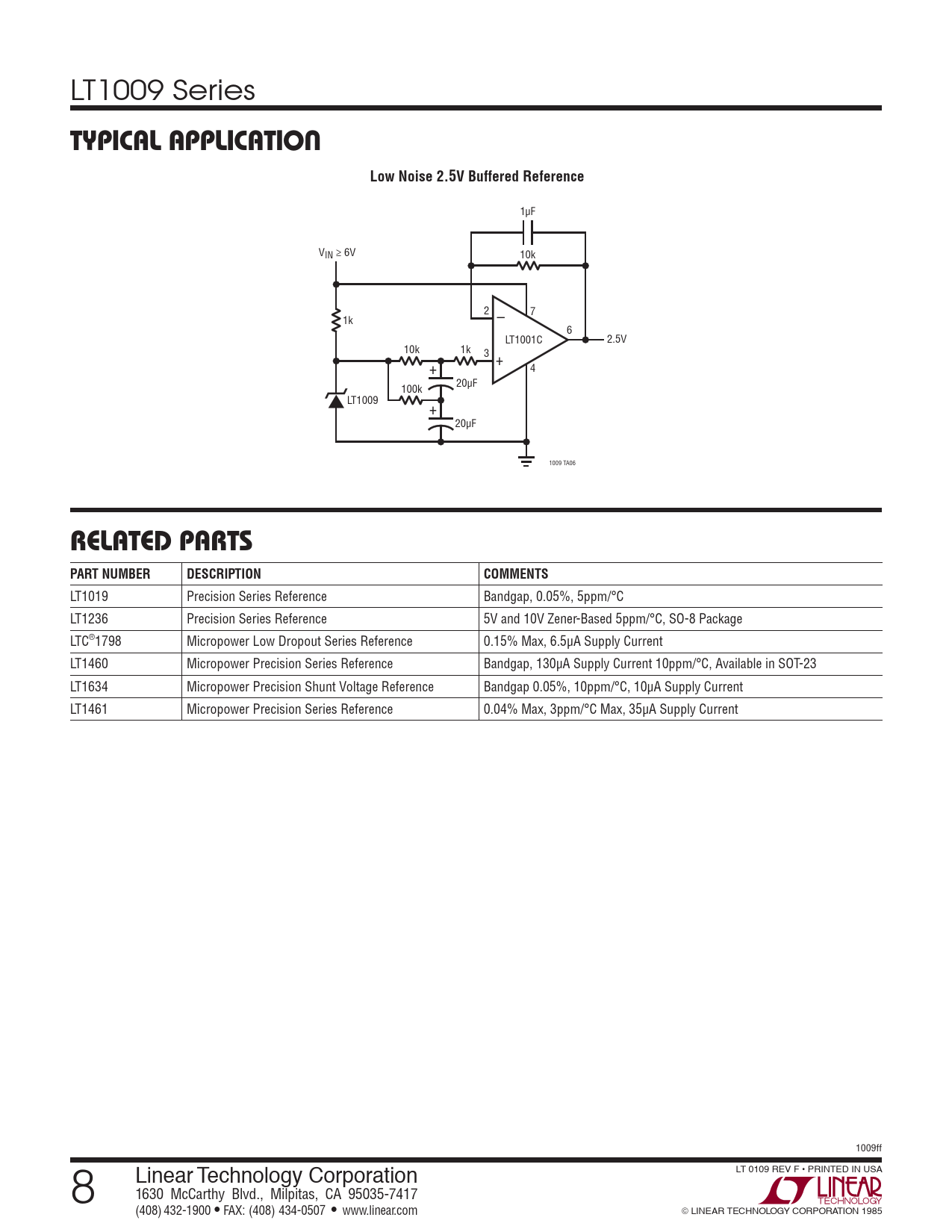

TYPICAL APPLICATION Low Noise 2.5V Buffered Reference
1μF VIN ≥ 6V 10k 2 7 1k – 6 LT1001C 2.5V 10k 1k 3 + 4 + 20μF 100k LT1009 + 20μF 1009 TA06
RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LT1019 Precision Series Reference Bandgap, 0.05%, 5ppm/°C LT1236 Precision Series Reference 5V and 10V Zener-Based 5ppm/°C, SO-8 Package LTC®1798 Micropower Low Dropout Series Reference 0.15% Max, 6.5μA Supply Current LT1460 Micropower Precision Series Reference Bandgap, 130μA Supply Current 10ppm/°C, Available in SOT-23 LT1634 Micropower Precision Shunt Voltage Reference Bandgap 0.05%, 10ppm/°C, 10μA Supply Current LT1461 Micropower Precision Series Reference 0.04% Max, 3ppm/°C Max, 35μA Supply Current 1009ff 8 Linear Technology Corporation LT 0109 REV F • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com © LINEAR TECHNOLOGY CORPORATION 1985
