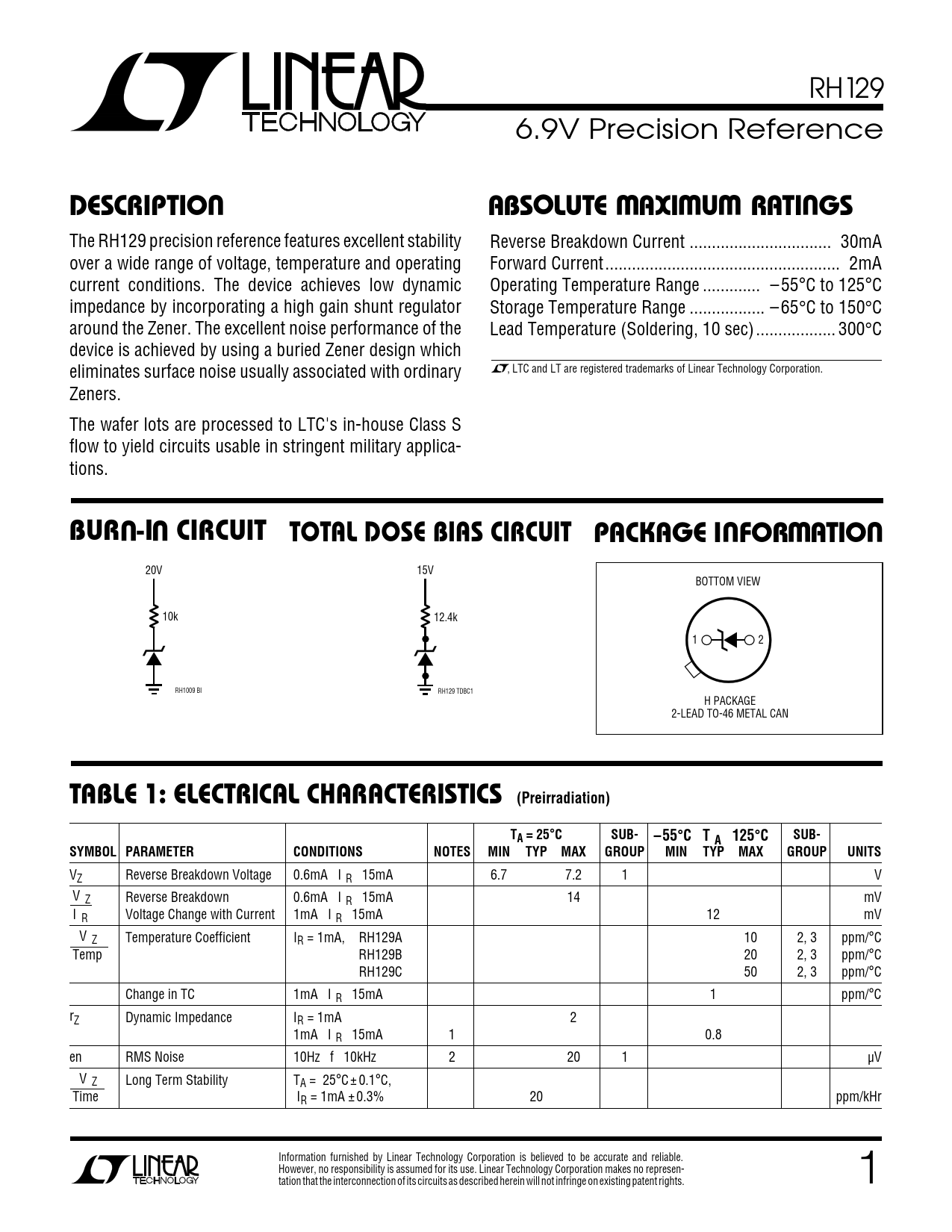

RH129 6.9V Precision Reference
U W W W U DESCRIPTIO ABSOLUTE AXI U A R TI GS
The RH129 precision reference features excellent stability Reverse Breakdown Current .. 30mA over a wide range of voltage, temperature and operating Forward Current... 2mA current conditions. The device achieves low dynamic Operating Temperature Range ... – 55°C to 125°C impedance by incorporating a high gain shunt regulator Storage Temperature Range ... – 65°C to 150°C around the Zener. The excellent noise performance of the Lead Temperature (Soldering, 10 sec) .. 300°C device is achieved by using a buried Zener design which eliminates surface noise usually associated with ordinary , LTC and LT are registered trademarks of Linear Technology Corporation. Zeners. The wafer lots are processed to LTC's in-house Class S flow to yield circuits usable in stringent military applica- tions.
U U U W U BUR -I CIRCUIT TOTAL DOSE BIAS CIRCUIT PACKAGE INFORMATION
20V 15V BOTTOM VIEW 10k 12.4k 1 2 RH1009 BI RH129 TDBC1 H PACKAGE 2-LEAD TO-46 METAL CAN
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) TA = 25°C SUB- – 55°C T SUB- A 125°C SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VZ Reverse Breakdown Voltage 0.6mA I R 15mA 6.7 7.2 1 V V Z Reverse Breakdown 0.6mA I R 15mA 14 mV I R Voltage Change with Current 1mA I R 15mA 12 mV V Z Temperature Coefficient IR = 1mA, RH129A 10 2, 3 ppm/°C Temp RH129B 20 2, 3 ppm/°C RH129C 50 2, 3 ppm/°C Change in TC 1mA I R 15mA 1 ppm/°C rZ Dynamic Impedance IR = 1mA 2 1mA I R 15mA 1 0.8 en RMS Noise 10Hz f 10kHz 2 20 1 µV V Z Long Term Stability TA = 25°C ± 0.1°C, Time IR = 1mA ± 0.3% 20 ppm/kHr Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no represen- tation that the interconnection of its circuits as described herein will not infringe on existing patent rights. 1
