Datasheet LT6011, LT6012 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp |
| Pages / Page | 20 / 1 — FeaTures. DescripTion. 60µV Maximum Offset Voltage. 300pA Maximum Input … |
| File Format / Size | PDF / 384 Kb |
| Document Language | English |
FeaTures. DescripTion. 60µV Maximum Offset Voltage. 300pA Maximum Input Bias Current. 135µA Supply Current per Amplifier
Model Line for this Datasheet
- LT6011ACDD#PBF LT6011ACDD#TRPBF LT6011ACS8#PBF LT6011ACS8#TRPBF LT6011AIDD#PBF LT6011AIDD#TRPBF LT6011AIS8#PBF LT6011AIS8#TRPBF LT6011CDD#PBF LT6011CDD#TRPBF LT6011CMS8#PBF LT6011CMS8#TRPBF LT6011CS8#PBF LT6011CS8#TRPBF LT6011IDD#PBF LT6011IDD#TRPBF LT6011IMS8#PBF LT6011IMS8#TRPBF LT6011IS8#PBF LT6011IS8#TRPBF
Text Version of Document

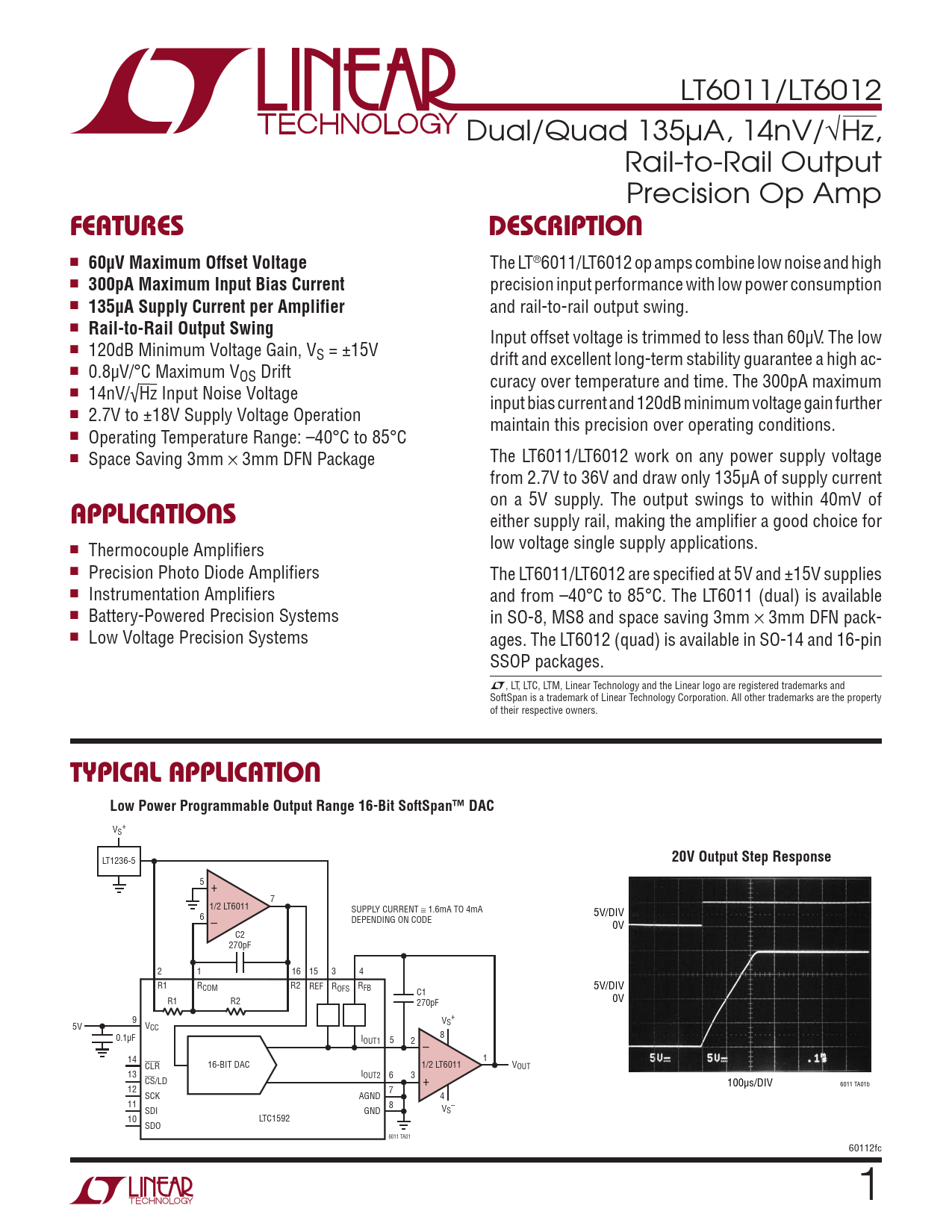

LT6011/LT6012 Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp
FeaTures DescripTion
n
60µV Maximum Offset Voltage
The LT®6011/LT6012 op amps combine low noise and high n
300pA Maximum Input Bias Current
precision input performance with low power consumption n
135µA Supply Current per Amplifier
and rail-to-rail output swing. n
Rail-to-Rail Output Swing
Input offset voltage is trimmed to less than 60µV. The low n 120dB Minimum Voltage Gain, VS = ±15V drift and excellent long-term stability guarantee a high ac- n 0.8µV/°C Maximum VOS Drift curacy over temperature and time. The 300pA maximum n 14nV/√Hz Input Noise Voltage input bias current and 120dB minimum voltage gain further n 2.7V to ±18V Supply Voltage Operation maintain this precision over operating conditions. n Operating Temperature Range: –40°C to 85°C n Space Saving 3mm × 3mm DFN Package The LT6011/LT6012 work on any power supply voltage from 2.7V to 36V and draw only 135µA of supply current on a 5V supply. The output swings to within 40mV of
applicaTions
either supply rail, making the amplifier a good choice for n low voltage single supply applications. Thermocouple Amplifiers n Precision Photo Diode Amplifiers The LT6011/LT6012 are specified at 5V and ±15V supplies n Instrumentation Amplifiers and from –40°C to 85°C. The LT6011 (dual) is available n Battery-Powered Precision Systems in SO-8, MS8 and space saving 3mm × 3mm DFN pack- n Low Voltage Precision Systems ages. The LT6012 (quad) is available in SO-14 and 16-pin SSOP packages. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
Typical applicaTion Low Power Programmable Output Range 16-Bit SoftSpan™ DAC
V + S LT1236-5
20V Output Step Response
5 + 7 1/2 LT6011 SUPPLY CURRENT ≅ 1.6mA TO 4mA 6 5V/DIV – DEPENDING ON CODE 0V C2 270pF 2 1 16 15 3 4 R1 RCOM R2 REF ROFS RFB 5V/DIV C1 R1 R2 270pF 0V 9 V + S 5V VCC 0.1µF I 8 OUT1 5 2 – 14 1 CLR 16-BIT DAC 1/2 LT6011 V 13 IOUT2 6 3 + OUT CS/LD 100µs/DIV 12 6011 TA01b 7 SCK AGND 4 11 8 V – SDI GND S 10 LTC1592 SDO 6011 TA01 60112fc 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/Order Information Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
