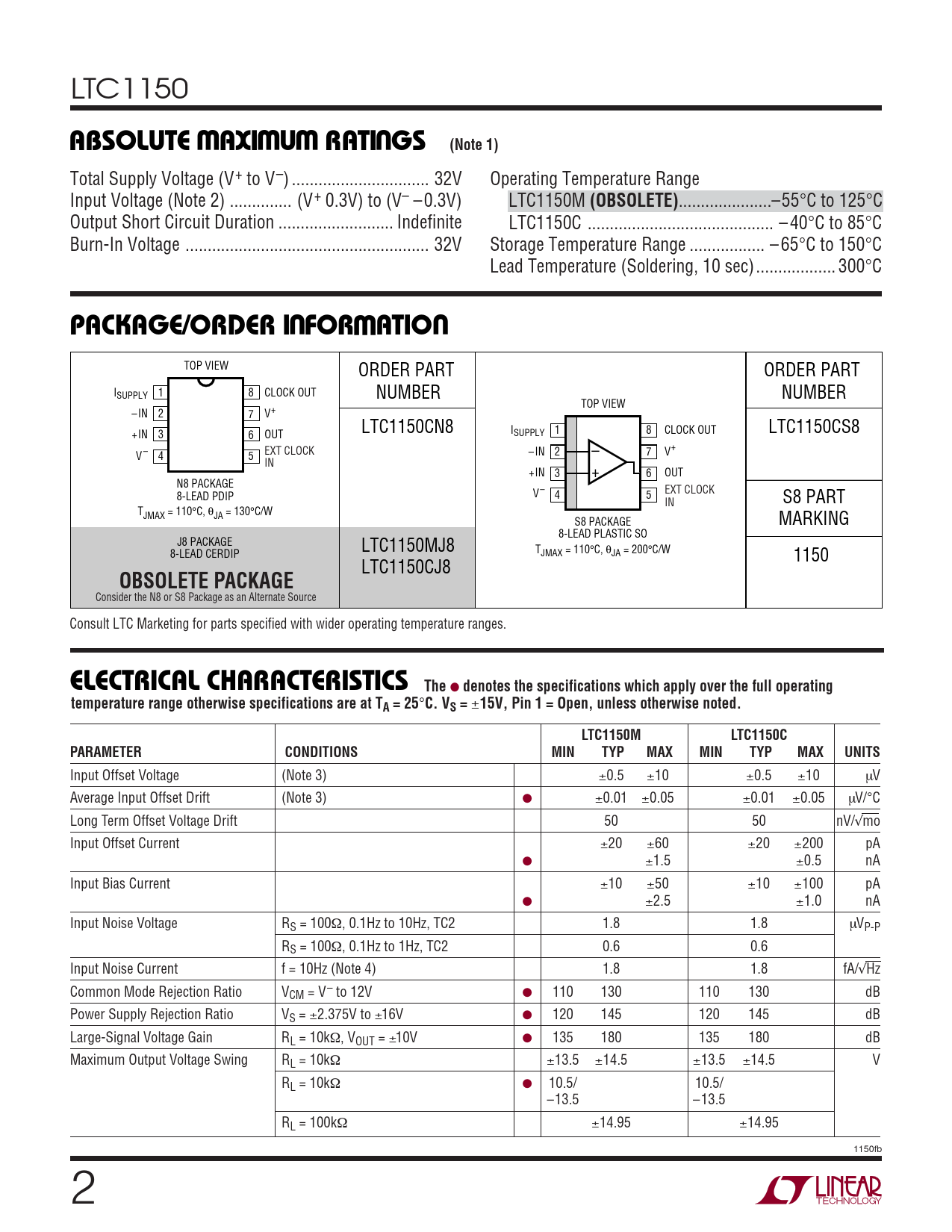

LTC1150
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Total Supply Voltage (V+ to V–) ... 32V Operating Temperature Range Input Voltage (Note 2) .. (V+ 0.3V) to (V– – 0.3V) LTC1150M
(OBSOLETE)
...–55°C to 125°C Output Short Circuit Duration .. Indefinite LTC1150C .. – 40°C to 85°C Burn-In Voltage ... 32V Storage Temperature Range ... – 65°C to 150°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART ORDER PART I 1 SUPPLY 8 CLOCK OUT NUMBER NUMBER TOP VIEW – IN 2 7 V+ LTC1150CN8 LTC1150CS8 +IN 3 6 OUT I 1 8 CLOCK OUT SUPPLY V – EXT CLOCK 4 – 5 – IN 2 7 V+ IN +IN 3 + 6 OUT N8 PACKAGE EXT CLOCK 8-LEAD PDIP V – 4 5 IN S8 PART TJMAX = 110°C, θJA = 130°C/W S8 PACKAGE MARKING 8-LEAD PLASTIC SO J8 PACKAGE LTC1150MJ8 8-LEAD CERDIP TJMAX = 110°C, θJA = 200°C/W 1150 LTC1150CJ8
OBSOLETE PACKAGE
Consider the N8 or S8 Package as an Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range otherwise specifications are at TA = 25
°
C. VS =
±
15V, Pin 1 = Open, unless otherwise noted. LTC1150M LTC1150C PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Input Offset Voltage (Note 3) ±0.5 ±10 ±0.5 ±10 µV Average Input Offset Drift (Note 3) ● ±0.01 ±0.05 ±0.01 ±0.05 µV/°C Long Term Offset Voltage Drift 50 50 nV/√mo Input Offset Current ±20 ±60 ±20 ±200 pA ● ±1.5 ±0.5 nA Input Bias Current ±10 ±50 ±10 ±100 pA ● ±2.5 ±1.0 nA Input Noise Voltage RS = 100Ω, 0.1Hz to 10Hz, TC2 1.8 1.8 µVP-P RS = 100Ω, 0.1Hz to 1Hz, TC2 0.6 0.6 Input Noise Current f = 10Hz (Note 4) 1.8 1.8 fA/√Hz Common Mode Rejection Ratio VCM = V– to 12V ● 110 130 110 130 dB Power Supply Rejection Ratio VS = ±2.375V to ±16V ● 120 145 120 145 dB Large-Signal Voltage Gain RL = 10kΩ, VOUT = ±10V ● 135 180 135 180 dB Maximum Output Voltage Swing RL = 10kΩ ±13.5 ±14.5 ±13.5 ±14.5 V RL = 10kΩ ● 10.5/ 10.5/ –13.5 –13.5 RL = 100kΩ ±14.95 ±14.95 1150fb 2
