LTC3630

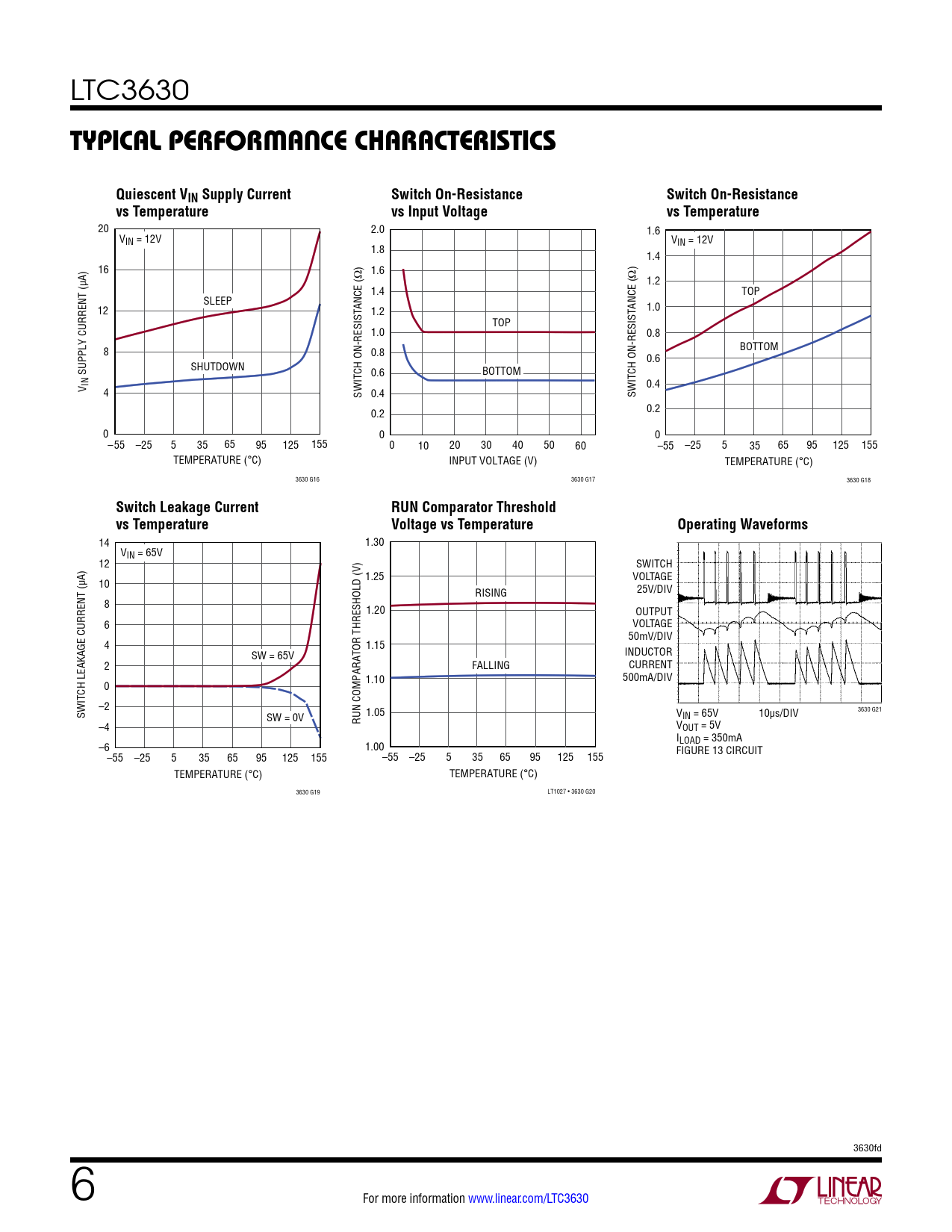

Typical perForMance characTerisTics Quiescent VIN Supply Current Switch On-Resistance Switch On-Resistance vs Temperature vs Input Voltage vs Temperature
20 2.0 1.6 VIN = 12V VIN = 12V 1.8 1.4 16 1.6 1.2 1.4 TOP SLEEP 12 1.2 1.0 TOP 1.0 0.8 8 0.8 BOTTOM 0.6 SHUTDOWN SUPPLY CURRENT (µA) 0.6 BOTTOM V IN 0.4 4 SWITCH ON-RESISTANCE (Ω) 0.4 SWITCH ON-RESISTANCE (Ω) 0.2 0.2 0 0 0 –55 –25 5 35 65 95 125 155 0 10 20 30 40 50 60 –55 –25 5 35 65 95 125 155 TEMPERATURE (°C) INPUT VOLTAGE (V) TEMPERATURE (°C) 3630 G16 3630 G17 3630 G18
