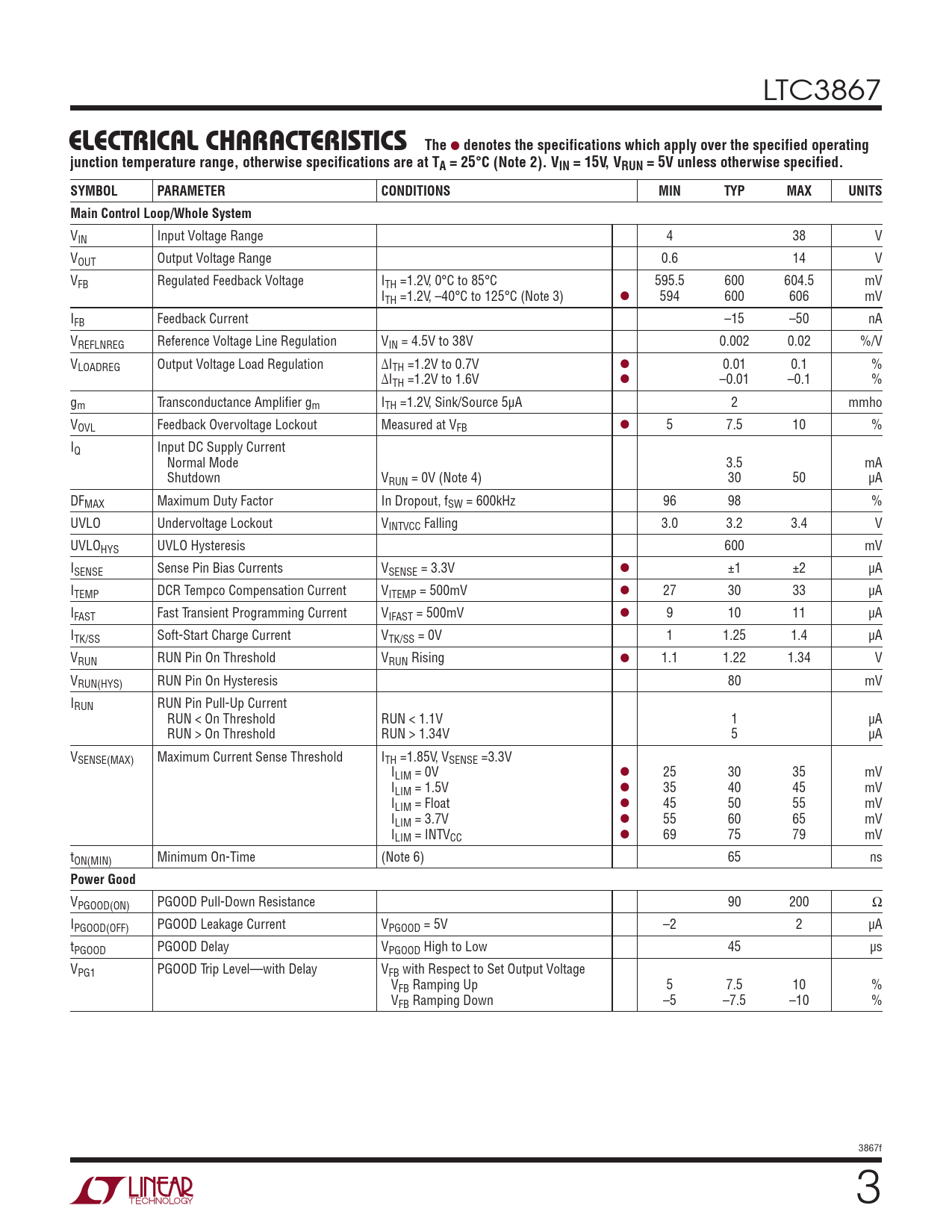

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating
Model Line for this Datasheet
Text Version of Document
LTC3867
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C (Note 2). VIN = 15V, VRUN = 5V unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Main Control Loop/Whole System
VIN Input Voltage Range 4 38 V VOUT Output Voltage Range 0.6 14 V VFB Regulated Feedback Voltage ITH =1.2V, 0°C to 85°C 595.5 600 604.5 mV ITH =1.2V, –40°C to 125°C (Note 3) l 594 600 606 mV IFB Feedback Current –15 –50 nA VREFLNREG Reference Voltage Line Regulation VIN = 4.5V to 38V 0.002 0.02 %/V VLOADREG Output Voltage Load Regulation ΔITH =1.2V to 0.7V l 0.01 0.1 % ΔITH =1.2V to 1.6V l –0.01 –0.1 % gm Transconductance Amplifier gm ITH =1.2V, Sink/Source 5µA 2 mmho VOVL Feedback Overvoltage Lockout Measured at VFB l 5 7.5 10 % IQ Input DC Supply Current Normal Mode 3.5 mA Shutdown VRUN = 0V (Note 4) 30 50 µA DFMAX Maximum Duty Factor In Dropout, fSW = 600kHz 96 98 % UVLO Undervoltage Lockout VINTVCC Falling 3.0 3.2 3.4 V UVLOHYS UVLO Hysteresis 600 mV ISENSE Sense Pin Bias Currents VSENSE = 3.3V l ±1 ±2 µA ITEMP DCR Tempco Compensation Current VITEMP = 500mV l 27 30 33 µA IFAST Fast Transient Programming Current VIFAST = 500mV l 9 10 11 µA ITK/SS Soft-Start Charge Current VTK/SS = 0V 1 1.25 1.4 µA VRUN RUN Pin On Threshold VRUN Rising l 1.1 1.22 1.34 V VRUN(HYS) RUN Pin On Hysteresis 80 mV IRUN RUN Pin Pull-Up Current RUN < On Threshold RUN < 1.1V 1 µA RUN > On Threshold RUN > 1.34V 5 µA VSENSE(MAX) Maximum Current Sense Threshold ITH =1.85V, VSENSE =3.3V ILIM = 0V l 25 30 35 mV ILIM = 1.5V l 35 40 45 mV ILIM = Float l 45 50 55 mV ILIM = 3.7V l 55 60 65 mV ILIM = INTVCC l 69 75 79 mV tON(MIN) Minimum On-Time (Note 6) 65 ns
Power Good
VPGOOD(ON) PGOOD Pull-Down Resistance 90 200 Ω IPGOOD(OFF) PGOOD Leakage Current VPGOOD = 5V –2 2 µA tPGOOD PGOOD Delay VPGOOD High to Low 45 µs VPG1 PGOOD Trip Level—with Delay VFB with Respect to Set Output Voltage VFB Ramping Up 5 7.5 10 % VFB Ramping Down –5 –7.5 –10 % 3867f 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Package Description Typical Application Related Parts
