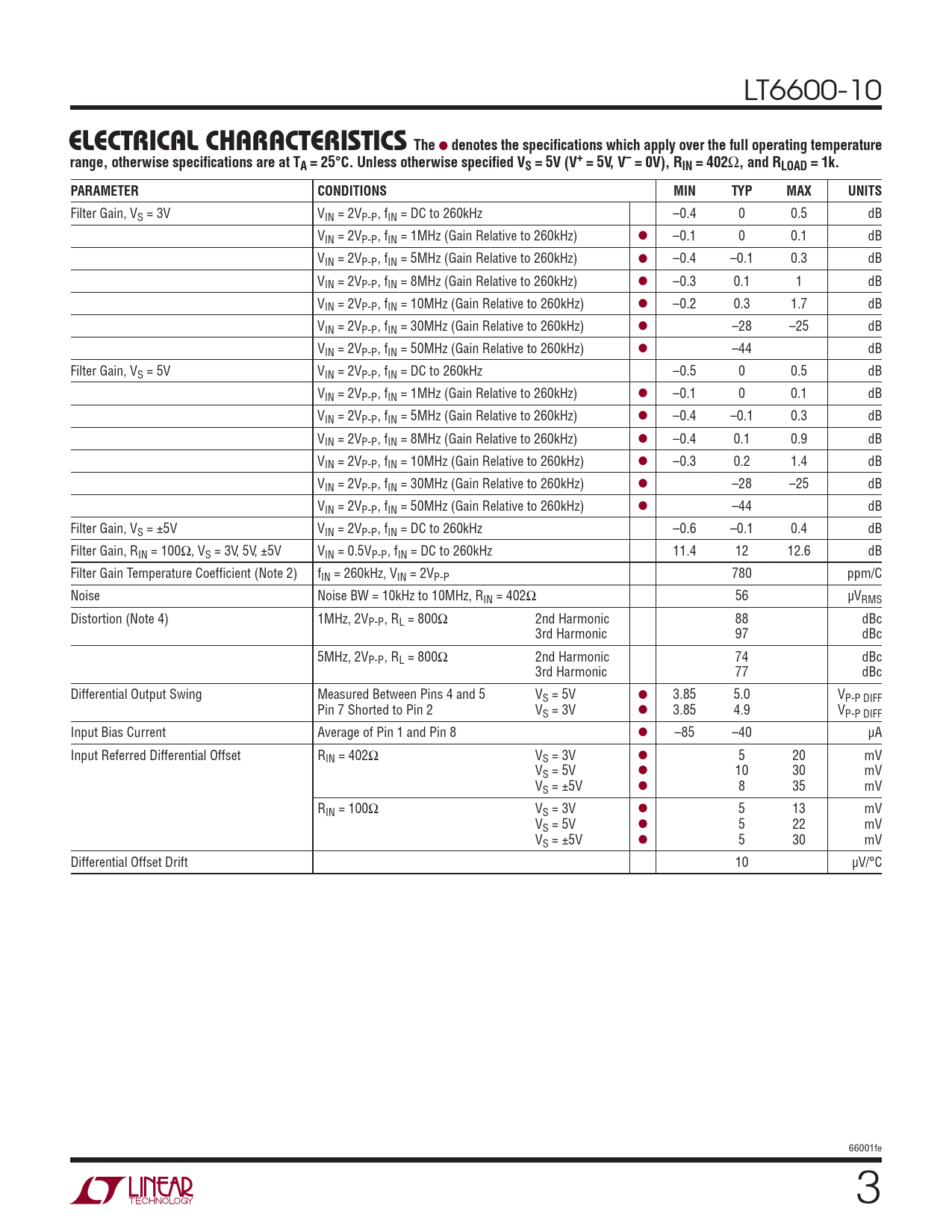

LT6600-10
The ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Unless otherwise specifi ed VS = 5V (V+ = 5V, V– = 0V), RIN = 402
Ω
, and RLOAD = 1k. PARAMETER CONDITIONS MIN TYP MAX UNITS
Filter Gain, VS = 3V VIN = 2VP-P , fIN = DC to 260kHz –0.4 0 0.5 dB VIN = 2VP-P , fIN = 1MHz (Gain Relative to 260kHz) l –0.1 0 0.1 dB VIN = 2VP-P , fIN = 5MHz (Gain Relative to 260kHz) l –0.4 –0.1 0.3 dB VIN = 2VP-P , fIN = 8MHz (Gain Relative to 260kHz) l –0.3 0.1 1 dB VIN = 2VP-P , fIN = 10MHz (Gain Relative to 260kHz) l –0.2 0.3 1.7 dB VIN = 2VP-P , fIN = 30MHz (Gain Relative to 260kHz) l –28 –25 dB VIN = 2VP-P , fIN = 50MHz (Gain Relative to 260kHz) l –44 dB Filter Gain, VS = 5V VIN = 2VP-P , fIN = DC to 260kHz –0.5 0 0.5 dB VIN = 2VP-P , fIN = 1MHz (Gain Relative to 260kHz) l –0.1 0 0.1 dB VIN = 2VP-P , fIN = 5MHz (Gain Relative to 260kHz) l –0.4 –0.1 0.3 dB VIN = 2VP-P , fIN = 8MHz (Gain Relative to 260kHz) l –0.4 0.1 0.9 dB VIN = 2VP-P , fIN = 10MHz (Gain Relative to 260kHz) l –0.3 0.2 1.4 dB VIN = 2VP-P , fIN = 30MHz (Gain Relative to 260kHz) l –28 –25 dB VIN = 2VP-P , fIN = 50MHz (Gain Relative to 260kHz) l –44 dB Filter Gain, VS = ±5V VIN = 2VP-P , fIN = DC to 260kHz –0.6 –0.1 0.4 dB Filter Gain, RIN = 100Ω, VS = 3V, 5V, ±5V VIN = 0.5VP-P , fIN = DC to 260kHz 11.4 12 12.6 dB Filter Gain Temperature Coeffi cient (Note 2) fIN = 260kHz, VIN = 2VP-P 780 ppm/C Noise Noise BW = 10kHz to 10MHz, RIN = 402Ω 56 μVRMS Distortion (Note 4) 1MHz, 2VP-P , RL = 800Ω 2nd Harmonic 88 dBc 3rd Harmonic 97 dBc 5MHz, 2VP-P , RL = 800Ω 2nd Harmonic 74 dBc 3rd Harmonic 77 dBc Differential Output Swing Measured Between Pins 4 and 5 VS = 5V l 3.85 5.0 VP-P DIFF Pin 7 Shorted to Pin 2 VS = 3V l 3.85 4.9 VP-P DIFF Input Bias Current Average of Pin 1 and Pin 8 l –85 –40 μA Input Referred Differential Offset RIN = 402Ω VS = 3V l 5 20 mV VS = 5V l 10 30 mV VS = ±5V l 8 35 mV RIN = 100Ω VS = 3V l 5 13 mV VS = 5V l 5 22 mV VS = ±5V l 5 30 mV Differential Offset Drift 10 μV/°C 66001fe 3
