LT6350

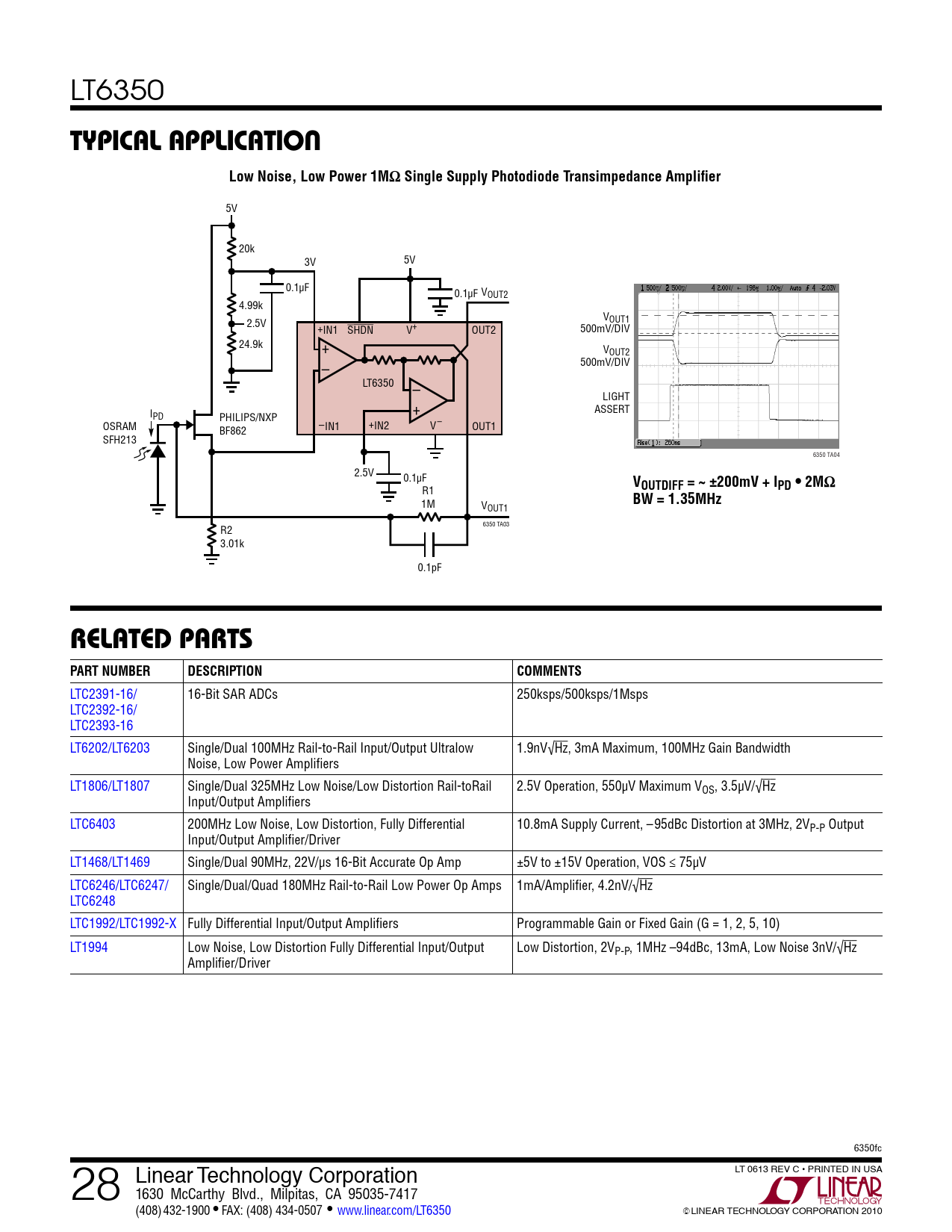

Typical applicaTion Low Noise, Low Power 1MΩ Single Supply Photodiode Transimpedance Amplifier
5V 20k 3V 5V 0.1µF 0.1µF VOUT2 4.99k V 2.5V OUT1 +IN1 SHDN V+ OUT2 500mV/DIV 24.9k + VOUT2 – 500mV/DIV LT6350 – + LIGHT I ASSERT PD PHILIPS/NXP OSRAM –IN1 +IN2 V– OUT1 BF862 SFH213 6350 TA04 2.5V 0.1µF
V
R1
OUTDIFF = ~ ±200mV + IPD • 2MΩ
1M
BW = 1.35MHz
VOUT1 R2 6350 TA03 3.01k 0.1pF
relaTeD parTs PART NUMBER DESCRIPTION COMMENTS
LTC2391-16/ 16-Bit SAR ADCs 250ksps/500ksps/1Msps LTC2392-16/ LTC2393-16 LT6202/LT6203 Single/Dual 100MHz Rail-to-Rail Input/Output Ultralow 1.9nV√Hz, 3mA Maximum, 100MHz Gain Bandwidth Noise, Low Power Amplifiers LT1806/LT1807 Single/Dual 325MHz Low Noise/Low Distortion Rail-toRail 2.5V Operation, 550µV Maximum VOS, 3.5µV/√Hz Input/Output Amplifiers LTC6403 200MHz Low Noise, Low Distortion, Fully Differential 10.8mA Supply Current, –95dBc Distortion at 3MHz, 2VP-P Output Input/Output Amplifier/Driver LT1468/LT1469 Single/Dual 90MHz, 22V/µs 16-Bit Accurate Op Amp ±5V to ±15V Operation, VOS ≤ 75µV LTC6246/LTC6247/ Single/Dual/Quad 180MHz Rail-to-Rail Low Power Op Amps 1mA/Amplifier, 4.2nV/√Hz LTC6248 LTC1992/LTC1992-X Fully Differential Input/Output Amplifiers Programmable Gain or Fixed Gain (G = 1, 2, 5, 10) LT1994 Low Noise, Low Distortion Fully Differential Input/Output Low Distortion, 2VP-P, 1MHz –94dBc, 13mA, Low Noise 3nV/√Hz Amplifier/Driver 6350fc 28 LT 0613 REV C • PRINTED IN USA Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95 F0o3r 5m-o 7 r4e in 17 formation www.linear.com/LT6350 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com/LT6350 LINEAR TECHNOLOGY CORPORATION 2010 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram DC Test Circuit Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
