Datasheet AD8232 (Analog Devices) - 27

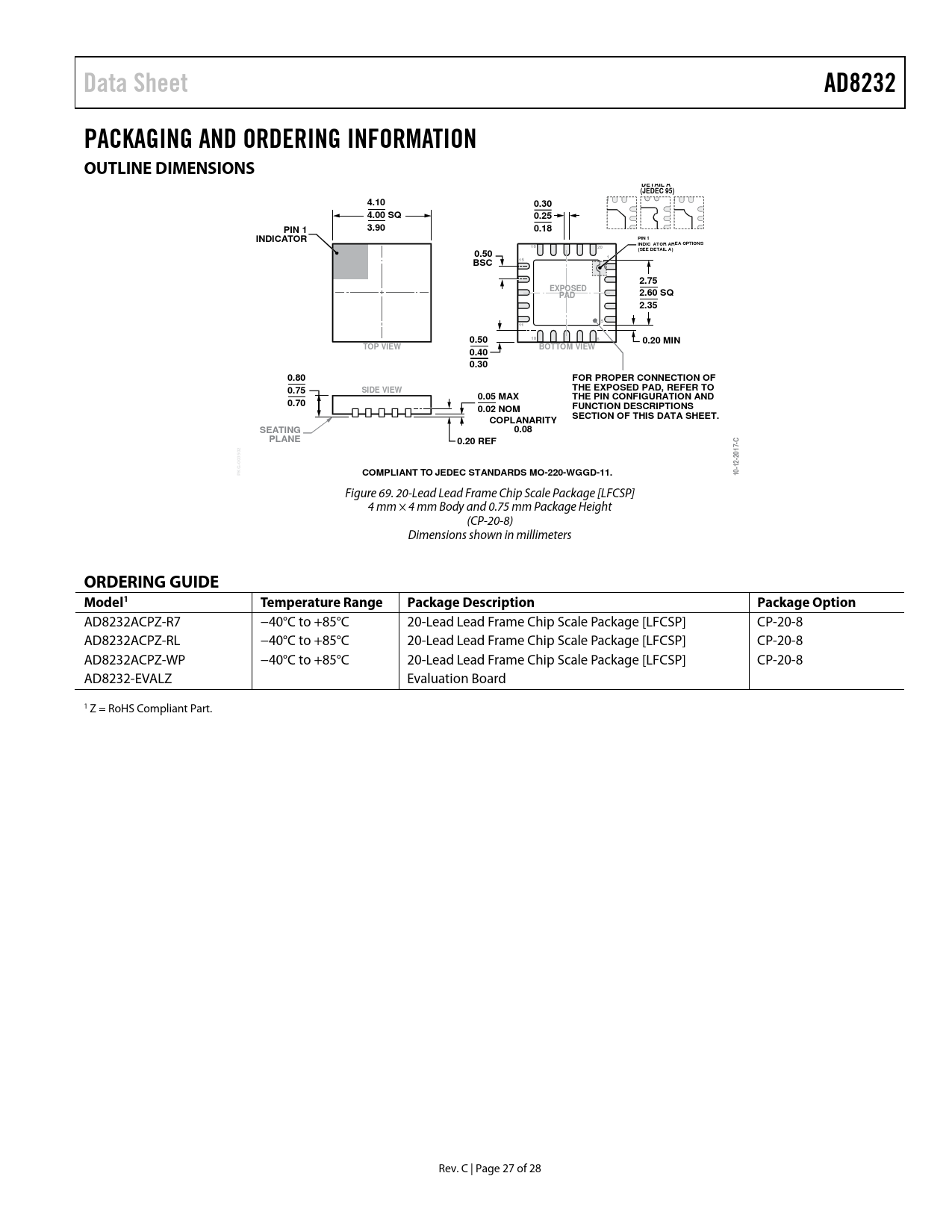

Data Sheet AD8232 PACKAGING AND ORDERING INFORMATION OUTLINE DIMENSIONS DETAIL A (JEDEC 95) 4.10 0.30 4.00 SQ 0.25 3.90 PIN 1 0.18 INDICATOR PIN 1 INDIC ATOR AREA OPTIONS 16 20 (SEE DETAIL A) 0.50 1 BSC 15 2.75 EXPOSED 2.60 SQ PAD 2.35 5 11 0.50 10 6 0.20 MIN TOP VIEW BOTTOM VIEW 0.40 0.30 0.80 FOR PROPER CONNECTION OF 0.75 SIDE VIEW THE EXPOSED PAD, REFER TO 0.05 MAX THE PIN CONFIGURATION AND 0.70 0.02 NOM FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. COPLANARITY SEATING 0.08 PLANE 0.20 REF C 2017- -003502 12- G K P COMPLIANT TO JEDEC STANDARDS MO-220-WGGD-11. 10-
Figure 69. 20-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-20-8) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
AD8232ACPZ-R7 −40°C to +85°C 20-Lead Lead Frame Chip Scale Package [LFCSP] CP-20-8 AD8232ACPZ-RL −40°C to +85°C 20-Lead Lead Frame Chip Scale Package [LFCSP] CP-20-8 AD8232ACPZ-WP −40°C to +85°C 20-Lead Lead Frame Chip Scale Package [LFCSP] CP-20-8 AD8232-EVALZ Evaluation Board 1 Z = RoHS Compliant Part. Rev. C | Page 27 of 28 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Instrumentation Amplifier Performance Curves Operational Amplifier Performance Curves Right Leg Drive (RLD) Amplifier Performance Curves Reference Buffer Performance Curves System Performance Curves Theory of Operation Architecture Overview Instrumentation Amplifier Operational Amplifier Right Leg Drive Amplifier Reference Buffer Fast Restore Circuit Leads Off Detection DC Leads Off Detection AC Leads Off Detection Standby Operation Input Protection Radio Frequency Interference (RFI) Power Supply Regulation and Bypassing Input Referred Offsets Layout Recommendations Applications Information Eliminating Electrode Offsets High-Pass Filtering Two-Pole High-Pass Filter Additional High-Pass Filtering Options Low-Pass Filtering and Gain Driving Analog-to-Digital Converters Driven Electrode Application Circuits Heart Rate Measurement Next to the Heart Exercise Application: Heart Rate Measured at the Hands Cardiac Monitor Configuration Portable Cardiac Monitor with Elimination of Motion Artifacts Packaging and Ordering Information Outline Dimensions Ordering Guide
