| Description | High Temperature 1.0A, 35MHz Current Feedback Amplifier |
| Pages / Page | 18 / 2 — (Note 1). http://www.linear.com/product/LT1210X#orderinfo. TUBE. TAPE AND … |
| File Format / Size | PDF / 635 Kb |
| Document Language | English |
(Note 1). http://www.linear.com/product/LT1210X#orderinfo. TUBE. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION
Model Line for this Datasheet
Text Version of Document

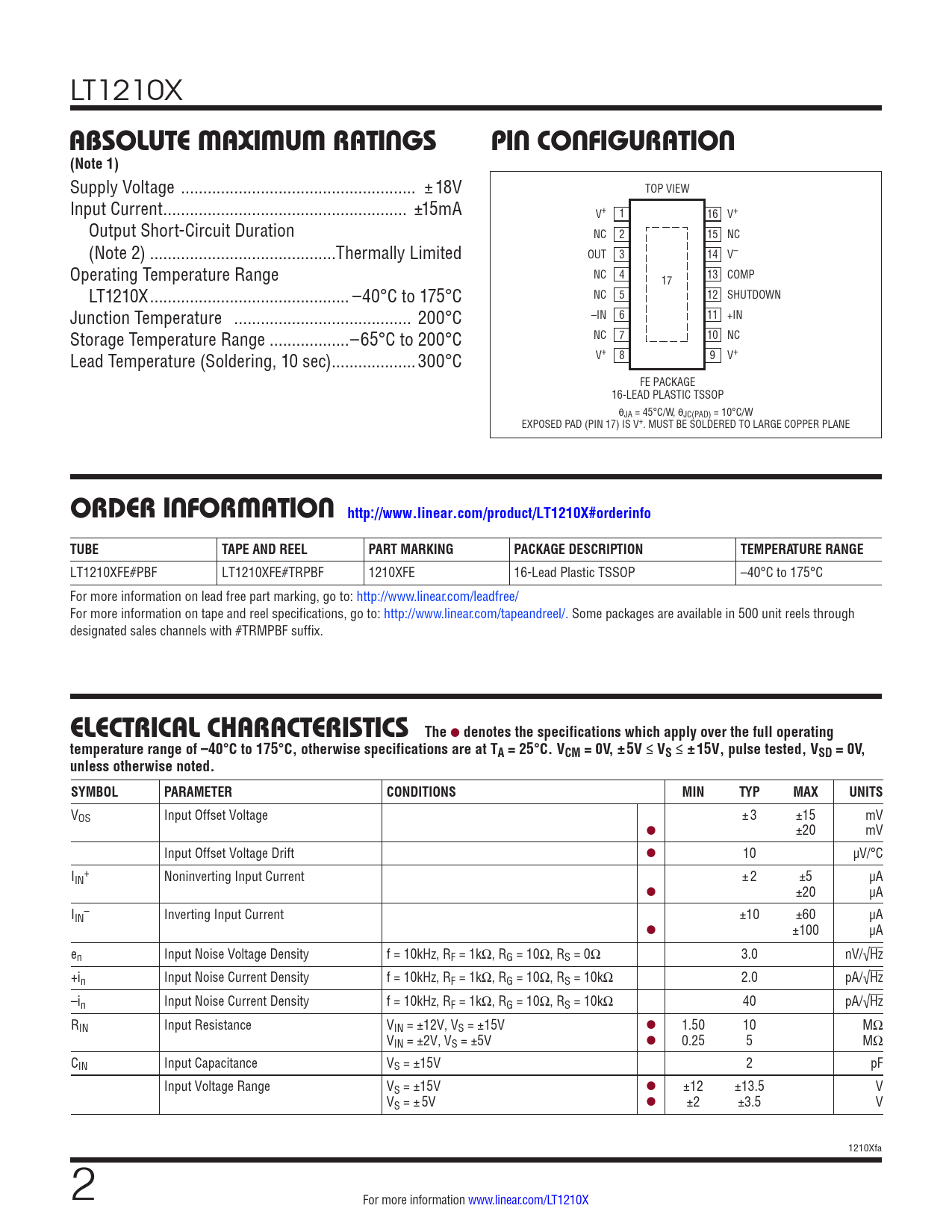

LT1210X ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION
(Note 1)
Supply Voltage ... ±18V TOP VIEW Input Current ... ±15mA V+ 1 16 V+ Output Short-Circuit Duration NC 2 15 NC (Note 2) ..Thermally Limited OUT 3 14 V– Operating Temperature Range NC 4 13 COMP 17 LT1210X ... –40°C to 175°C NC 5 12 SHUTDOWN Junction Temperature .. 200°C –IN 6 11 +IN Storage Temperature Range ..–65°C to 200°C NC 7 10 NC Lead Temperature (Soldering, 10 sec) ...300°C V+ 8 9 V+ FE PACKAGE 16-LEAD PLASTIC TSSOP θJA = 45°C/W, θJC(PAD) = 10°C/W EXPOSED PAD (PIN 17) IS V+. MUST BE SOLDERED TO LARGE COPPER PLANE ORDER INFORMATION
http://www.linear.com/product/LT1210X#orderinfo TUBE TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1210XFE#PBF LT1210XFE#TRPBF 1210XFE 16-Lead Plastic TSSOP –40°C to 175°C For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. ELECTRICAL CHARACTERISTICS
The
l
denotes the specifications which apply over the full operating temperature range of –40°C to 175°C, otherwise specifications are at TA = 25°C. VCM = 0V, ±5V ≤ VS ≤ ±15V, pulse tested, VSD = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ±3 ±15 mV l ±20 mV Input Offset Voltage Drift l 10 µV/°C I + IN Noninverting Input Current ±2 ±5 µA l ±20 µA I – IN Inverting Input Current ±10 ±60 µA l ±100 µA en Input Noise Voltage Density f = 10kHz, RF = 1kΩ, RG = 10Ω, RS = 0Ω 3.0 nV/√Hz +in Input Noise Current Density f = 10kHz, RF = 1kΩ, RG = 10Ω, RS = 10kΩ 2.0 pA/√Hz –in Input Noise Current Density f = 10kHz, RF = 1kΩ, RG = 10Ω, RS = 10kΩ 40 pA/√Hz RIN Input Resistance VIN = ±12V, VS = ±15V l 1.50 10 MΩ VIN = ±2V, VS = ±5V l 0.25 5 MΩ CIN Input Capacitance VS = ±15V 2 pF Input Voltage Range VS = ±15V l ±12 ±13.5 V VS = ±5V l ±2 ±3.5 V 1210Xfa 2 For more information www.linear.com/LT1210X
