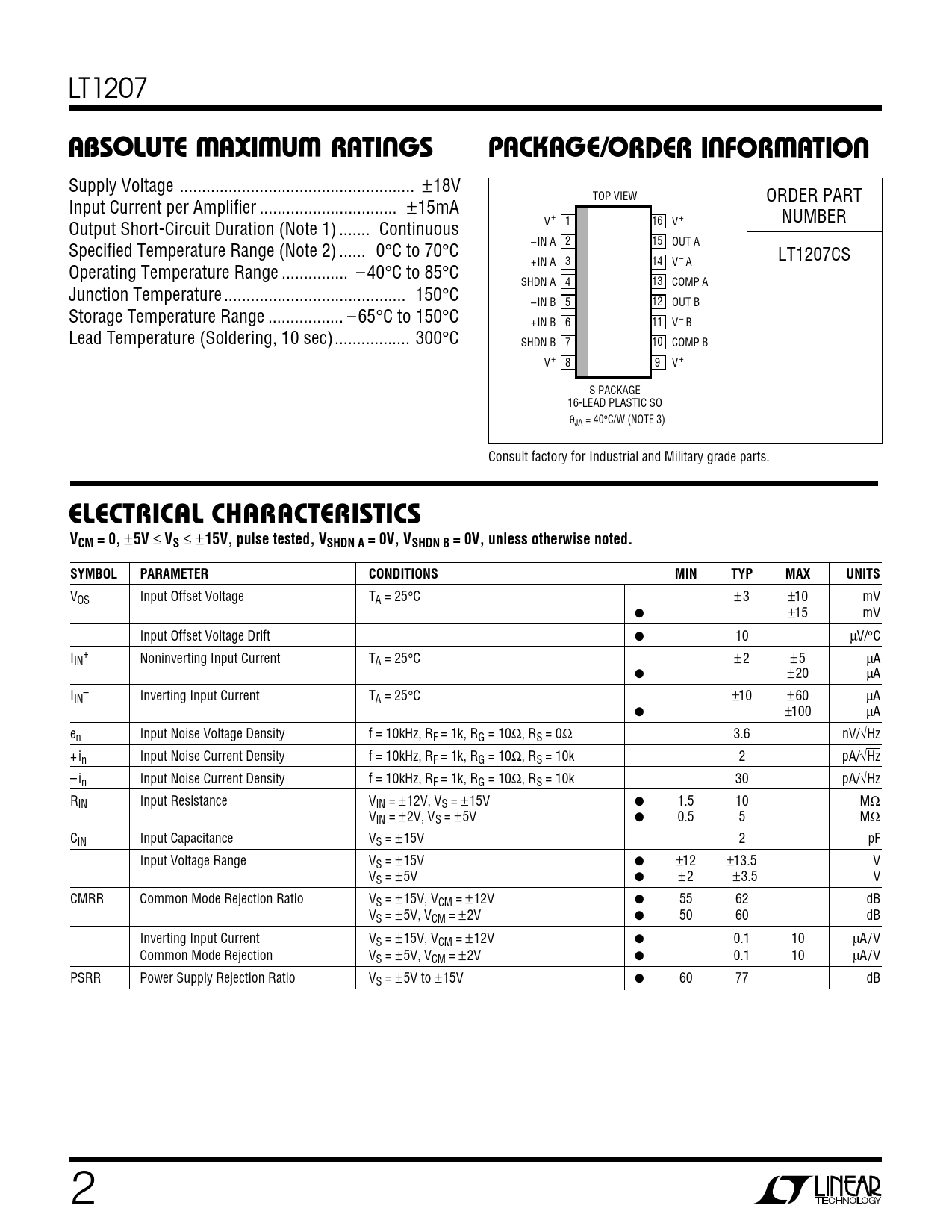

LT1207
W W W U U W U ABSOLUTE AXI U A R TI GS PACKAGE/ORDER I FOR ATIO
Supply Voltage ... ±18V TOP VIEW ORDER PART Input Current per Amplifier ... ±15mA V+ 1 16 V+ NUMBER Output Short-Circuit Duration (Note 1) ... Continuous –IN A 2 15 OUT A Specified Temperature Range (Note 2) .. 0°C to 70°C LT1207CS +IN A 3 14 V– Operating Temperature Range ... – 40°C to 85°C A SHDN A 4 13 COMP A Junction Temperature ... 150°C –IN B 5 12 OUT B Storage Temperature Range ... – 65°C to 150°C +IN B 6 11 V– B Lead Temperature (Soldering, 10 sec)... 300°C SHDN B 7 10 COMP B V+ 8 9 V+ S PACKAGE 16-LEAD PLASTIC SO θJA = 40°C/W (NOTE 3) Consult factory for Industrial and Military grade parts.
ELECTRICAL CHARACTERISTICS VCM = 0,
±
5V
≤
VS
≤
±
15V, pulse tested, VSHDN A = 0V, VSHDN B = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage TA = 25°C ±3 ±10 mV ● ±15 mV Input Offset Voltage Drift ● 10 µV/°C I + IN Noninverting Input Current TA = 25°C ±2 ±5 µA ● ±20 µA I – IN Inverting Input Current TA = 25°C ±10 ±60 µA ● ±100 µA en Input Noise Voltage Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 0Ω 3.6 nV/√Hz + in Input Noise Current Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 10k 2 pA/√Hz – in Input Noise Current Density f = 10kHz, RF = 1k, RG = 10Ω, RS = 10k 30 pA/√Hz RIN Input Resistance VIN = ±12V, VS = ±15V ● 1.5 10 MΩ VIN = ±2V, VS = ±5V ● 0.5 5 MΩ CIN Input Capacitance VS = ±15V 2 pF Input Voltage Range VS = ±15V ● ±12 ±13.5 V VS = ±5V ● ±2 ±3.5 V CMRR Common Mode Rejection Ratio VS = ±15V, VCM = ±12V ● 55 62 dB VS = ±5V, VCM = ±2V ● 50 60 dB Inverting Input Current VS = ±15V, VCM = ±12V ● 0.1 10 µA/V Common Mode Rejection VS = ±5V, VCM = ±2V ● 0.1 10 µA/V PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 60 77 dB 2
