Datasheet LT1204 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier |
| Pages / Page | 20 / 4 — AC CHARACTERISTICS TA = 25. C, VS =. 15V, RF = RG = 1k, unless otherwise … |
| File Format / Size | PDF / 272 Kb |
| Document Language | English |

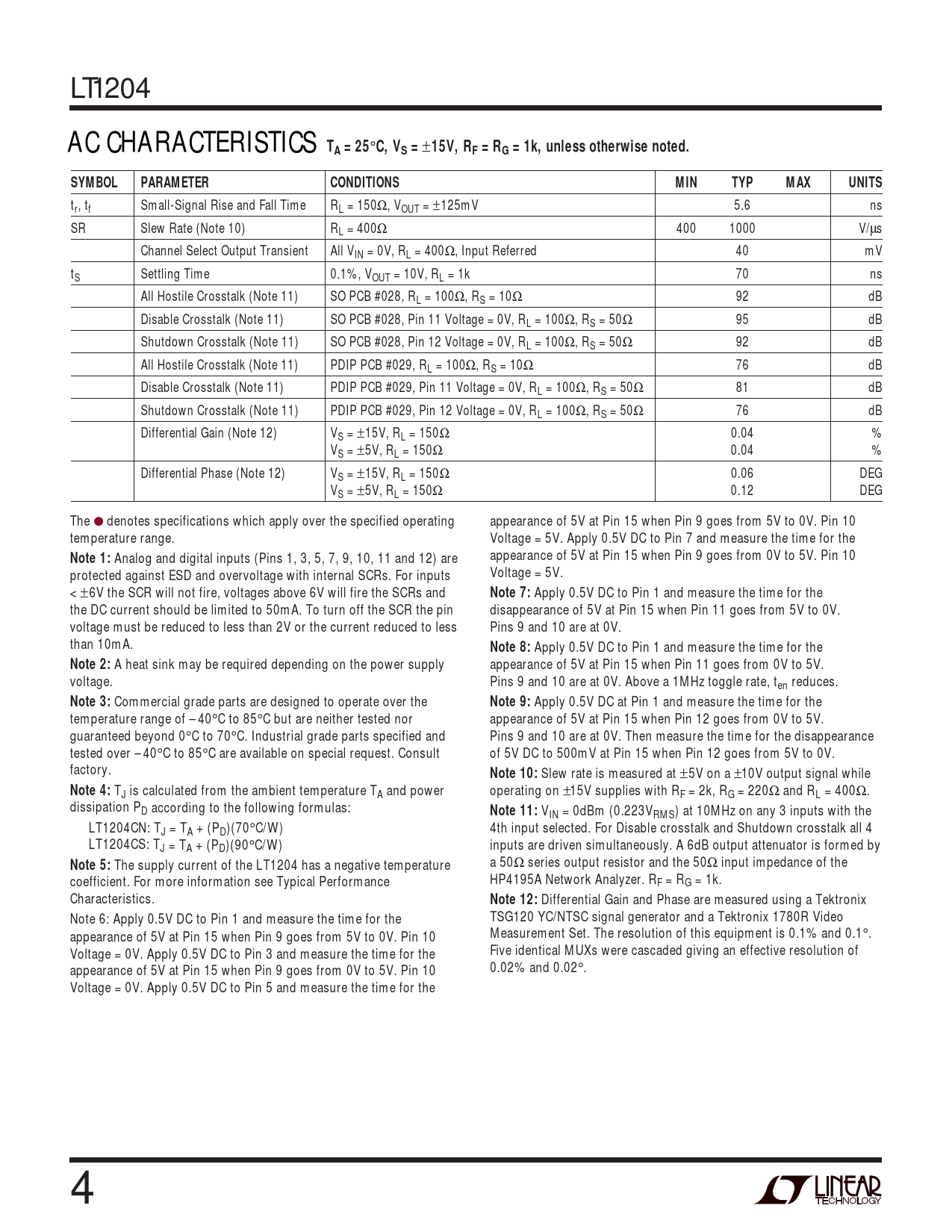

AC CHARACTERISTICS TA = 25. C, VS =. 15V, RF = RG = 1k, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
LT1204
AC CHARACTERISTICS TA = 25
°
C, VS =
±
15V, RF = RG = 1k, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tr, tf Small-Signal Rise and Fall Time RL = 150Ω, VOUT = ±125mV 5.6 ns SR Slew Rate (Note 10) RL = 400Ω 400 1000 V/µs Channel Select Output Transient All VIN = 0V, RL = 400Ω, Input Referred 40 mV tS Settling Time 0.1%, VOUT = 10V, RL = 1k 70 ns All Hostile Crosstalk (Note 11) SO PCB #028, RL = 100Ω, RS = 10Ω 92 dB Disable Crosstalk (Note 11) SO PCB #028, Pin 11 Voltage = 0V, RL = 100Ω, RS = 50Ω 95 dB Shutdown Crosstalk (Note 11) SO PCB #028, Pin 12 Voltage = 0V, RL = 100Ω, RS = 50Ω 92 dB All Hostile Crosstalk (Note 11) PDIP PCB #029, RL = 100Ω, RS = 10Ω 76 dB Disable Crosstalk (Note 11) PDIP PCB #029, Pin 11 Voltage = 0V, RL = 100Ω, RS = 50Ω 81 dB Shutdown Crosstalk (Note 11) PDIP PCB #029, Pin 12 Voltage = 0V, RL = 100Ω, RS = 50Ω 76 dB Differential Gain (Note 12) VS = ±15V, RL = 150Ω 0.04 % VS = ±5V, RL = 150Ω 0.04 % Differential Phase (Note 12) VS = ±15V, RL = 150Ω 0.06 DEG VS = ±5V, RL = 150Ω 0.12 DEG The ● denotes specifications which apply over the specified operating appearance of 5V at Pin 15 when Pin 9 goes from 5V to 0V. Pin 10 temperature range. Voltage = 5V. Apply 0.5V DC to Pin 7 and measure the time for the
