Datasheet LT1630, LT1631 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 30MHz, 10V/µs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps |
| Pages / Page | 20 / 9 — The. denotes the specifications which apply over the full operating |
| File Format / Size | PDF / 367 Kb |
| Document Language | English |
The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document

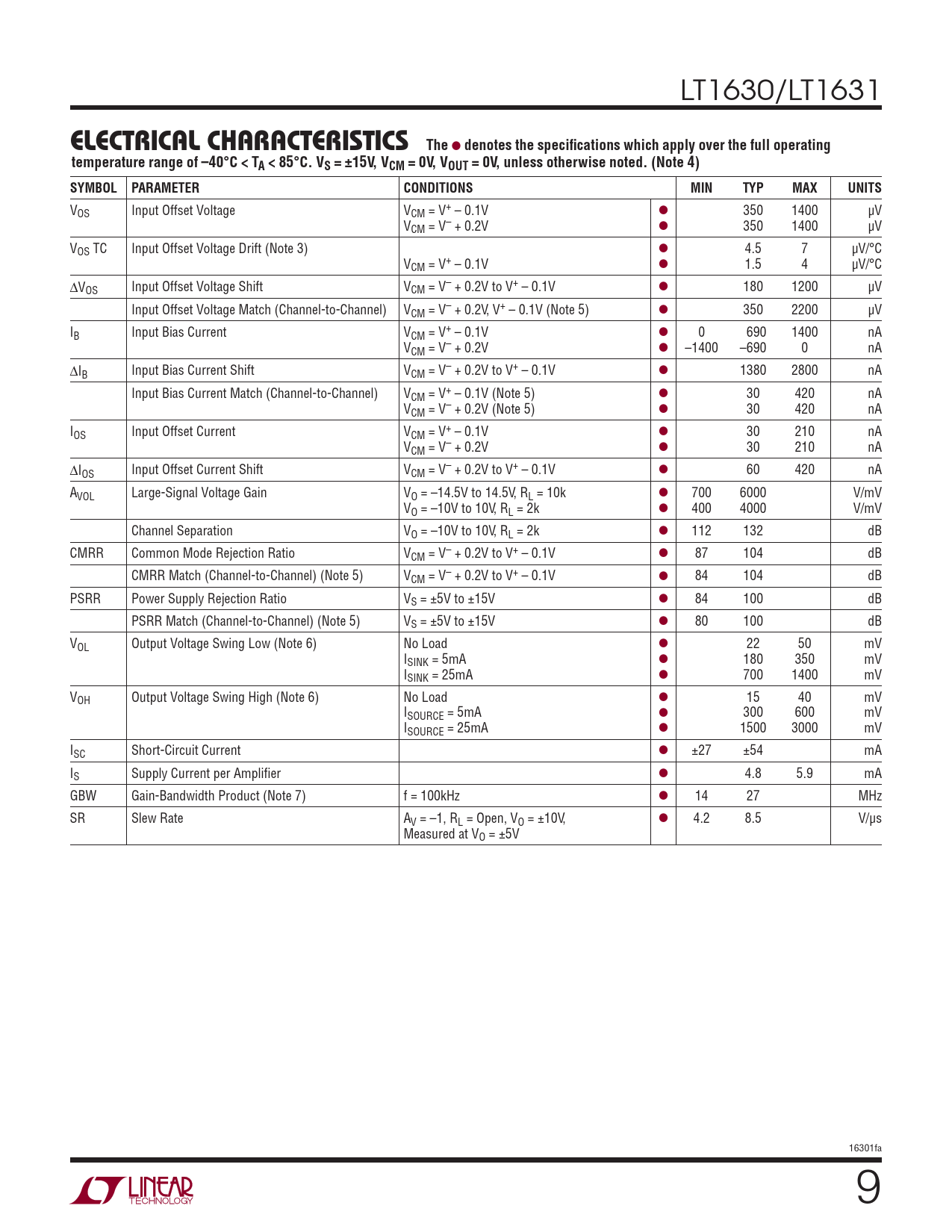

LT1630/LT1631 e
lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range of –40°C < TA < 85°C. VS = ±15V, VCM = 0V, VOUT = 0V, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V l 350 1400 µV VCM = V– + 0.2V l 350 1400 µV VOS TC Input Offset Voltage Drift (Note 3) l 4.5 7 µV/°C VCM = V+ – 0.1V l 1.5 4 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V l 180 1200 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) l 350 2200 µV IB Input Bias Current VCM = V+ – 0.1V l 0 690 1400 nA VCM = V– + 0.2V l –1400 –690 0 nA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V l 1380 2800 nA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) l 30 420 nA VCM = V– + 0.2V (Note 5) l 30 420 nA IOS Input Offset Current VCM = V+ – 0.1V l 30 210 nA VCM = V– + 0.2V l 30 210 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V l 60 420 nA AVOL Large-Signal Voltage Gain VO = –14.5V to 14.5V, RL = 10k l 700 6000 V/mV VO = –10V to 10V, RL = 2k l 400 4000 V/mV Channel Separation VO = –10V to 10V, RL = 2k l 112 132 dB CMRR Common Mode Rejection Ratio VCM = V– + 0.2V to V+ – 0.1V l 87 104 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– + 0.2V to V+ – 0.1V l 84 104 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V l 84 100 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V l 80 100 dB VOL Output Voltage Swing Low (Note 6) No Load l 22 50 mV ISINK = 5mA l 180 350 mV ISINK = 25mA l 700 1400 mV VOH Output Voltage Swing High (Note 6) No Load l 15 40 mV ISOURCE = 5mA l 300 600 mV ISOURCE = 25mA l 1500 3000 mV ISC Short-Circuit Current l ±27 ±54 mA IS Supply Current per Amplifier l 4.8 5.9 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz l 14 27 MHz SR Slew Rate AV = –1, RL = Open, VO = ±10V, l 4.2 8.5 V/µs Measured at VO = ±5V 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
